IMPORTANT SHIPPING INFORMATION
This is a heavy item that must be delivered by truck. The delivery charge calculated at checkout applies to town and city CBD business addresses only (and local freight depot if applicable). It does not cover working from home business addresses. Check with us if you are unsure if your address qualifies or want a quote for delivery to a home or rural delivery address.

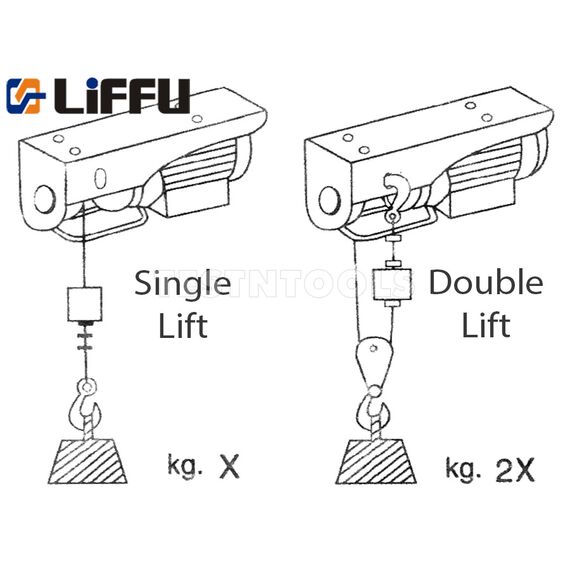

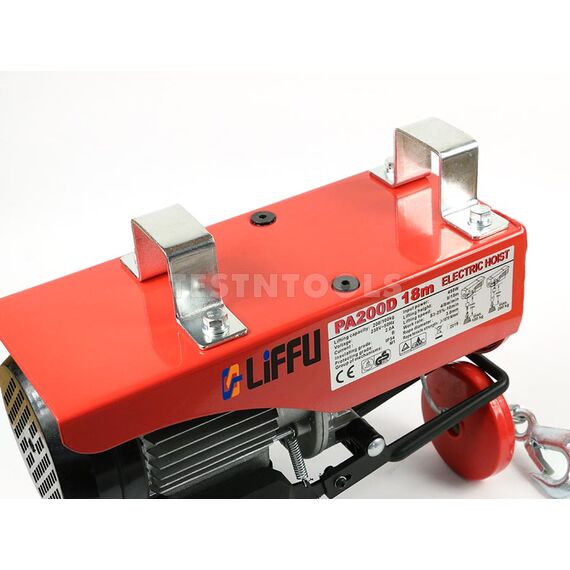

This hoist (which can also be mounted as a winch) bolts onto an overhead i-beam or gantry trolley making it easy to lift anything you want. Plug it into an ordinary power point and away you go. Maximum lift is achieved when the rope is doubled over with the included pulley hook.

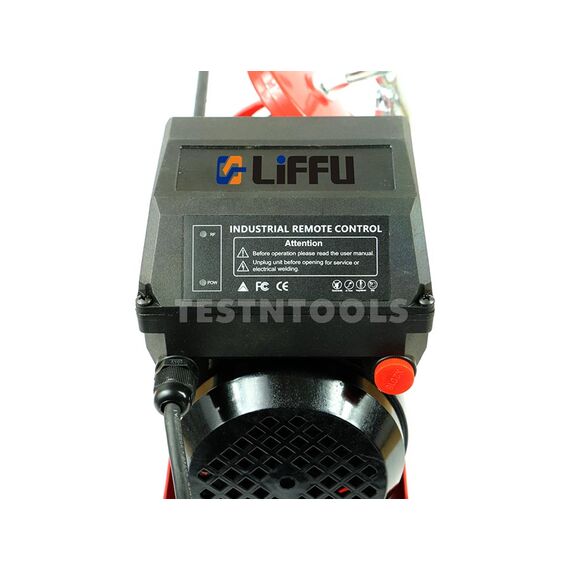

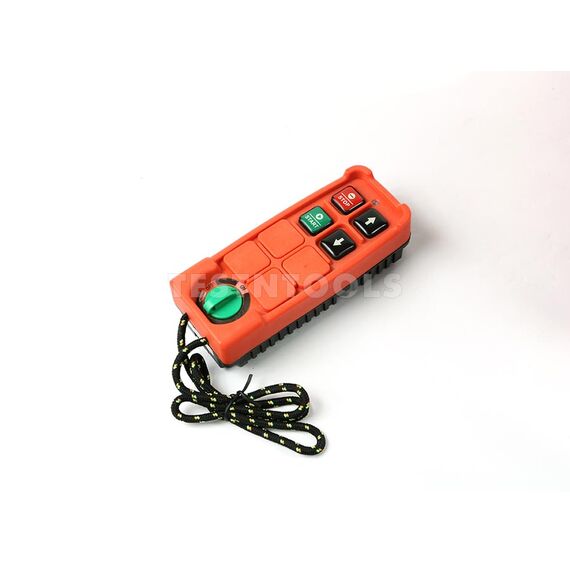

The wireless remote control allows operation from a safe distance without the inconvenience of a pendant and cable. This is a big advantage and cost-saving in many circumstances.
FEATURES
Up/down switch
Emergency stop
Thermal overload protection
Down overrun protection
Electromagnetic brake
Hook ballast
SPECIFICATIONS
Load 500Kg single rope, 1000Kg double rope
Height 18m single rope, 9m double rope
Speed 8m/min single rope, 4m/min double rope
Single-phase 230V 1600W
Brackets fit 60mm box section
Size 480L x 170W x 270H mm^
Weight 31.8Kg^^
STANDARDS
Australian/New Zealand Standard AS/NZS 1418.2
International CE certification, GS, EMC, and RoHS
INCLUDES
Electric hoist
Wireless remote control and 2 x AA batteries
Pulley hook for double rope operation
Mounting brackets and bolts
Manual
NOTES
^ Size of hoist only without mounting brackets or hook.
^^ Total weight including brackets, pulley hook, remote control, and batteries
What's the difference between and HOIST and a WINCH?
HOISTS are for LIFTING - A 200Kg hoist could probably pull a 1000Kg load
WINCHES are for PULLING - A 1000Kg winch could probably only lift 100Kg
Pulling is easier than lifting and a lifted load needs to be stopped with a brake.
