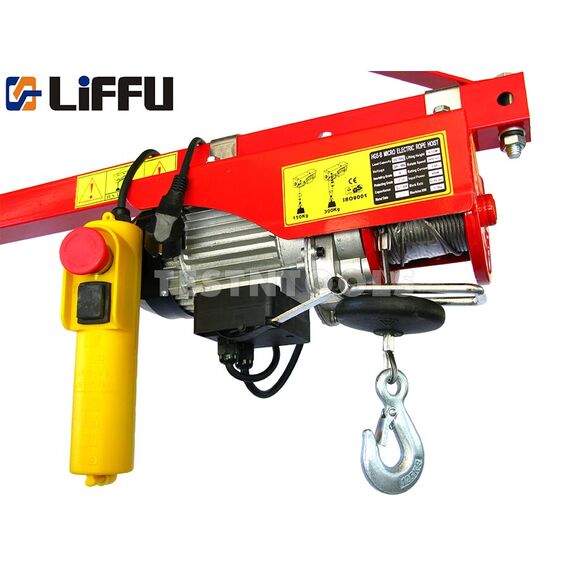

This hoist (which can also pull like a winch) bolts onto an overhead i-beam, box section steel, or Liffu gantry trolley to make easy work of any lifting jobs you have around the workshop.
The maximum lifting capacity is achieved when the rope is doubled over with the included pulley hook. In a single rope configuration, the capacity is halved and the speed is doubled. The electromagnetic brake is released when the up/down switch is pressed making it fail-safe if power is lost.
FEATURES
> Up/down switch
> Emergency stop
> Up/down overrun protection
> Thermal overload protection
> Electromagnetic brake
> Uses normal power point
> Hook ballast
SPECIFICATIONS
Capacity 300Kg single rope, 600Kg double rope
Lifting height 18m single, 9m double
Lifting speed 8m/min single, 4m/min double
Single phase 230V 1050W
Pendant cable length 1.6m
Size 390L x 150W x 160H mm
Weight 17Kg
STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
CE, GS, EMC, and RoHS
INCLUDES
Electric hoist
Brackets and bolts
Pulley hook for double rope operation
User manual
What's the difference between and HOIST and a WINCH?
HOISTS are for LIFTING - A 200Kg hoist could probably pull a 1000Kg load
WINCHES are for PULLING - A 1000Kg winch could probably only lift 100Kg
Pulling is easier than lifting and a lifted load needs to be stopped with a brake.
