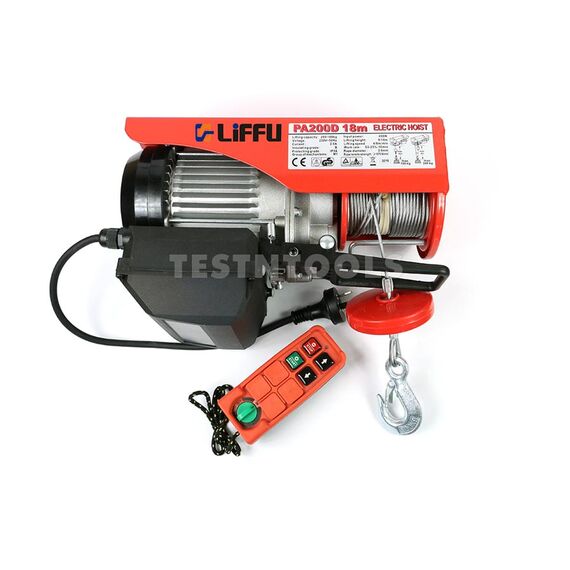

This hoist (which can also pull like a winch) bolts onto an overhead i-beam, box section steel, or Liffu gantry trolley to make easy work of any lifting jobs you have around the workshop.

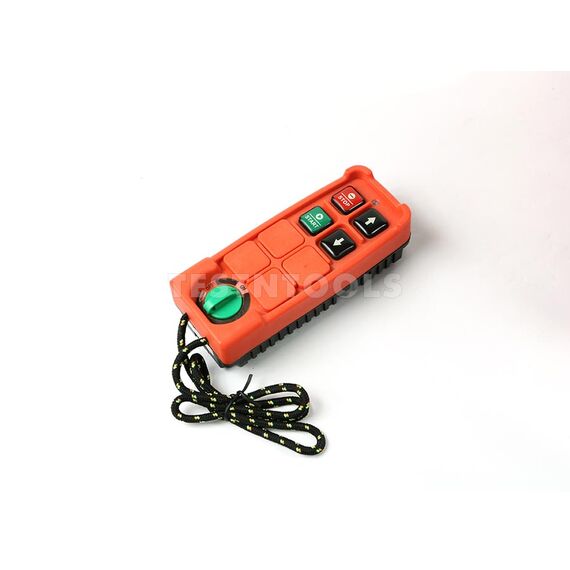

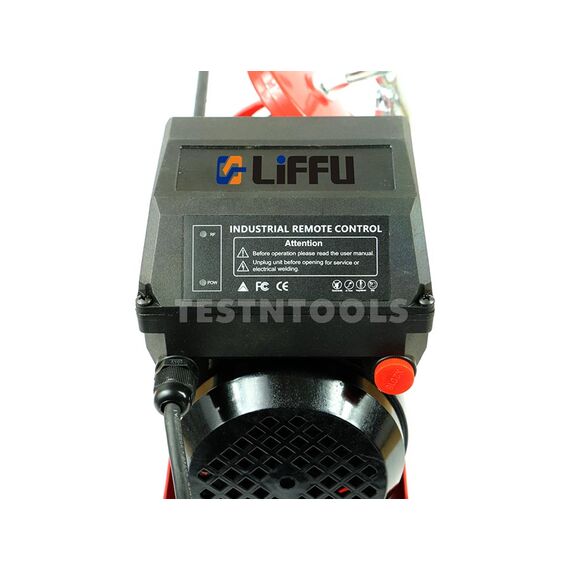

The wireless remote control allows operation from a safe distance without being restricted by a pendant cable. The remote can be locked away to prevent unauthorised use.

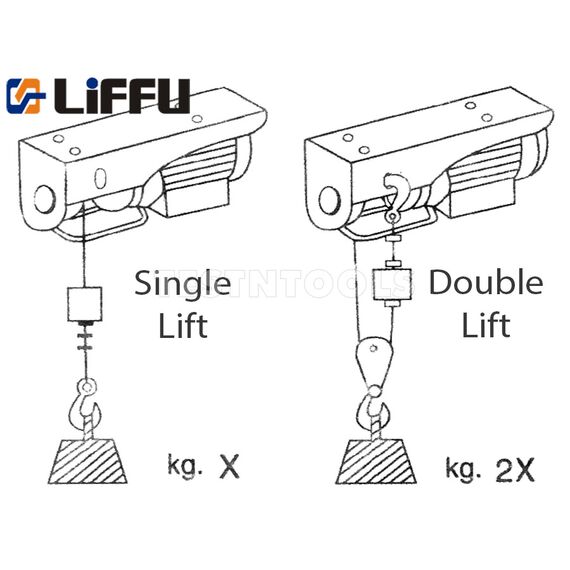

The maximum lifting capacity is achieved when the rope is doubled over with the included pulley hook. In a single rope configuration, the capacity is halved and the speed is doubled. The electromagnetic brake is released when the up/down switch is pressed making it fail-safe if power is lost.
FEATURES
> Up/down switch
> Emergency stop
> Thermal overload protection
> Up/down overrun protection
> Electromagnetic brake
> Hook ballast
SPECIFICATIONS
Capacity 400Kg single rope, 800Kg double rope
Lifting height 18m single, 9m double
Lifting speed 8m/min single, 4m/min double
Single phase 230V 1350W

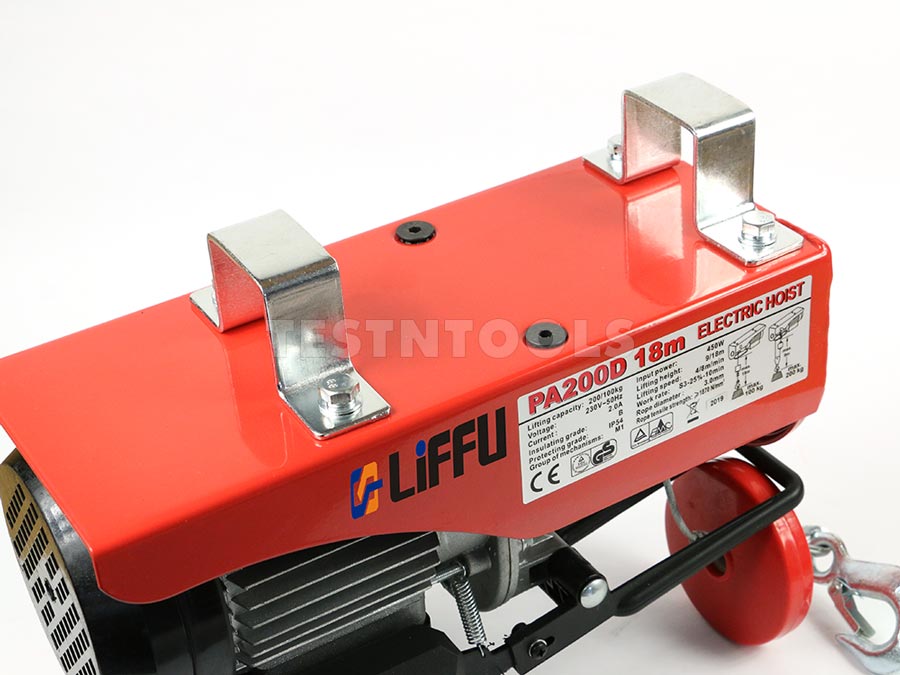

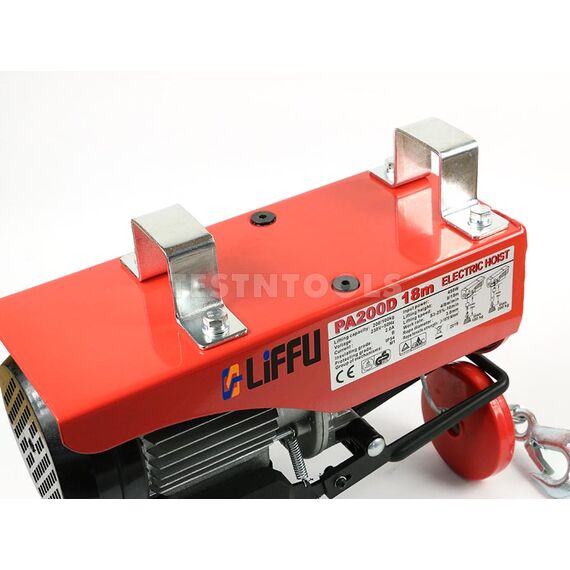

Brackets fit 45mm box section
Size 415L x 150W x 228H mm^
Weight 19.6Kg^^
STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
CE, GS, EMC, and RoHS
INCLUDES
Electric hoist
Wireless remote control and 2 x AA batteries
Pulley hook for double rope operation
​Mounting brackets and bolts
User manual
NOTES
^ Size of hoist without mounting brackets or hook.
^^ Total weight including brackets, pulley hook, remote control, and batteries.
What's the difference between and HOIST and a WINCH?
HOISTS are for LIFTING - A 200Kg hoist could probably pull a 1000Kg load
WINCHES are for PULLING - A 1000Kg winch could probably only lift 100Kg
Pulling is easier than lifting and a lifted load needs to be stopped with a brake.
