SHIPPING TO HOME AND RURAL DELIVERY ADDRESSES
This item is over 25Kg so it must be sent by Transport (i.e. collected and delivered by truck). The standard delivery charge calculated at checkout only covers delivery to town and city CBD business addresses (and if applicable the local freight depot). Unfortunately, it does not cover working-from-home business addresses. If you are unsure if your address qualifies for the standard shipping rate or want to have this item delivered to a home or rural address please contact us for a quote before ordering.
This hoist hooks onto a standard-size scaffold tube (up to 50mm O.D.) making it a good option for builders, roofers, and brick layers to get your materials up to where you're working. It will save you a lot of time and effort when working at heights.
Just plug it into an ordinary power point and away you go. The electromagnetic brake is released only when the up/down switch is operated making it fail-safe in the event of a power failure.
FEATURES
> Up/down switch
> Emergency stop
> Up/down overrun protection
> Thermal overload protection
> Electromagnetic brake
> Uses normal power point
> Swivel load hook
SPECIFICATIONS
Capacity 250Kg
Lifting height 20m
Lifting speed 12m/min
Wire rope diameter 4.2mm
Rope breaking strain 1300Kg
Hooks on 50mm max O.D. tube
Single phase 230VAC 1200W
Duty cycle 40% 20 minutes
Power cable 0.7m
Pendant cable 5m
Weight 30Kg
STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
CE, GS, EMC, and RoHS

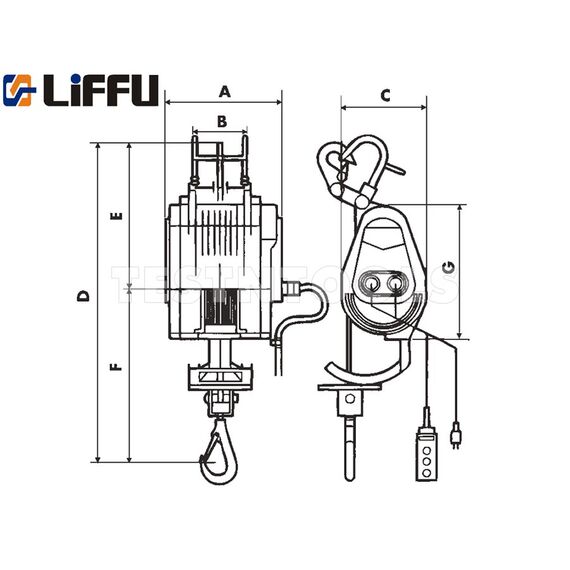

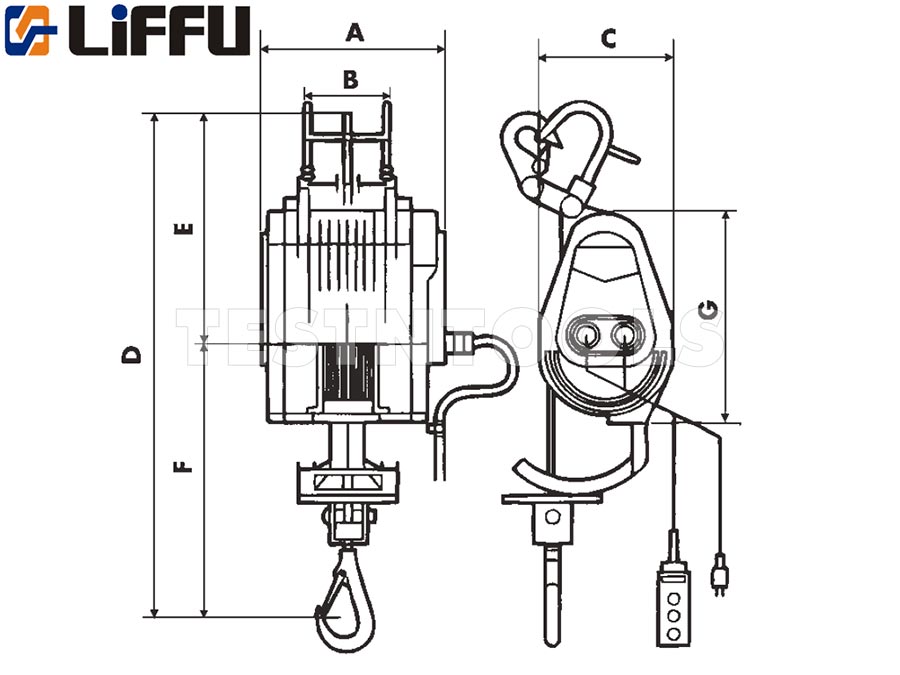

Dimensions (see picture)
A - 244mm
B - 115mm
C - 182mm
D - 640mm
E - 280mm
F - 360mm
G - 285mm
