This is a combined hoist and winch so it can be used for both lifting and pulling applications. It's compact and weighs only 6.9 kg so it's very portable. No special mounting is required, just hook onto a mounting point that can handle the load.

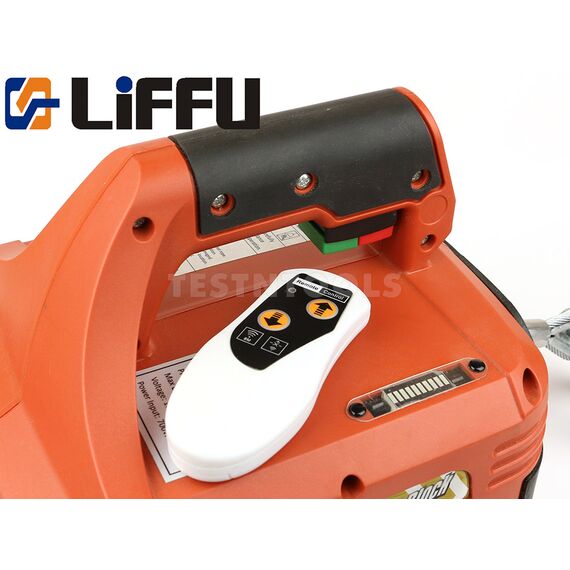

The infrared remote control allows operation from a safe distance without being restricted by the pendant cable. The remote can be locked away to prevent unauthorised use.
The self-locking gear train with dynamic braking makes it fail-safe in the event of a power failure.
FEATURES
> On/off main power switch
> Up/down switches on the hoist
> Up/down infrared remote control
> Motor overload protection
> Thermal overload protection
> LED load and overload indicator
> Drop forged alloy steel safety hooks
> Cable strain relief
> Swivel top hook
SPECIFICATIONS
Lifting capacity 250Kg
Pulling capacity 500Kg
Lifting height 8m
Lifting speed 5m/min
Wire rope diameter 4.8mm
Hook to hook minimum 480mm
Single phase 230V 1200W
Infrared remote 2 x AAA's not supplied
Body size 260L x 195W x 210H mm
Weight 6.9Kg
STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
CE, GS, EMC, and RoHS
INCLUDES
Portable electric hoist
Infrared remote control
User manual
NOTES
> There are no limit switches and there is some motor overrun once the button is released. Release the button when the load hook is at least 100mm from the rope entry to avoid damage to the hoist.
> The infrared remote will operate other hoists of the same model. If using multiple hoists only power on one at a time.
