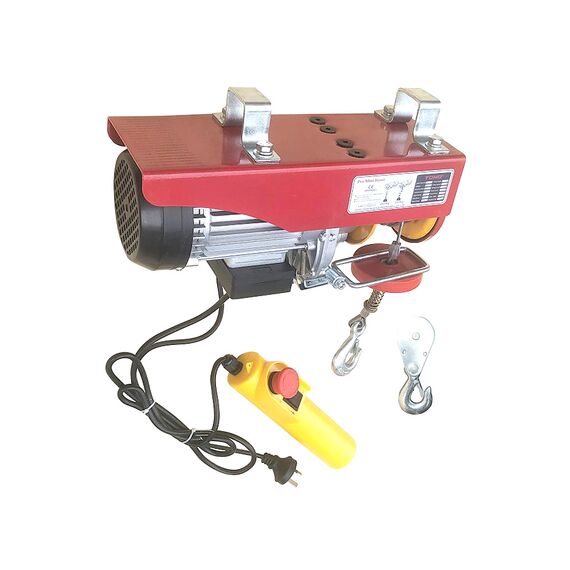

Toho Electric Hoist 230V Wire Rope 12m 500Kg TPMEH500

TPMEH500
$37900
In stock
Shipping Information
Find similar
Description

This hoist (can also be mounted as a winch) bolts onto an overhead i-beam or gantry trolley making it easy to lift anything you want. Plug into an ordinary power point and away you go. Maximum lift is achieved when the rope is doubled over with the included pulley hook.

FEATURES
> Up/down switch
> Emergency stop
> Automatic brake/cut off
> Anti-heat device on motor
> Continuous rated
> 3 times longer than a normal mini hoist

SPECIFICATIONS
Load 250Kg single rope, 500Kg double rope
Motor 900W
Height 12m single, 6m double
Speed 10m/min single, 5m/min double
Pendant cable 1.5m (extendable)
Wire rope 4mm diameter
IP rating IP45 hoist, IP45 corded control

INCLUDES
Electric hoist
Brackets and bolts
Pulley hook for double rope
Manual

STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
International CE certification, GS, EMC and RoHS


What's the difference between and HOIST and a WINCH?

HOISTS are for LIFTING - A 200Kg hoist could probably pull a 1000Kg load
WINCHES are for PULLING - A 1000Kg winch could probably only lift 100Kg

Pulling is easier than lifting and a lifted load needs to be stopped with a brake.
