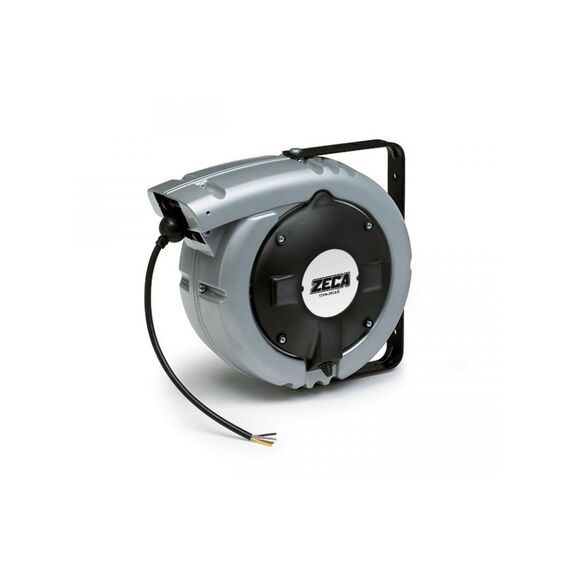

Zeca cable reels offer a lightweight and secure yet cost-effective solution for powering moving machinery. These reels are specifically designed for both indoor and outdoor installations and require minimal assembly efforts. The reels are equipped with a spring-loaded mechanism, enabling the cable to be pulled out and automatically retract as the machine moves back and forth.
All cable reels are supplied with a predisposition for cable-stop device off. It can be easily inserted.
FEATURES
> Shock-resistant plastic external case
> Cable roller guide
> Double earth contact
> IP42 rated
> Ratchet stop device every 50 cm
> Slipring with brass rings and brushes
> Certified EN61242, EN60335-1, 2014/35/UE, 2006/42/CE, 2011/65/UE
SPECIFICATIONS
> Current 10 amp
> Number of conductors 4 G
> Conductors section 2.5mm2
> Cable length 5.5m
> Cable diameter 11
> Working temperature -5°C/+50°C
OPTIONAL
> Conversion kit from XF in XL
> Optional device to make the bracket fastened
Model 5821XF
NOTE:
> Please contact us if you require different configurations.
> A large range of cable lengths is available upon request.
