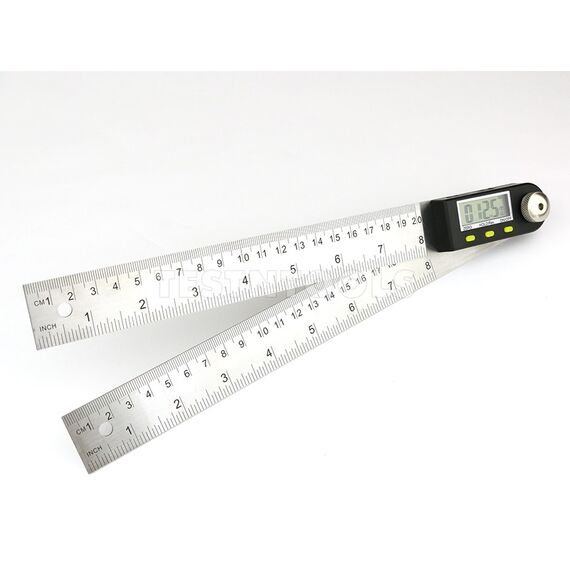

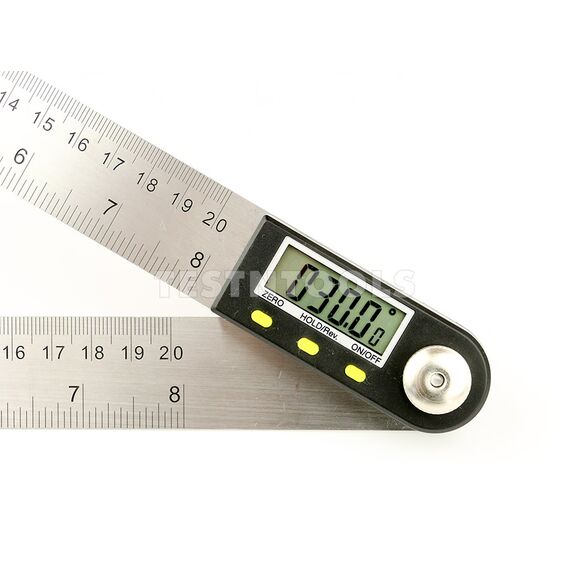

This is a 2 in 1 folding rule with a digital angle readout. Measure both the angle and length at the same time with a clear display and bold markings in both Metric and Imperial on the rules. It's the best tool you can imagine when 'making' or 'taking' angles.
The blades slide smoothly past each other (there's no stopping point) measuring up to 360°. The knurled lock nut holds the blades at the desired angle.
Use for setting saw blade angles (good for table saw, circular saw, band saw), compound slides on lathes, tilting milling tables, tilting vises, measuring wall angles for cabinetry, picture frames, roll cages, etc.
FEATURES
Large LCD display
Flip display function
Hold reading function
Metric and imperial rule markings
Zero button for relative angles
Hook hanging hole
Auto power off
SPECIFICATIONS
Range 0-360 degrees
Resolution 0.05 degrees
Accuracy 0.3 degrees
Ruler markings 0-200mm
Blade width 28mm
Closed length 280mm
Battery powered 3V CR2032 (not supplied)
Dimensions 280L x 28W x 25H mm
