FEATURES
- Absolute measurement system. No need to reset the origin.
- Can be used in workshop conditions exposed to coolant, dust and oil
- Easy to use with advanced ergonomic design uses only 1 button.
- Large and clear LCD readout
- Metric and Inch reading
- The automatic power-on/off function shuts down the LCD display after 20 minutes inactivity. Power is restored to the display when the slider is moved.
- Can measure outside and inside dimensions, depth and steps
- Can be integrated into statistical process control and measurement system.
- Error message is displayed if error in calculation is found and mesurement is stopped.
- SR44 Battery (938882) should be used with this model
- TUVRheinland Certified ID 2011207400
SPECIFICATIONS
Range: 0-8"
Accuracy: ±0.001"/±0.02mm
Resolution: 0.0005"/0.01mm
Repeatability: 0.0005"/0.01mm
Quantizing Error: Not including ±1 count
Scale type: Absolute electromagnetic induction linear encoder
Battery life: Approximately 5 years under normal use
IP67 protection level
Thumb roller
WHAT YOU GET

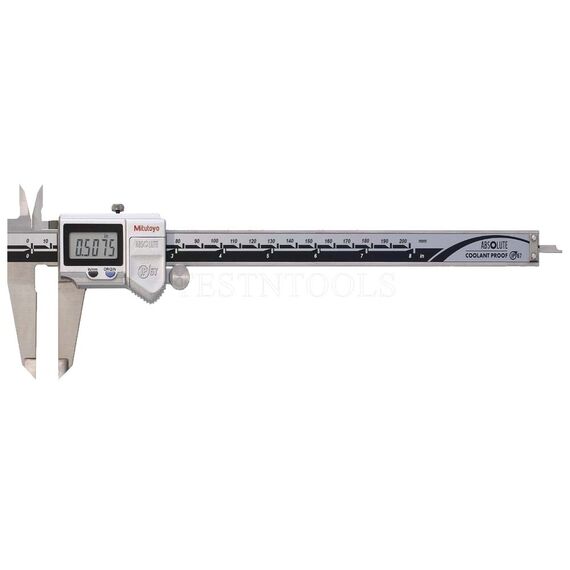

Mitutoyo Digimatic Calipers 200mm 8" 0.01mm 0.0005" IP67 Coolant Proof 500-753-20
Inspection Certificate
