FEATURES
- Absolute measurement system. After power is turned ON, measurement can be started without zero-setting if origin-setting was previously performed.
- The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button will also allow return to the absolute (ABS) mode and display of the true position from the origin (usually jaws closed point)
- New ergonomic design with finger rest.
- Large and clear LCD readout
- 18,000 hours battery life
- Can measure outside and inside dimensions, depth and steps
- Smooth slider movement makes for comfortable operation
- Allows integration into statistical process control and measurement system.
- SR44 Battery (938882) should be used with this model
SPECIFICATIONS
Range: 0-6"
Accuracy: ±0.001"
Resolution: 0.0005"/0.01mm
Repeatability: 0.01mm
Battery life: Approximately 5 years under normal use
Thumb roller
Depth bar: Blade
WHAT YOU GET

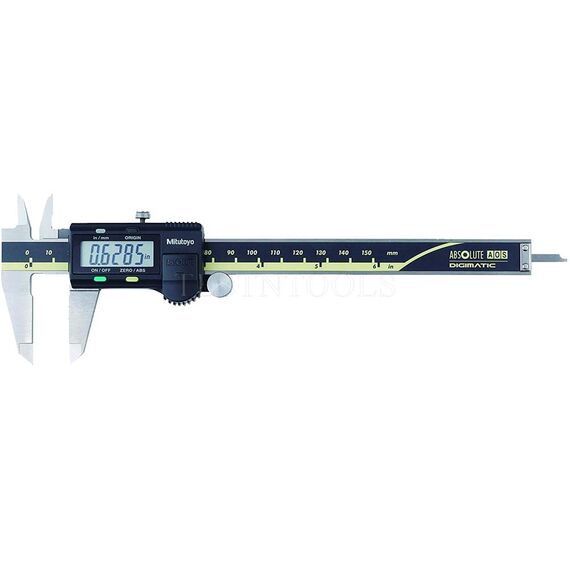

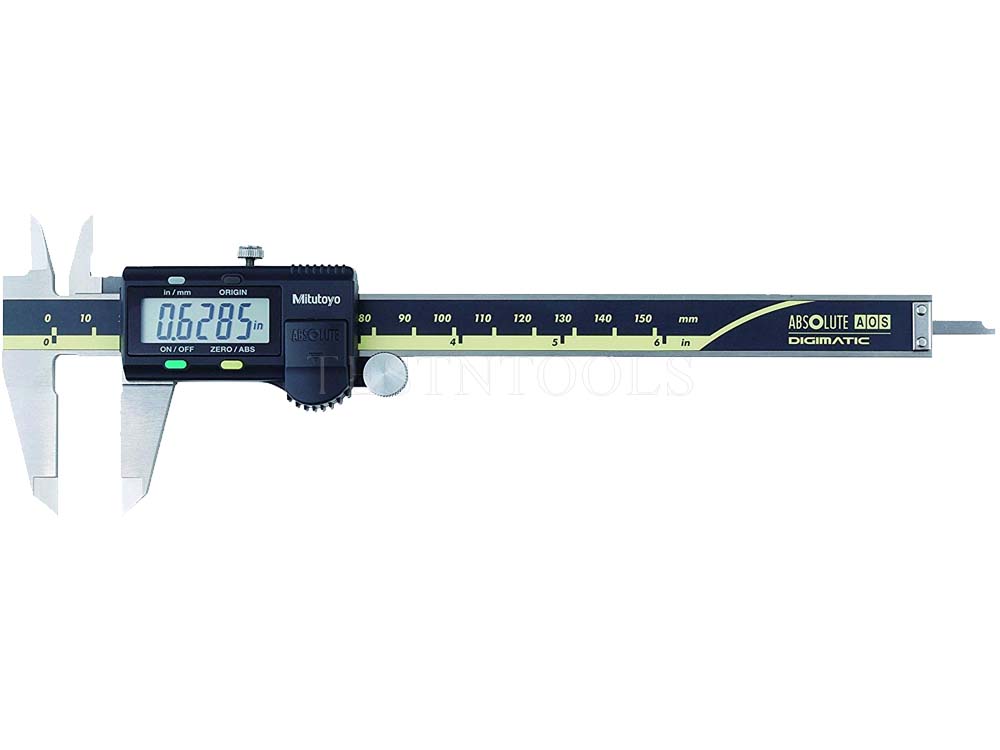

Mitutoyo DigimaticCalipers 150mm 6" 0.01mm 0.0005" With Data Output 500-171-30
Inspection Certificate
