FEATURES
- Keep track of the origin point once set for the entire life of the battery.
- Optimal tool for measuring holes, narrow grooves and step measurement
- Bottom surface of the base is hardened, ground and lapped for highest degree of flatness.
- Wide probing range is available with the supplied extension rod.
- Easy-to-read dial effectively prevents misreading
- Allows integration into statistical process control and measurement systems
SPECIFICATIONS
Range 0-200mm
Graduation 0.01mm
Stroke 12.7mm
Accuracy ±20?m
Measuring force 1.5N
Base 63.5mm x 16mm
Flatness 5?m
LCD display
WHAT YOU GET

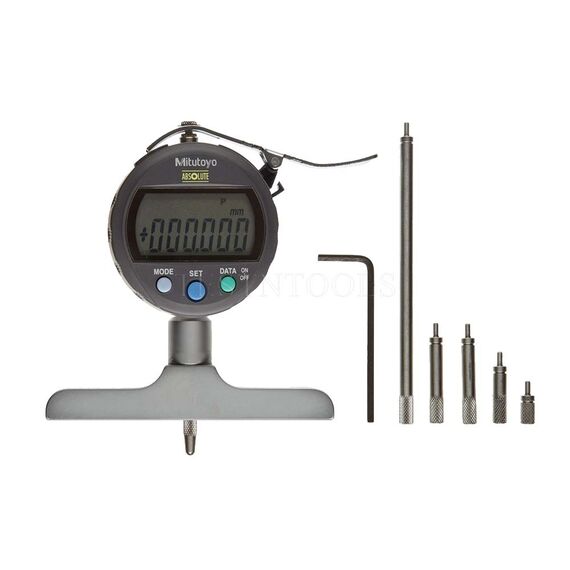

Mitutoyo Digimatic Depth Gauge 0-200mm 0.01mm 547-211
