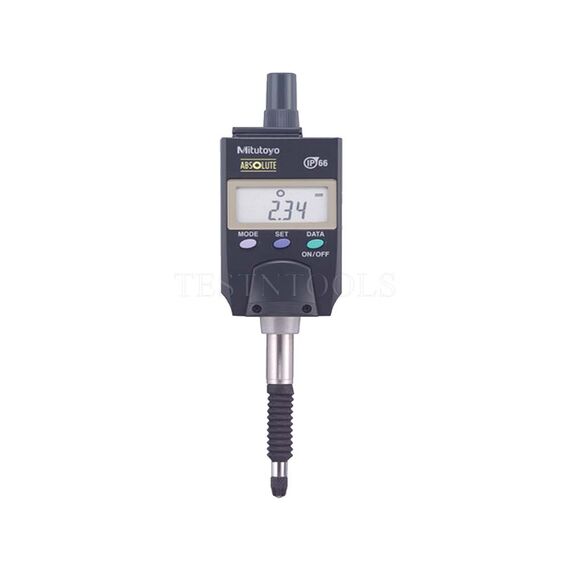

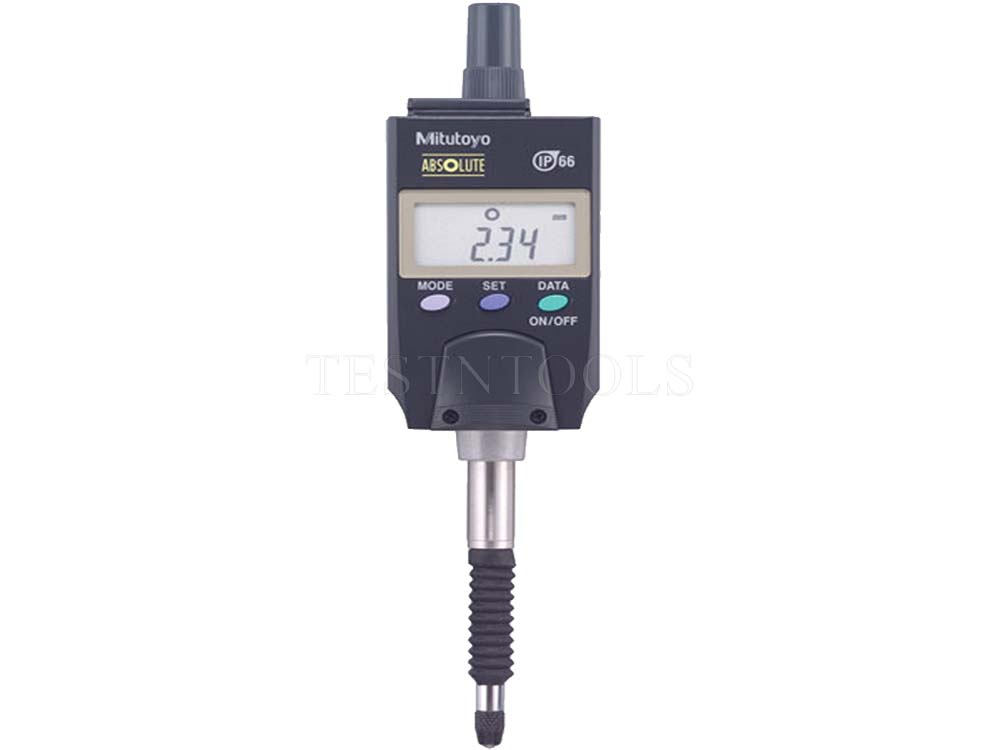

Mitutoyo Digimatic Indicator Slim Type 0.5" 0.01mm 0.0005" ID-N 543-571

FEATURES
- The ABS (Absolute) sensor restores the last origin position automatically when the indicator is turned on.
- High reliability by eliminating over speed errors.
- A 5mm-stroke plunger with a higher degree of accuracy
- Equipped with data output port that enables incorporation into measurement networking and statistical process control systems.
- Improvement in workability with the LCD readout-rotation function.
- Built in hold/preset function.
- Built-in tolerance judgment function.
- Rated to IP66 water and dust proofing standard and oil resistance improved.
- SR44 Battery (938882) should be used with this model

SPECIFICATIONS
Range 0.5"
Resolution 0.0005"/0.01mm
Accuracy 0.001"
Repeatability 0.001mm/0.01mm
Measuring Force: 2.5N or less
6-digit LCD display and sign
Scale type: Absolute electrostatic linear encoder
Dust/Water protection level IP66
Body width 35mm
ASME/ANSI/AGD Type

WHAT YOU GET
Mitutoyo Digimatic Indicator Slim Type 0.5" 0.01mm 0.0005" ID-N 543-571


Note:
- Dimensions of the inch (ANSI/AGD Type) dial indicator partly differ from those of the metric (ISO/JIS type) indicator.
- Inch (ANSI/AGD Type) dial indicators are provided with a stem of 3/8" dia. and #4-48UNF thread mount for the contact point.
