Description
Your work as an expert requires safe testing; therefore, you should not make any compromises concerning safety.

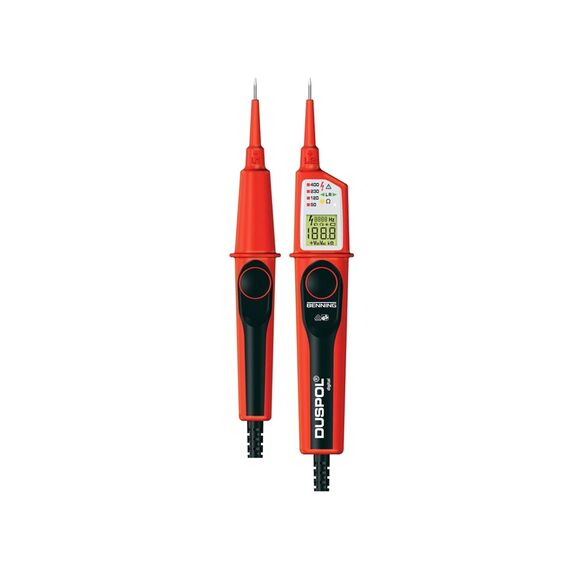

The DUSPOL Voltage Tester is a tester with the VDE mark of conformity, equipped with a direct display system without loading the test point. A load circuit can be connected via a push-button that suppresses inductive and capacitive reactive voltages, resulting in a clear distinction between high-energy and low-energy electric circuits.
FEATURES
> Voltage testing up to 1000V AC TRUE RMS/1200 V DC
> TRUE RMS measuring method
> Low-volt range: 1.0V to 11.9V
> Frequency indication up to 1000Hz
> Resistance measurement up to 300 kΩ
> Conducting-state voltage measurement of diodes
> Automatic LC display illumination by means of a light sensor
> CAT IV 600 V, CAT III 1000 V
> Voltage & continuity probe tester
> Intentional tripping of a 30 mA RCD
> Safe voltage testing up to 1 - 1000 V AC/ DC
> Vibrating alarm for safe voltage detection
> Phase sequence test by means of green LED (left/right)
> High resistance voltage test without push-button activity
> Acoustic continuity check via buzzer and yellow LED
> Measuring point illumination by means of white high-power LED
> LED step indicator from 50V even in case of empty batteries
> Detector for non-contact localization of cable breaks on exposed and live lines
> Compliant with the current DIN EN 61243-3 (VDE 0682-401) standard

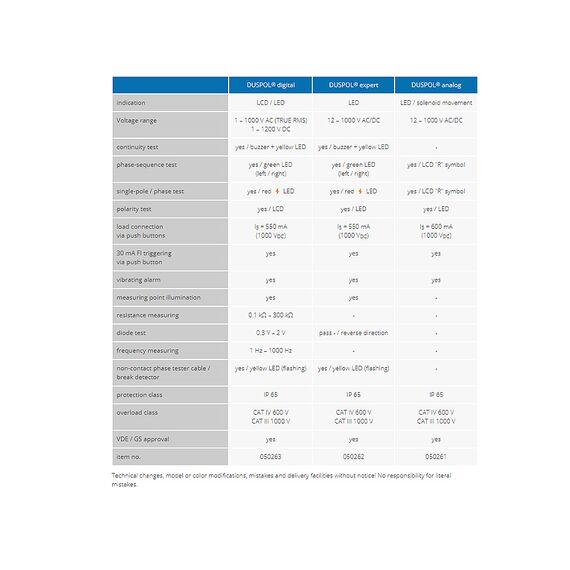

SPECIFICATIONS
Voltage range: 1-1000V AC (TRUE RMS), 1-1200V DC
Continuity test: yes/buzzer + yellow LED
Phase-sequence test: yes/green LED (left / right)
Single-pole/phase test: yes/red LED
Polarity test: yes/LCD
Load connection via push buttons: IS = 550 mA (1000 VDC)
30 mA FI triggering via push button: yes
Resistance measuring 0.1kΩ - 300kΩ
Diode test: 0.3V - 2V
Frequency measuring 1Hz - 1000Hz
Non-contact phase tester cable/break detector: yes/yellow LED (flashing)
Protection class: IP 65
Overload class: CAT IV 600V, CAT III 1000V
Measuring point illumination
Vibrating alarm

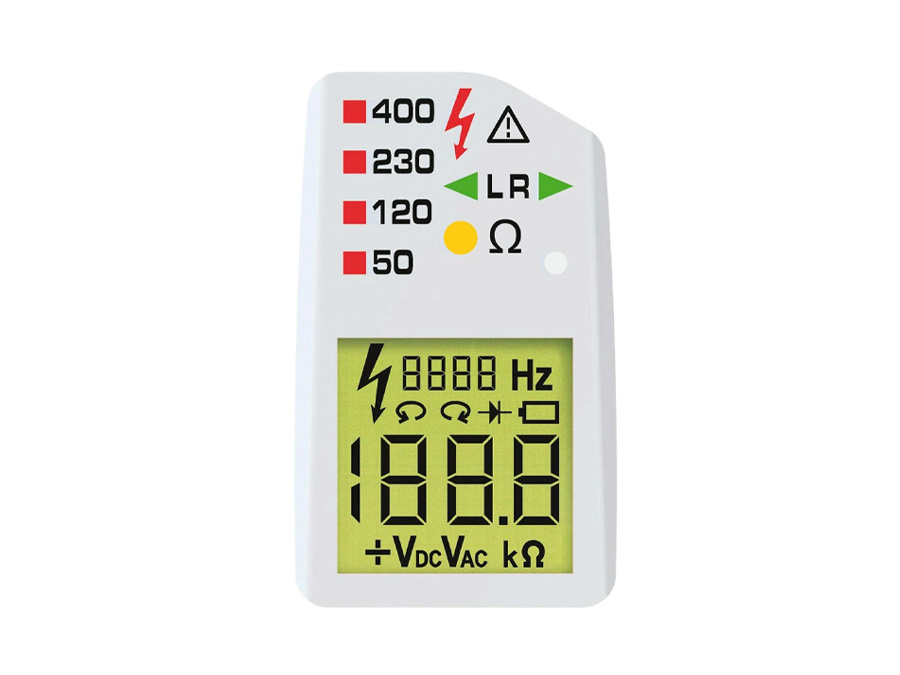

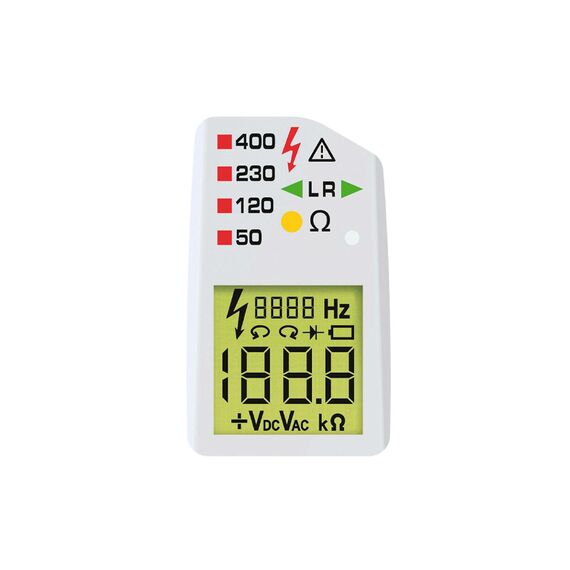

LCD/LED illuminated indication
VDE/GS approved
