Description
Your work as an expert requires safe testing; therefore, you should not make any compromises concerning safety.
The DUSPOL Voltage Tester is a tester with the VDE mark of conformity, equipped with a direct display system without loading the test point. A load circuit can be connected via a push-button that suppresses inductive and capacitive reactive voltages, resulting in a clear distinction between high-energy and low-energy electric circuits.
FEATURES
> CAT IV 600 V, CAT III 1000 V
> Voltage & continuity probe tester
> Intentional tripping of a 30 mA RCD
> Safe voltage testing up to 1 - 1000 V AC/ DC
> Vibrating alarm for safe voltage detection
> Phase sequence test by means of green LED (left/right)
> High resistance voltage test without push-button activity
> Acoustic continuity check via buzzer and yellow LED
> Measuring point illumination by means of white high-power LED

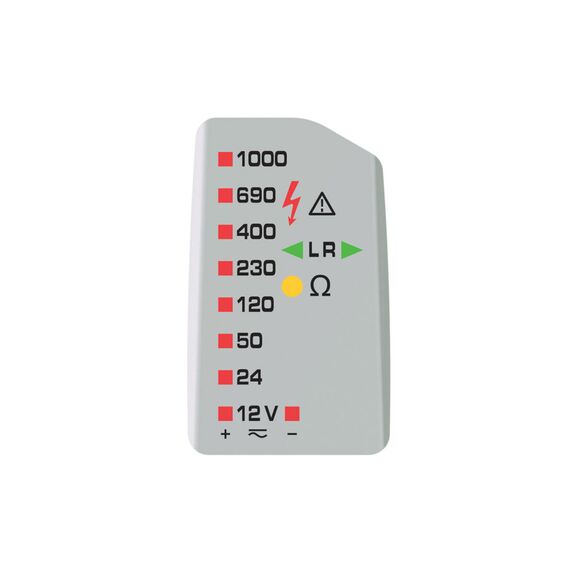

> LED step indicator from 50V even in case of empty batteries
> Detector for non-contact localization of cable breaks on exposed and live lines
> Compliant with the current DIN EN 61243-3 (VDE 0682-401) standard

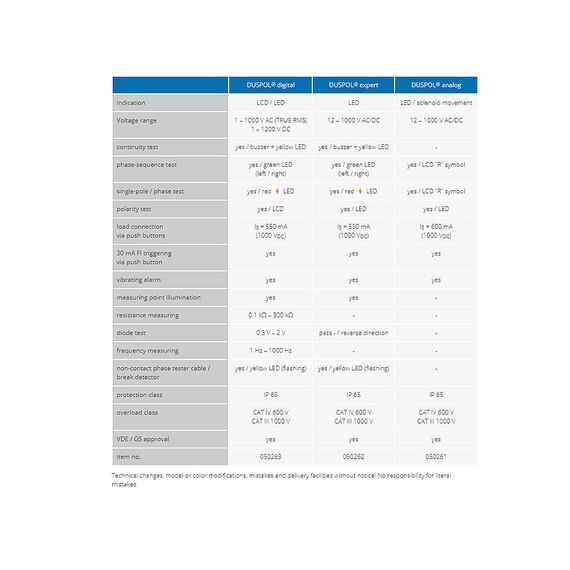

SPECIFICATIONS
Voltage range: 12 – 1000 V AC/DC
Continuity test: yes/buzzer + yellow LED
Phase-sequence test: yes/green LED (left / right)
Single-pole/phase test: yes/red LED
Polarity test: yes/LED
Load connection via push buttons: IS = 550 mA (1000 VDC)
30 mA FI triggering via push button: yes
Diode test: pass -/reverse direction
Non-contact phase tester cable/break detector: yes/yellow LED (flashing)
Protection class: IP 65
Overload class: CAT IV 600V, CAT III 1000V
Measuring point illumination
Vibrating alarm
LED indication
VDE/GS approved
