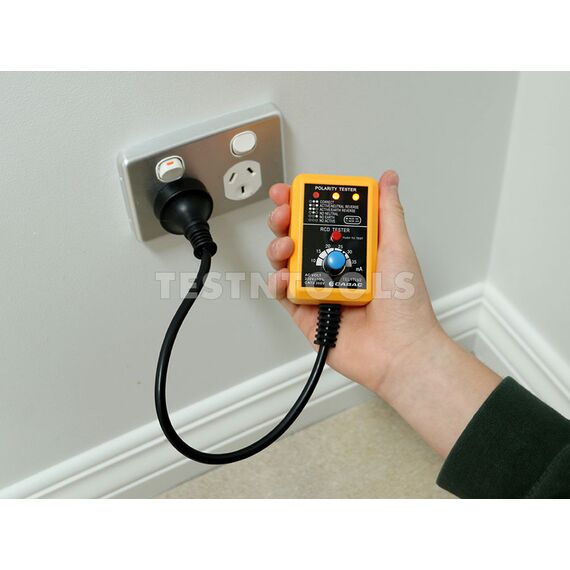

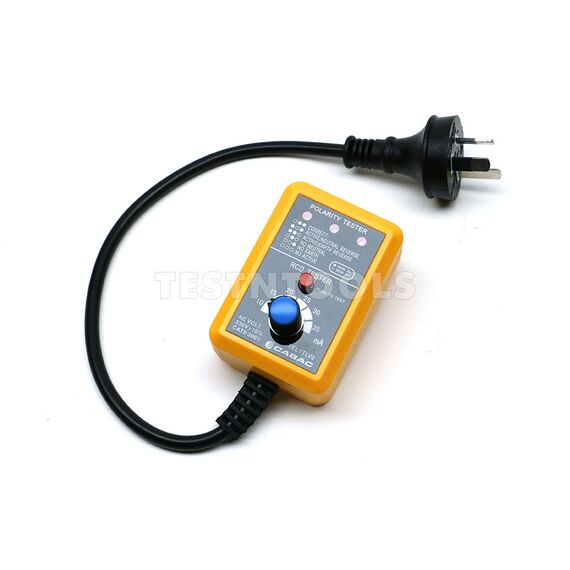

The Power Point Tester V2 TEL1TLV2 is a handy, rugged, and compactly designed low-cost unit for a big result. It tests a power outlet for polarity, earth connection, incorrect wiring, and test earth leakage circuit breakers. Safe and compliant to EMC EN55022, CE.
FEATURES
> Socket polarity visual tester indication
> Push button RCD trip test
> Live indication of the socket outlet
> Indicates active polarity compared to neutral/earth
> No exposed test leads and sealed with a 3-pin plug
> Suitable for 230V 10A New Zealand socket outlets
APPLICATIONS
> Polarity test
> Earth connection
> Incorrect wiring
> RCD trip test
SPECIFICATIONS
Voltage range 230VAC
Quiescent current 1.75mA
RCD test currents 10, 15, 20, 25, 30, 35mA
Test conditions
Correct
Active-neutral reversed
Active-earth reversed
Missing active
Missing neutral
Missing earth
Live earth
