The Fluke 1587FC is a versatile insulation tester and multimeter, featuring True RMS capabilities. It's perfect for motor repairs, generators, cables, and switch gear—making testing easier and more efficient.
The Fluke 1587FC upgrades the popular 1587 with Fluke Connect wireless capabilities. It retains all previous features, offering fast insulation resistance testing at various voltages with a remote switch probe for safety.
FEATURES
> PI/DAR timed ratio tests (1587 FC only)
> True RMS Voltage and Current for accurate measurements
> 6000 Count Digital Display for clear readings
> Autorange and Manual Range for easy testing
> Selectable Filter for precise voltage & frequency measurements on motor drives
> Min/Max Recording, Diode Test, Temperature, Capacitance & Frequency Measurement for versatile functionality
> CAT III 1000 V, CAT IV 600 V measurement category
> Test Ranges: 50V, 100V, 250V, 500V & 1000V
> Special Remote Test Probe for easy and safe measurements
> Auto-Discharge of capacitive voltage for user protection
> Live Circuit Detection prevents testing if voltage >30V is detected
> Auto Power Off to save batteries
> Large LCD Display with Backlight
> Input Alert for incorrect connections
> Continuity Test
SPECIFICATIONS
DC Voltage 6V - 1000V
AC Voltage 600mV - 1000V
DC Current 400mA (45 to 1000 Hz)
AC Current 400mA (45 to 1000 Hz)
Resistance 600Ω to 50 MΩ
Frequency 99.99Hz - 99.99kHz
Capacitance 1000nF - 9999μF
Temperature -40 to 537°C
Insulation Resistance 0.01MΩ - 2GΩ
Safety Rating CAT IV 600V, CAT III 1000V
Storage temperature -40 °C to 60 °C (-40 °F to 140 °F)
Operating temperature -20 °C to 55 °C (-4 °F to 131 °F)
Temperature coefficient 0.05 x (specified accuracy) per °C for temperatures <18 °C or >28 °C (<64 °F or >82 °F)
Relative humidity Noncondensing; 0% to 95% @ 10 °C to 30 °C (50 °F to 86 °F) 0% to 75% @ 30 °C to 40 °C (86 °F to 104 °F) 0% to 40% @ 40 °C to 55 °C (104 °F to 131 °F)
Battery powered 4 x AA
Size 50mm H x 100mm W x 203mm L
Weight 550g

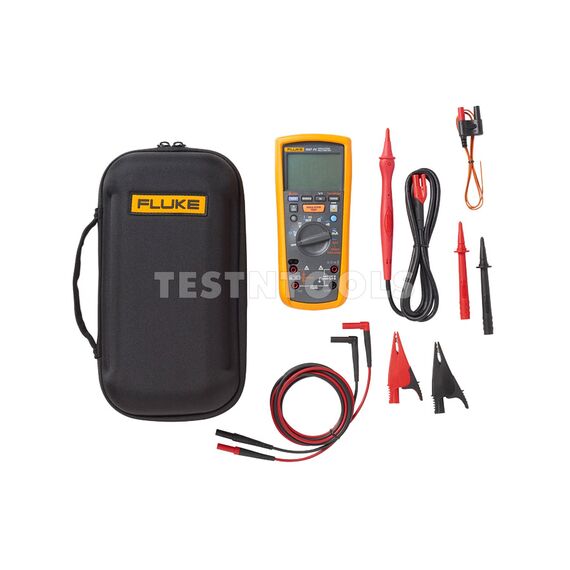

WHAT YOU GET
Fluke 1587FC Insulation Multimeter
TL224 Suregrip Silicone Test Leads
AC285 Suregrip Alligator Clips
TP165X Remote Test Probe
80BK DMM K Type Temperature Probe
Yellow Rubber Holster
C101 Rugged Case
Batteries
Instruction Manual
