Fluke 87V-MAX True RMS Heavy Duty Digital Multimeter

The Fluke 87V MAX True-RMS Heavy Duty Digital Multimeter sets a new standard for extreme conditions. With an IP67 rating, it’s waterproof and dustproof, operating between -15 °C and +55 °C. Designed to withstand a 4 m drop, it features an industrial-strength shell and a holster for easy, one-handed use.

The Fluke 87V MAX extends the popular 87V model with unique features. It offers precise voltage and frequency measurements on variable frequency drives, operates in extreme temperatures, and has a large, easy-to-read display. Battery life lasts up to 800 hours, ensuring reliable performance in challenging conditions.

FEATURES
> True-RMS AC voltage/current for non-linear signals
> Measures up to 1,000 V AC/DC
> Measures up to 10 A (20 A for 30 seconds)
> Frequency measurement up to 200 kHz
> Built-in temperature function with thermocouple
> Min/Max/Average recording and 250 μs Peak min-max
> Accurate measurements for VFDs and noisy equipment
> Large display with 2-level backlight and backlit keypad
> High-resolution 19,999 count display
> 800-hour battery life
> IP67 rated
> Withstands heat and cold
> Withstands drops up to 4 metres (13ft)

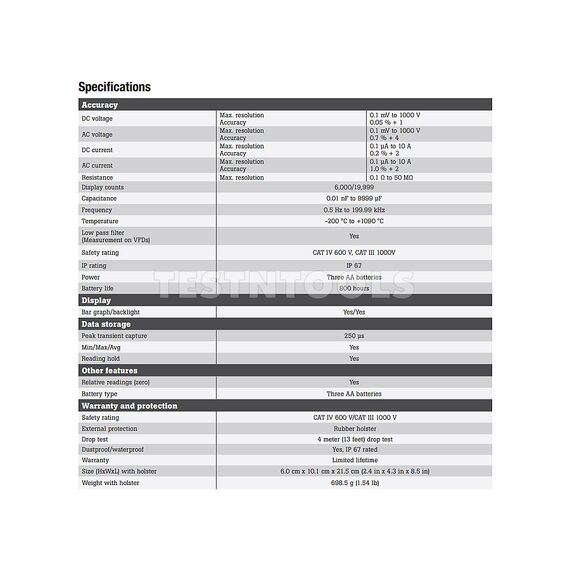

SPECIFICATIONS
Voltage DC Maximum voltage 1000 V
  Accuracy ±(0.05% + 1)
  Maximum resolution 10 µV
Voltage AC Maximum voltage 1000 V
  Accuracy ±(0.7% + 2) True RMS
AC bandwidth 20 kHz with low pass filter; 3 dB @ 1 kHz
  Maximum resolution 0.1 mV
Current DC Maximum amps 10 A (20 A for 30 seconds maximum)
  Amps accuracy ±(0.2% + 2)
  Maximum resolution 0.01 µA
Current AC Maximum amps 10 A (20 A for 30 seconds maximum)
  Amps accuracy ±(1.0% + 2) True RMS
  Maximum resolution 0.1 µA
Resistance Maximum resistance 50 MΩ
  Accuracy ±(0.2% + 1)
  Maximum resolution 0.1 Ω
Capacitance Maximum capacitance 9,999 µF
  accuracy ±(1% + 2)
  Maximum resolution 0.01 nF
Frequency Maximum frequency 200 kHz
  Accuracy ±(0.005% + 1)
  Maximum resolution 0.01 Hz
Duty cycle Maximum duty cycle 99.9%
  Accuracy ±(0.2% per kHz + 0.1%)
  Maximum resolution 0.1%
Temperature measurement –200.0 °C – 1090 °C, –328.0 °F – 1994.0 °F excluding probe
80 BK temperature probe –40.0 °C – 260 °C, –40.0 °F – 500 °F, 2.2 °C or 2% whichever is greater
Conductance Maximum conductance 60.00 nS
  Accuracy ±(1.0% + 10)
  Maximum resolution 0.01 nS
Diode Range 3 V
  Resolution 1 mV
  Accuracy ±(2% + 1)
Duty cycle range Accuracy Within ±(0.2% per kHz + 0.1%)
Operating temperature –20 °C to + 55 °C
Storage temperature –40 °C to + 60 °C
Humidity (without condensation) 0% – 90% (0 °C – 35 °C), 0% – 70% (35 °C – 55 °C)
Operating Altitude 2000 m
Display Digital 6000 counts updates 4/sec.
19,999 counts in high–resolution mode
Analog 32 segments, updates 40/sec
Frequency 19,999 counts, updates 3/sec at > 10 Hz
Warranty Lifetime
Battery Life Alkaline -400 hours typical, without backlight
Shock 1 Meter drop per IEC 61010–1:2001
Vibration Per MIL–PRF–28800 for a Class 2 instrument

SAFETY SPECIFICATIONS
Overvoltage category EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals CE, CSA, RCM

Battery powered 3 x AA
Size 201 x 98 x 52 mm (with holster)
Weight 355 g, 624 g – with holster

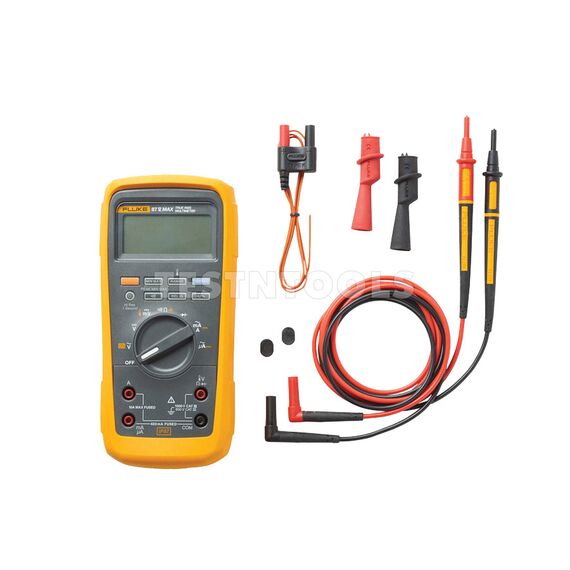

WHAT YOU GET
Fluke 87V MAX True-RMS Digital Multimeter
TL175 TwistGuard® test leads
AC175 Alligator clips
80BK-A temperature probe
Removable holster with test lead storage
Three AA batteries (installed)
