The PRO3000F50 probe utilises innovative filter technology to obstruct signal interference at 50Hz and its harmonics. This is even more useful when paired with the Pro3000 Tone Generator. Stop the buzz, and find cables faster with clear and precise toning regardless of the working environment.
FEATURES
> 50Hz filtered probe and tone generator kit
> SmartTone technology provides five distinct tones for exact pair identification
> Sends tone up to 16km on most cables
> Continuity testing and polarity confirmation
> Probe loudspeaker makes the tone easier to hear through drywall and timber etc
> Angled bed-of-nails clips allow easy access to individual pairs
> RJ-11 connector for direct use on telephone jacks without adapters
> Switch between filtered and unfiltered modes with one button press

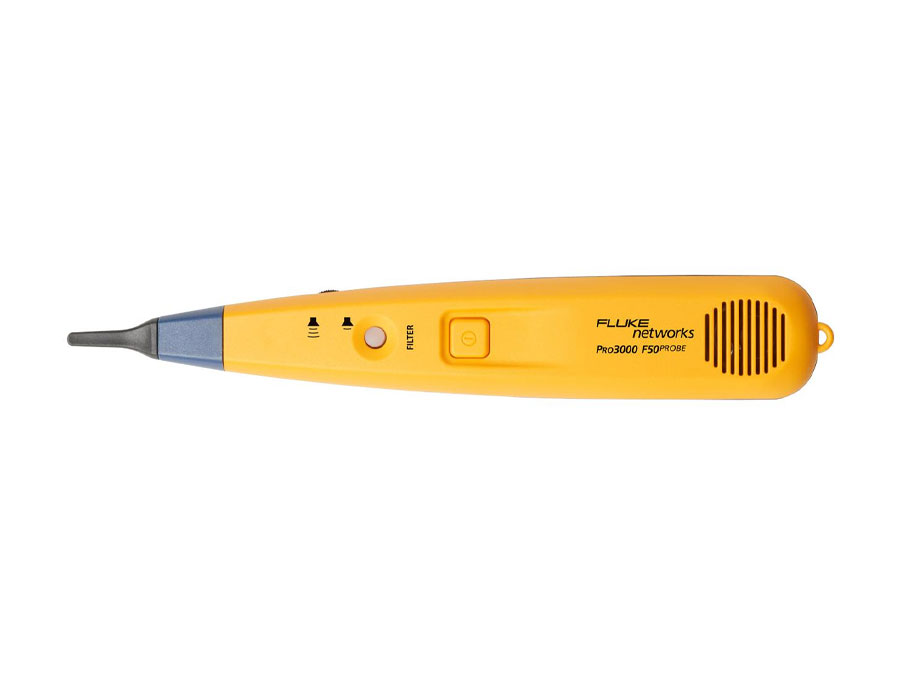

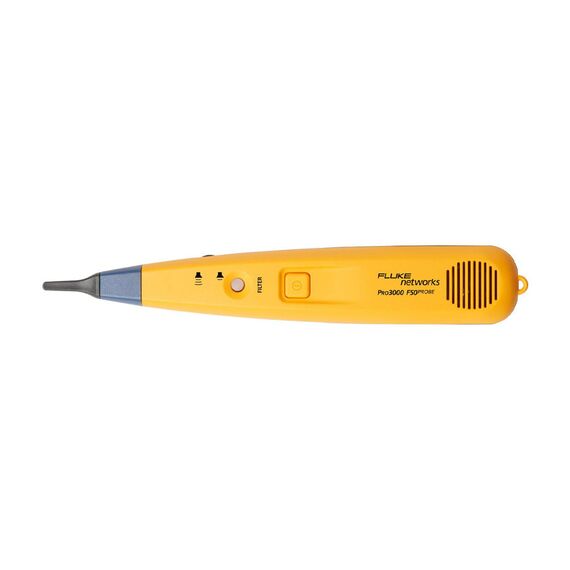

PRO3000F FILTERED PROBE SPECIFICATIONS
> Pro3000F50 Probe frequencies filtered: 50Hz and its harmonic frequencies
> Battery 9V alkaline
> Size 249 x 41 x 33mm
PRO3000F FILTERED PROBE USER INTERFACE
> ON/OFF button (Push 1 second to activate, Press to turn off, Auto-off after 5 minutes)
> Filtered/Unfiltered Mode Button with LED (Green = Filtered, Red = Unfiltered)
> 3.5 mm earphone jack
> Volume dial
> Replaceable tip

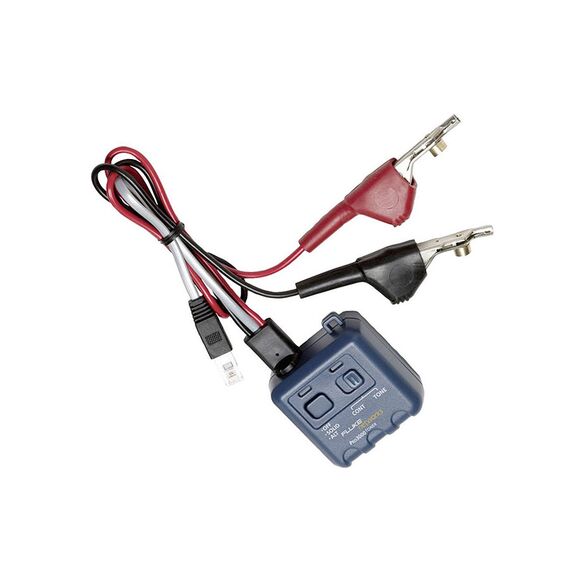

PRO3000 TONER SPECIFICATIONS
> Solid frequency 1000 Hz nominal
> Alternating frequency 1000/1500 Hz nominal
> Over voltage protection 60 Vdc in toner/polarity mode
> Toner mode output 8 dbm into 600 ohms
> Continuity mode output voltage 8 Vdc
> Battery 9V alkaline
> Size 69 x 61 x 36mm
PRO3000 TONER USER INTERFACE
> Slide Switch selects Continuity or Tone Mode
> Push button switch selects SOLID, ALT, or OFF
> Tone mode LED
> Continuity/Polarity LED
WHAT YOU GET
> Pro3000 filtered probe
> Pro3000 tone generator
> Nylon pouch
> User manual
