Description

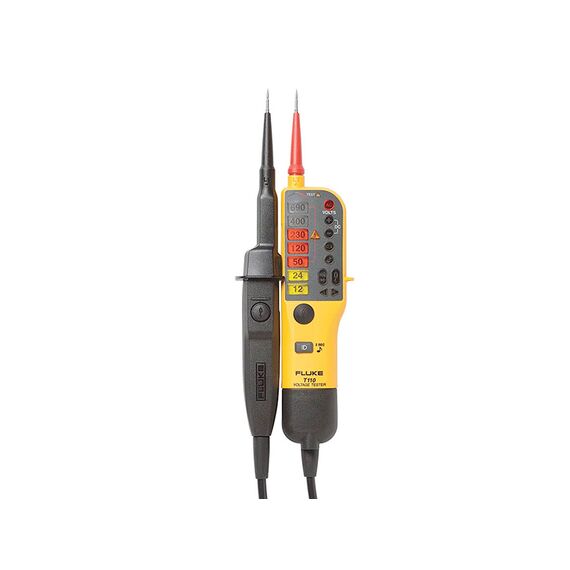

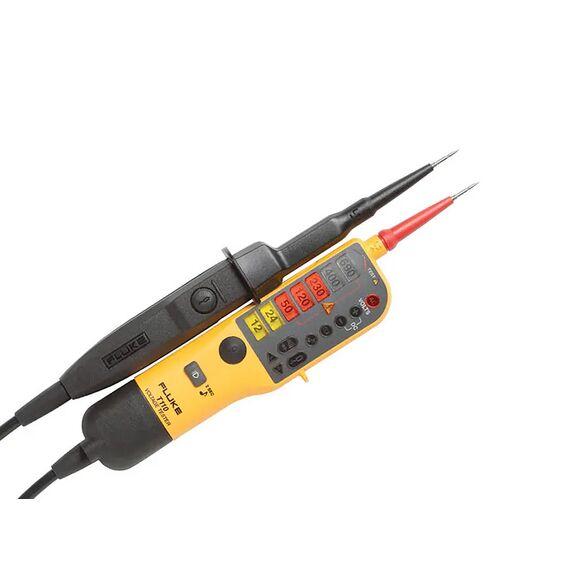

The Fluke T110 is loved by electricians worldwide as being your 'toolbelt meter' for quickly checking voltages, continuity, polarity, and for easily tripping RCD's, etc. The T110 functions similarly to the classic 'Duspols' but much better!
The Fluke T110 has the complete combination of safety, ease of use, and fast answers available anywhere. This voltage tester is built to work the way you work.
FEATURES
> Switchable load
> Avoid display of ghost voltages, allows you to draw more current from the circuit under test
> Prevent tripping residual-current devices (RCDs)
> Safety rated CAT IV 600V, CAT III 690V
> Dual insulated cable tested to 3x the required bend angle
> Backlit graduated scale and backlit indicators
> Built-in LED torch for use in dark areas
> Beeper on/off for testing in quiet areas

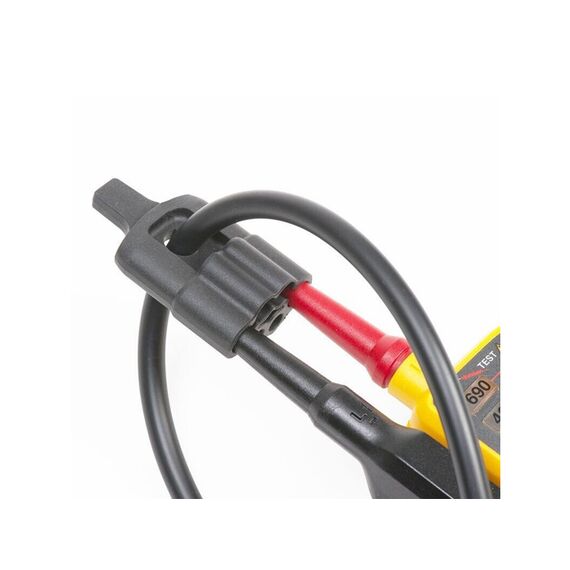

> Improved probe docking for secure storage
> Clear audible, vibrating voltage indicator
> Low battery indicator
> Phase rotation indicator for 3-phase systems
> Single-pole phase test offers fast identification of live conductors

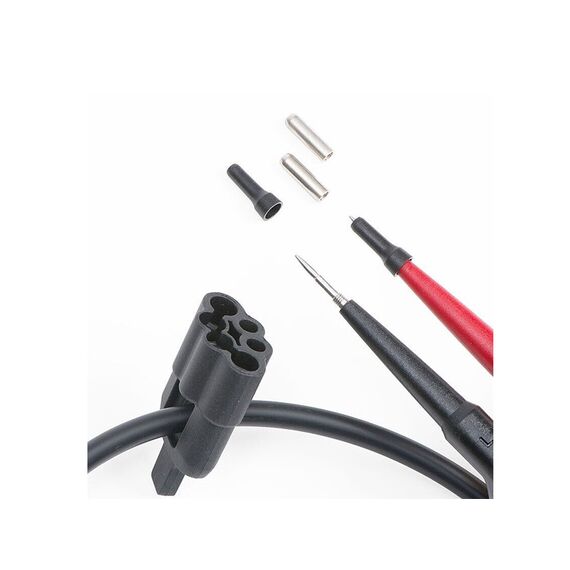

> Push-on probe tips, probe tip protector, and storage accessory
> Designed according to IEC EN 61243-3:2014 to verify the absence of voltage even with discharged batteries
> Tip protector serves as an extra hand when opening electrical safety outlets
SPECIFICATIONS
Voltage AC/DC 12V - 690V
Continuity 0 - 400 kΩ
Frequency 0/40 - 400 Hz
Phase rotation 100V - 690V
LED indicator response time < 0.5 s
200 kΩ input impedance current draw 3.5mA @ 690V, current draw 1.15mA @ 230V
7 kΩ input impedance (with load buttons pressed) Current draw 30mA @ 230V
IP64 rated
Powered by 2 x AAA batteries
Size 260L x 70W x 38H mm
Weight 280g
WHAT YOU GET
Fluke T110
Screw on probe caps
User manual
NOTES

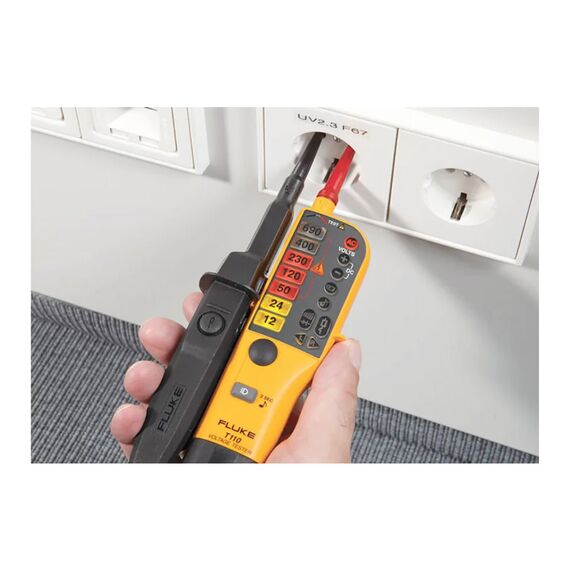

The probes fit New Zealand 10A power point sockets.
Supplied in retail box, no case included.
