The T6-1000 PRO Electrical Tester can measure voltages up to 1000 volts AC and current up to 200 amps AC, all through the open fork without contacting live voltage.

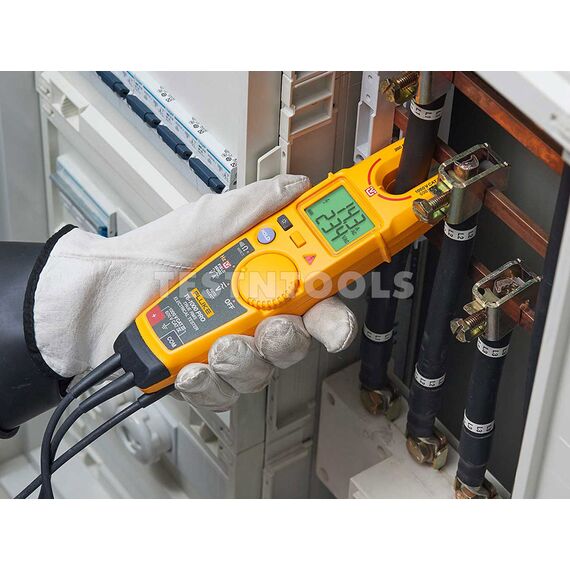

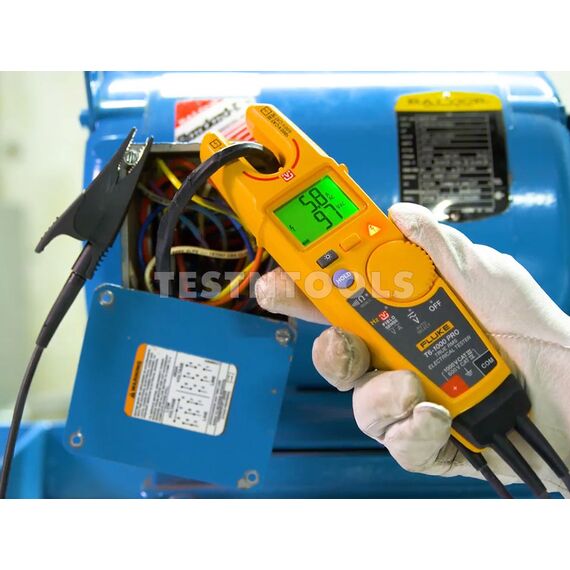

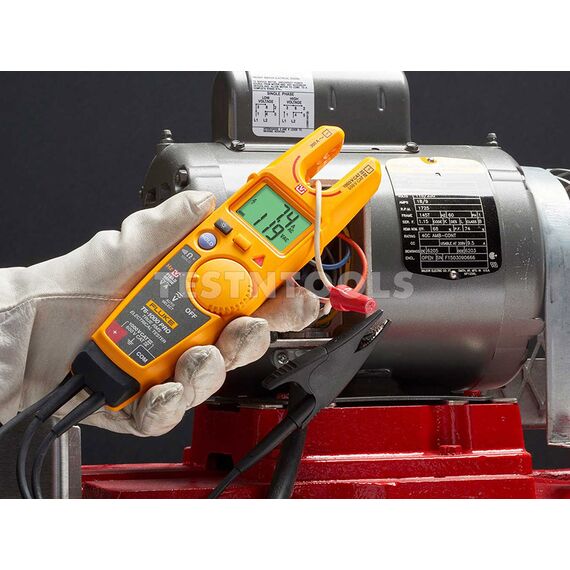

Connect the black lead to ground with the alligator clip and slide the wire into the open fork to see both voltage and current simultaneously. It works on cables up to 120 mm2 carrying as much as 200 A and 1000 V AC.

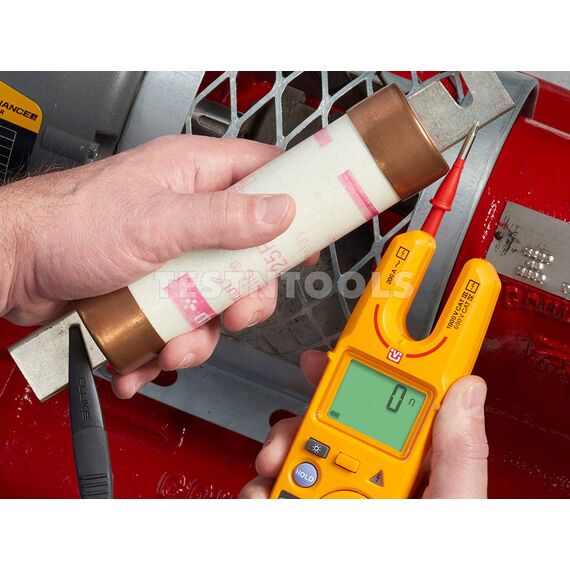

If not using FieldSense the attached test leads can be used for AC, DC, continuity, and resistance. The plug-in probes are 2mm round at the tips and fit standard New Zealand socket outlets.
FEATURES

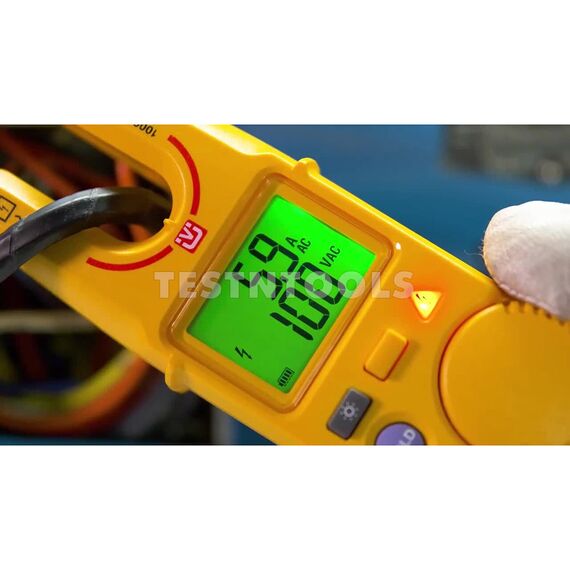

> Simultaneous voltage and current display.
> Visual continuity. The screen automatically lights up green while the beeper is on, perfect for loud environments.
> True RMS voltage and current measurements, even when measuring complex signals.
> FieldSense technology for AC voltage, current, and frequency measurement without making electrical contact with live voltage.
> Auto-select displays AC or DC
> Hold button freezes the reading.
> Clear LCD display with backlight.
> Hazardous voltage indicator LED.
SPECIFICATIONS
Voltage AC/DC 1V - 1000V
Current AC 0.1 - 200A
Continuity beeper and green light
Resistance 1 to 100k ohm
Frequency 45 - 66 Hz
Jaw opening 17.8mm
Powered by 2 x AA batteries
Size 259L x 61W x 43H mm
Weight 350g
Safety rating CAT IV 600 V / CAT III 1000 V
WHAT YOU GET
Fluke T6-1000 PRO
Heavy-duty alligator clip
Tool belt holster H-T6
User manual
NOTES
The 2mm diameter round probes fit New Zealand 10A power point socket outlets.
