Description

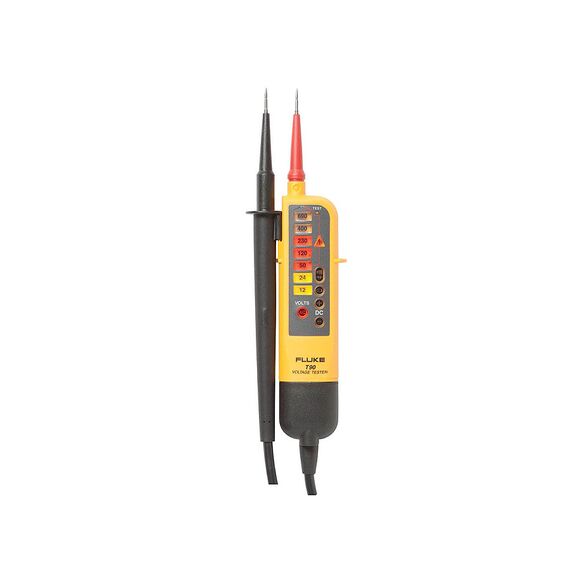

The compact Fluke T90 electrical tester gives you fast test results the way you need them in a slim design. A clear audible indicator gives quick results in any work situation.
This voltage tester is the perfect basic tool to check the presence of voltage, even with discharged batteries.
FEATURES
> Safety rated CAT II 690V, CAT III 600V
> Double insulated cables tested to 3 x the required bend angle
> Backlit graduated scale and backlit indicators
> Improved probe docking for secure storage
> Low battery indicator
> Single-pole phase test offers fast identification of live conductors
> Push-on probe tips, probe tip protector, and storage accessory
> Designed according to IEC EN 61243-3:2014 to verify the absence of voltage even with discharged batteries
> Tip protector serves as an extra hand when opening electrical safety outlets
SPECIFICATIONS
Voltage AC/DC 12V - 690V
Continuity 0 - 400 kΩ
Frequency 0/40 - 400 Hz
LED indicator response time < 0.5 s
200 kΩ input impedance current draw 3.5mA @ 690V, current draw 1.15mA @ 230V
IP54 rated
Powered by 2 x AAA batteries
Size 260L x 70W x 38H mm
Weight 280g
WHAT YOU GET
Fluke T90
Screw on probe caps
User manual
NOTES
The probes fit New Zealand 10A power point sockets.
Supplied in retail box, no case included.
