Description
Unleash the Power of Thermal Imaging: The Testo 883 thermal imager isn't just about quality images; it's a comprehensive toolkit for image management, contrast fine-tuning, seamless documentation with precision, and offering advanced analysis and reporting tools. It ensures swift readiness and optimal performance, perfect for extended measurements and distant tasks.
The Testo 883 thermal imager is the trusted ally for service engineers, facility managers, and building energy consultants, empowering you to see, analyze, and report with ease.
FEATURES
> Best image quality IR resolution of 320 x 240 pixels
> Interchangeable lens: normal and telephoto
> Display type capacitive touch display
> Display lighting bright / normal / dark
> 3.5" LED touch screen
> Wi-Fi
> Bluetooth Connectivity
> Housing protection class IP54
> Wireless transmission of readings from clamp meter or humidity probe directly into the thermal image via Bluetooth
> Testo site recognition intelligent image management
> Testo scale assist automatic contrast adjustment
> Professional reporting software IRSoft
> Manual focus for sharp thermal images from a distance of 100mm
> Can be operated via touchscreen and joystick
> Perfect for carrying out insurance reports
> Made in Germany
SPECIFICATIONS
Infrared image output
Focus manual
Infrared resolution 320 x 240 pixel
Thermal sensitivity ˂ 40 mK
Field of view 30° x 23° (Standard lens), 12° x 9° (Telephoto lens)
Minimum focus distance < 0.1 m (Standard lens)
Geometric resolution (IFOV) 1.7 mrad (standard lens), 0.7 mrad (telephoto lens)
Image refresh rate 27 Hz*
Spectral range 7.5 to 14 µm
*Inside the EU, outside 9 Hz
Image output visual
Minimum focus distance < 0.4 m
Image size 3 MP
Image presentation
Display option IR image / real image
Colours iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette
Display type 8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)
Digital zoom 2x; 4x
Measurement
Reflected temperature manual
testo ε-Assist Included
Measuring range -30 to +650°C
Accuracy ±2 °C, ±2 % of m.v.; (greater value applies)
Emissivity 0.01 to 1
Imager storage
File format image .bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls
Storage device Internal Memory (2.8 GB)
Power supply
Battery type Fast-charging, Li-ion battery can be changed on-site
Operating time ≥ 5 h
Charging options In instrument / charger (optional)
Mains operation yes
System requirements Windows® 10; Windows® 8; Windows® 7
Tripod mounting 1/4" - 20UNC; carrying strap
Product-/housing material PC - ABS
Dimensions 171 x 95 x 236 mm
Weight 824 g

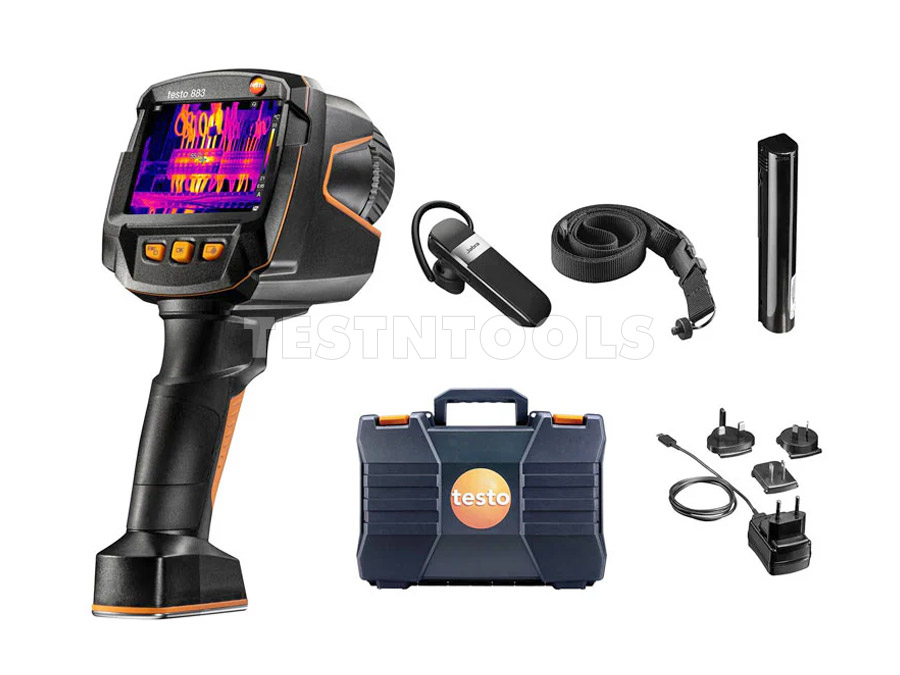

WHAT YOU GET
Testo 883 thermal imager with standard lens 30° x 23°
Professional software IRSoft (free download)
USB-C cable
USB mains unit
Li-ion rechargeable battery
Carrying strap for the thermal imager
Bluetooth® headset
Robust case
Short instructions
Calibration protocol
