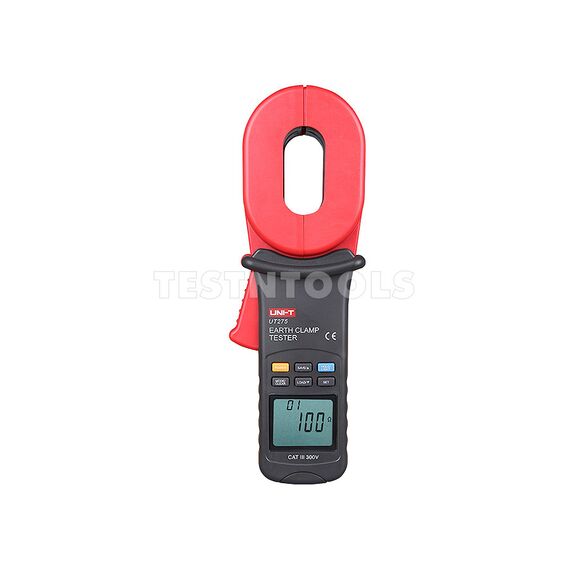

UNI-T Clamp Earth Ground Tester 30A UT275

UT275
$1,26250
In stock
Shipping Information
Find similar
Description
UT275: Your Go-To for Reliable Leakage Current Measurement. Handle leakage currents up to 30A with ease. Its double insulation design ensures durability for outdoor work while effectively blocking interference signals.


FEATURES
> Resistance limit alarm
> Low battery indication
> Auto range
> Data hold
> Data recall
> LCD backlight
> Auto calibration
> Auto power off
> Ideal for Electric power, telecommunication, meteorology, oil field, building and industry

SPECIFICATIONS
Earth Ground Resistance (Ω)
  0.01 ~ 0.099Ω ±(1%+0.01)
  0.1 ~ 0.99Ω ±(1%+0.01)
  1 ~ 49.9Ω ±(1.5%+0.1)
  50 ~ 99.5Ω ±(2%+0.5)
  100 ~ 199Ω ±(3%+1)
  200 ~ 395Ω ±(10%+5)
  400 ~ 590Ω ±(20%+10)
  600 ~ 1000Ω ±(25%+20)
Leakage current (A)
  0mA ~ 299mA ±(2.5%+2mA)
  0.3A ~ 2.99A ±(2.5%+100mA)
  3A ~ 30A ±(2.5%+300mA)
Display count 10000
Jaw opening 28mm
Data storage 30
Display 47mm x 28.5mm

Powered by 1.5V battery (LR6) x 4
Size 293mm x 90mm x 66mm
Weight 1.320 kg

WHAT YOU GET
1 x UT275 Clamp Earth Ground Tester
Test ring
Batteries
Toolbox


Warranty 12 months
