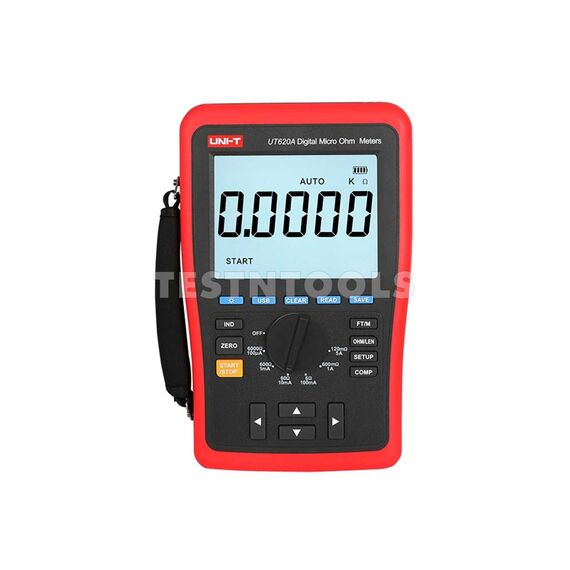

The UT620A is your go-to gadget for DC low resistance—perfect for squeezing into tight spots! It checks device health, calculates wire length, and sends data via USB. From welding points to transformers, it’s the ultimate trouble-shooter that doesn’t need to stretch its legs.
FEATURES
> Comparison measurement with upper and lower limits
> Wire length measurement (m/ft)
> Built-in Lithium battery
> 1000-group data storage
> Improved measurement method which improves accuracy by counter-balancing contact resistance of leads
> Data transmission between USB and PC
> Data hold
> LCD backlight
> Zeroing function, relative mode
> IND resistance measurement mode
> Two-way data transmission by USB interface
SPECIFICATIONS
Resolution 10uΩ
Resistance range
60mΩ/10A
120mΩ/5A ±(0.25%+25)
600mΩ/1A ±(0.25%+25)
6Ω/100mA ±(0.25%+25)
60Ω/10mA ±(0.25%+25)
600Ω/1mA ±(0.25%+25)
6kΩ/100uA ±(0.75%+30)
Display 116mm x 87.5mm
Display count 60000
Four-wire measurement
Wire length measurement
High/low limit alarm
Data storage 1000
USB data transmission
Manual range
Backlight
Relative value
Low battery indication
Auto power off
Powered by 7.4V 4000mAh Li-ion battery, rechargeable
Size 268mm x 168mm x 60mm
Weight 1.5kg

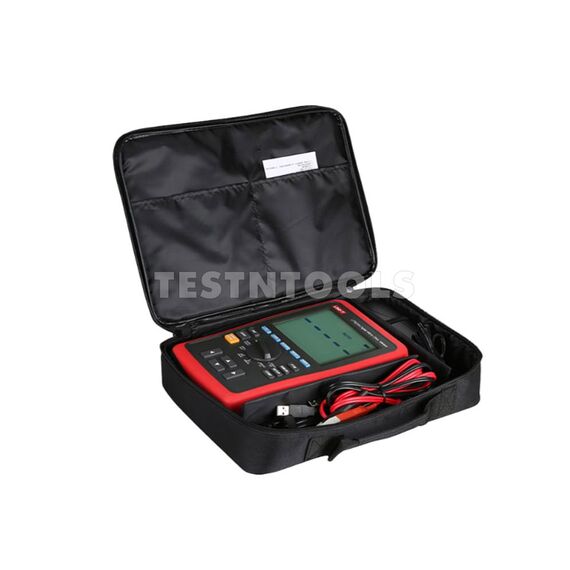

WHAT YOU GET
1 x UT620A
Test leads with Kelvin clips (red & black)
Power cord
Power adaptor
USB interface cable
PC software CD
English manual
User manual
Warranty 12 months
