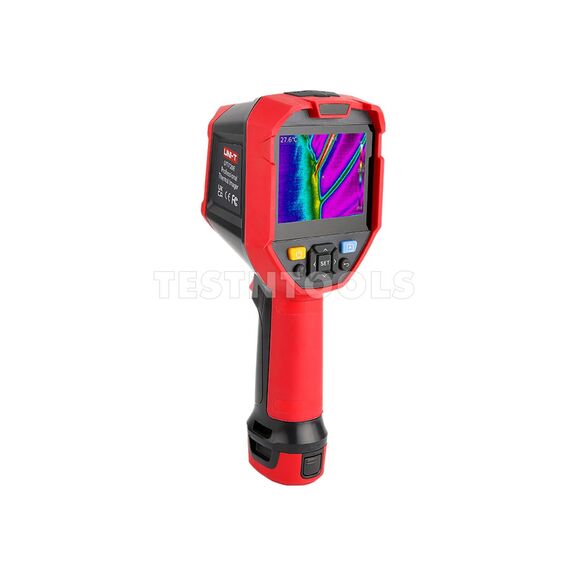

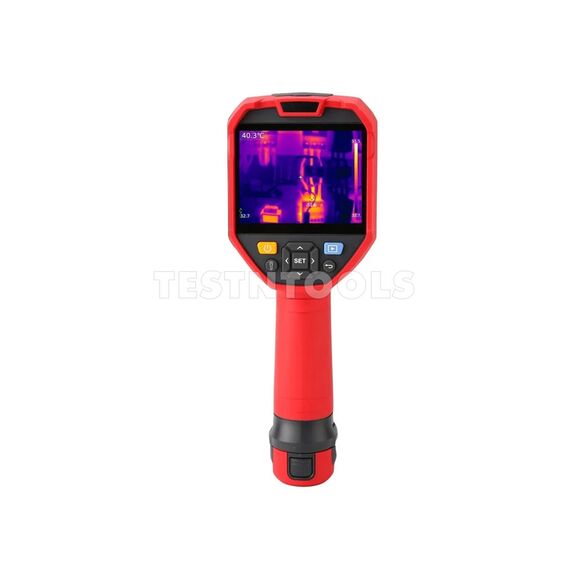

Meet the UTi720E, the thermal camera that's hotter than your morning coffee! With a 3.5” IPS screen, it blends thermal and visual images like a pro. Measuring temps from -20℃ to 550℃, it’s perfect for any hot or cold situation. Plus, the 5200mAh battery means no downtime—just endless thermal fun!
APPLICATIONS
PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building & HVAC inspection etc.
FEATURES
> 3.5" IPS display screen (640×480 Pixels)
> IR resolution: 256×192
> Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
> Auto alarm for high/low temperature
> Auto tracking for hot spot/cold spot
> On-screen analyzer Point 5/Line 1/Rectangle 3/Circle 3
> Image capture
> Digital camera resolution: 2MP
> Digital zoom: 2x, 4x
> Image modes: Thermal, Visual image, Fusion,PIP
> Colour palettes: 7 (White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
> Isotherm (Auto/Ratio/Below/Above/Section/Manual)
> LED flashlight
> Wi-Fi connection through Mobile App
> QR Code – photo management
> PC software: analysis and real-time image projection
> 5200mAh replaceable battery pack (Type C rechargeable)
> 1/4" tripod mounting hole
> IP54 IP rating
> 2m drop proof
> Certified CE,UKCA,FCC,RoHS
SPECIFICATIONS
IR resolution (Pixels) 256 x 192
Display 3.5"IPS (640*480)
Field of view(FOV) 56° x 42.2°
Thermal sensitivity(NETD) ≤50mK @25℃
Spatial resolution(IFOV) 3.8mrad
Frame rate ≤25Hz
Focus Focus Free
Temperature measurement range -20℃ ~ 550℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01 ~ 1.00 adjustable (0.95 default)
Color palettes 7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
Image modes Thermal,Visual image,Fusion,PIP
On screen analyzer Point 5/Line 1/Rectangle 3/Circle 3
Digital camera resolution 2MP
Digital zoom 2x, 4x
Hi/Lo temperature alarm Icon, LED flashlight
Isotherm 6 (Auto/Ratio/Below/Above/Section/Manual)
Battery operation time ≥ 4 hours (without Wi-Fi)
PC software analysis
Wi-fi
Storage 16GB Micro SD card
Image/Video storage format JPEG
Powered by Detachable Li-ion battery pack(3.7V 5200mAh)
Size 260mm × 97mm × 99mm
Weight 630g

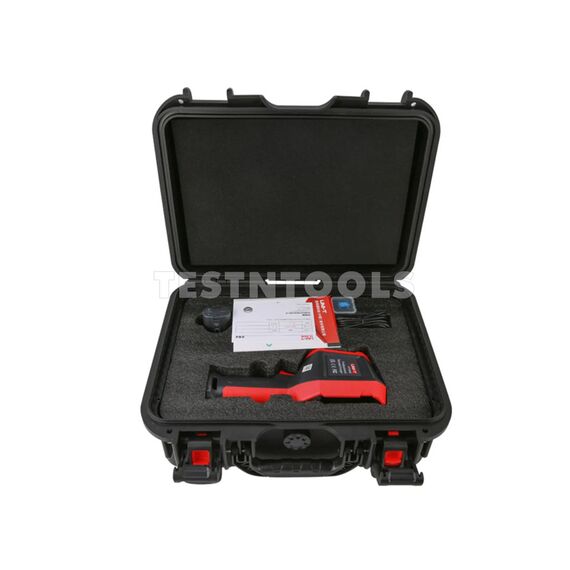

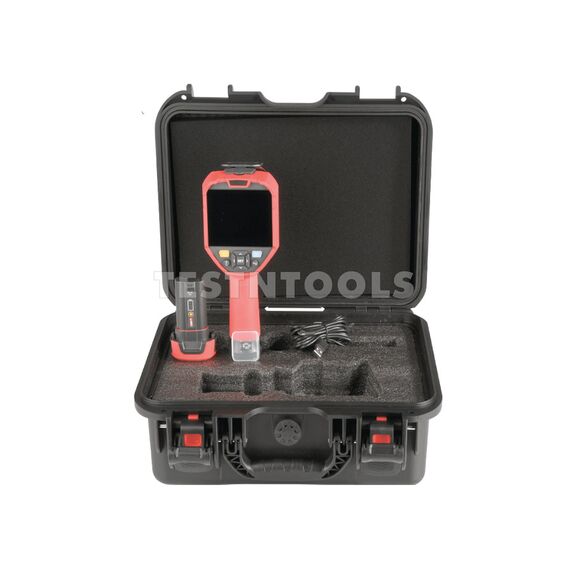

WHAT YOU GET
1 x UTi720E
1 x Micro SD card
1 x Type-C USB cable
1 x Li-ion battery pack
User manual
Warranty 12 months
