UNI-T Fork Meter 200A UT256B

UT256B
$22400
In stock
Shipping Information
Find similar
Description

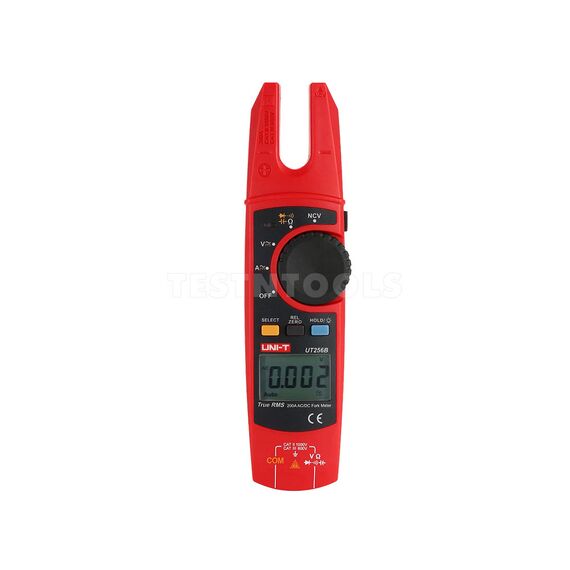

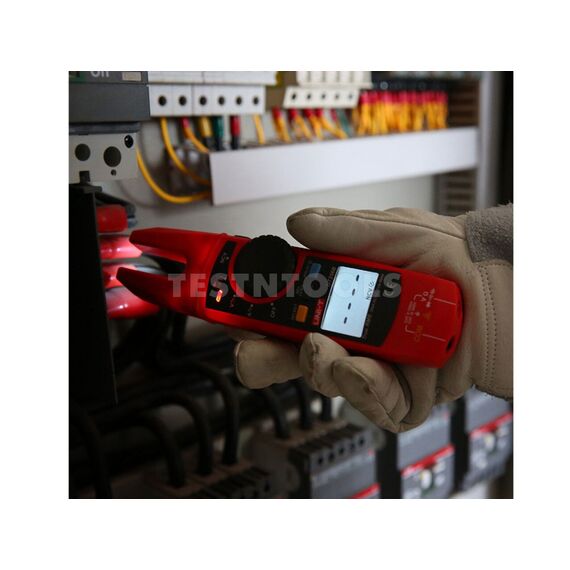

The UT256B is a heavy-duty True RMS Fork Meter that allows users to measure current by simply moving the wire of interest inside the opening of the 'fork' past the labelled mark. With no mechanical parts, this meter bears no risk from any type of mechanical failure.

FEATURES
- True RMS
- CAT II 1000V, CAT III 600V
- Zeroing function, Relative mode
- Auto range, Auto power off
- Measures AC/DC current, AC/DC voltage, resistance, circuit on-off, diode, capacitance, etc
- 6000 display count, 99 sets data storage, Data hold
- NCV voltage testing, Continuity buzzer
- Low battery indication: ≤2.4V,
- LCD backlight, Flashlight
- Certifications: CE, RoHS, cETLus

SPECIFICATIONS
AC current 200A ±(2.5%+5)
DC current 200A ±(2.5%+5)
AC voltage 750V ±(1.2%+3)
DC voltage 1000V ±(0.8%+3)
Resistance 60MΩ ±(1%+2)
Capacitance 60mF ±(4%+20)
Display count 6000

Powered by 2 x 1.5V (LR6)
Size 210mm x 53mm x 35mm
Weight 250g

WHAT YOU GET

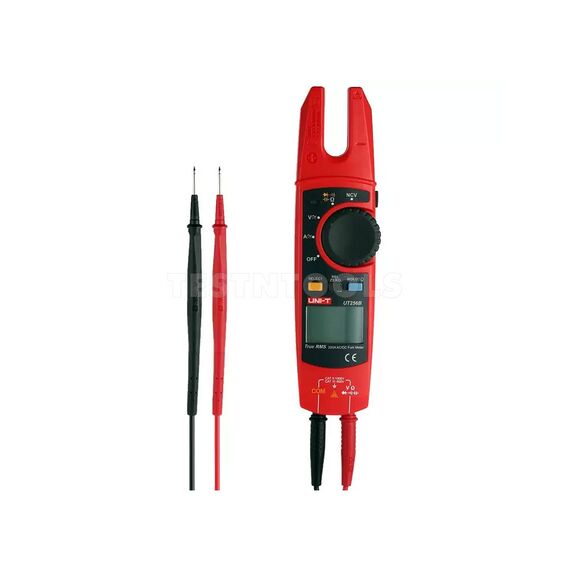

1 x UT256B True RMS Fork Meter
1 x Test leads
2 x Batteries
Carrying bag
User Manual


Warranty 12 months
