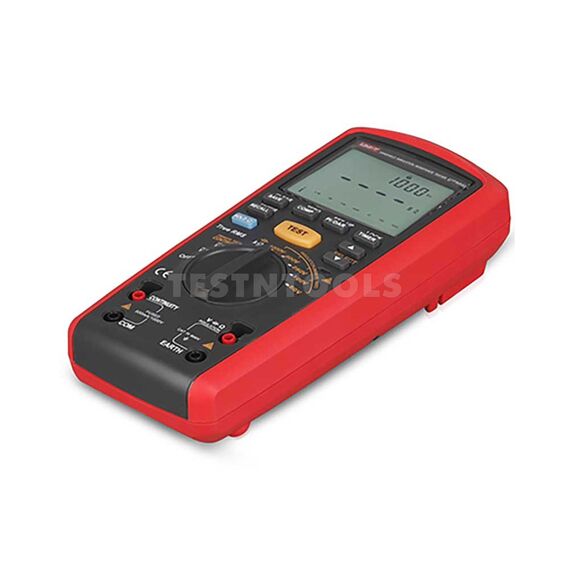

UNI-T Handheld Insulation Resistance Tester UT505B

The UT505 Series handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. Aside from the typical multimeter functions, these meters can also measure insulation resistance, PI, DAR, and automatically calculate resistance ratio to determine the insulation status.

FEATURES
- 50V to 1000V
- Polarization Index/Timing measurement
- True RMS
- 6 sets of timing selectable
- DAR 60s/15s and 60s/30s
- Single hand operation through remote controlled probe
- Live wire testing
- Auto discharge
- Auto fuse check/warning
- Analog bar graph
- High voltage output alarm
- 99-group data storage
- Data hold
- 6000 display count
- Meets IEC 61557: 61557-1:2007; 61557-2:2007; 61557-4:2007

SPECIFICATIONS
Test voltages 50V/100V/250V/500V/1000V 0%~20%
Insulation resistance:
50V 0.01M?~50M? ±(3%+3)
50V 50M?~1G? ±(3%+3)
100V 1G?~10G? ±(10%+3)
100V 0.01M?~100M? ±(3%+3)
100V 100M?~1G? ±(3%+3)
250V 1G?~20G? ±(10%+3)
250V 0.01M?~200M? ±(1.5%+5)
250V 200M?~1G? ±(1.5%+5)
500V 1G?~50G? ±(10%+3)
500V 0.01M?~500M? ±(1.5%+5)
500V 500M?~1G? ±(1.5%+5)
1000V 1G?~100G? ±(10%+3)
1000V 0.1M?~2000M? ±(1.5%+5)
1000V 2G?~9.9G? ±(5%+3)
1000V 10G?~20G? ±(7%+3)
1000V 20G?~200G? ±(20%+3)
DC voltage 0V~600V ±(2%+3)
AC voltage 0V~600V ±(1.5%+5)
Capacitance 100pF~500?F ±(5%+5)

Powered by 6 x 1.5V battery
Size 103mm x 225mm x 59mm
Weight 630g

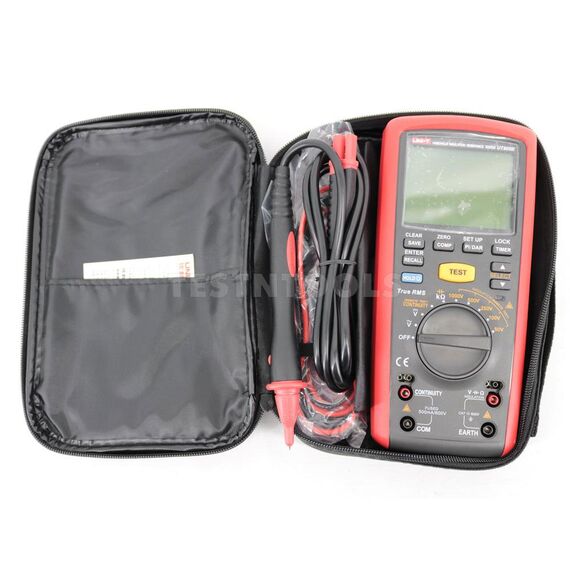

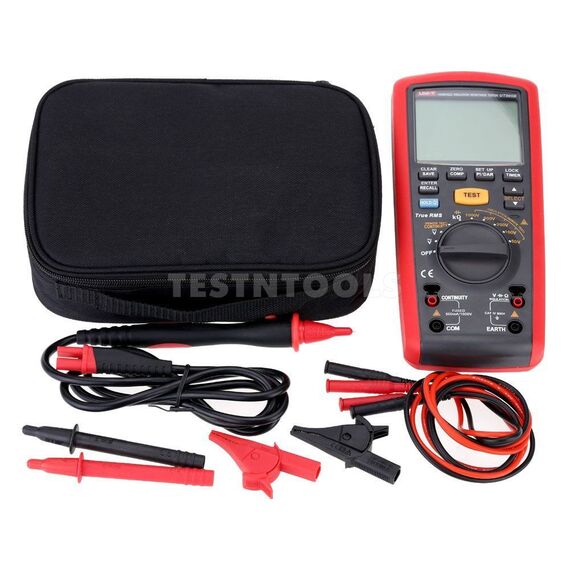

WHAT YOU GET
1 x UNI-T Handheld Insulation Resistance Tester UT505B
1 x Test Leads
1 x Test Probes
1 x Set Alligator Clips
Carrying Bag
Batteries
Manual


Warranty 12 months
