Description
THIS ITEM IS AVAILABLE ON SPECIAL ORDER. PLEASE CONTACT US TO CONFIRM AVAILABILITY

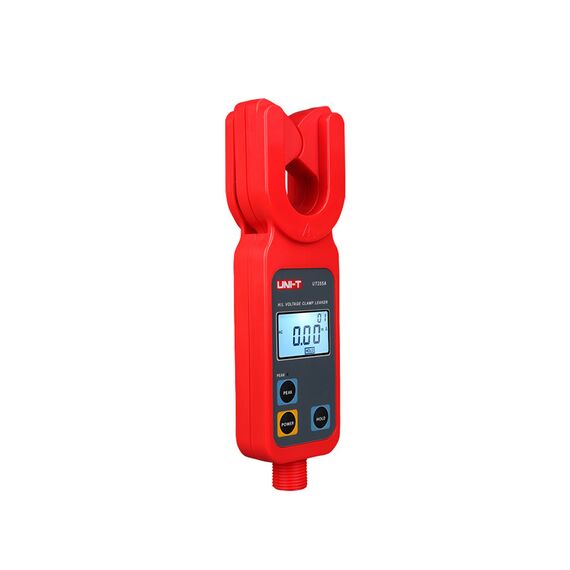

The UT255A high-voltage clamp ammeter is capable of measuring both high-voltage line current and leakage current, with a maximum capacity of 69kV. The UT255 includes an insulation rod, providing professional users the ability to assess the condition of lightning arresters.
FEATURES
> Capacitance measurement
> Resistance measurement
> Auto range, 2 times/s sampling rate
> Peak hold
> Automatic plug clamp
> RS-232 interface
> Data hold
> Auto power off
> LCD backlight
> Manual range/stores 99 sets of data
> Overload protection, low battery indication
SPECIFICATIONS
Leakage current 0.01mA-100A ±(1%+5); 100A-600A ±(2%+5)
Voltage (Freq.) 0V~69kV (50Hz/60Hz)
Display mode 4 digits LCD
Jaw opening 33mm
Test mode Clamp CT, integration
Display 47mm x 28.5mm
Product colour Red and grey
Powered by 4 x 1.5V (LR03) batteries (included)
Size 68mm x 245mm x 40mm
Weight 335g

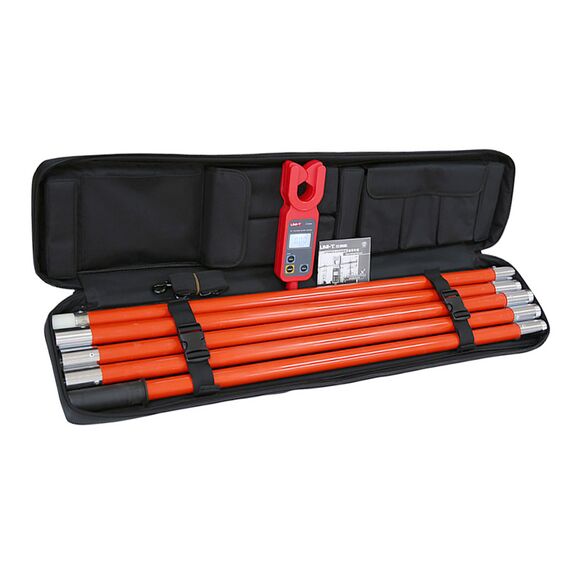

WHAT YOU GET
1 x High Voltage Clamp Ammeter UT255A
4 x Batteries
Insulation rod
Manual
Warranty 12 months
