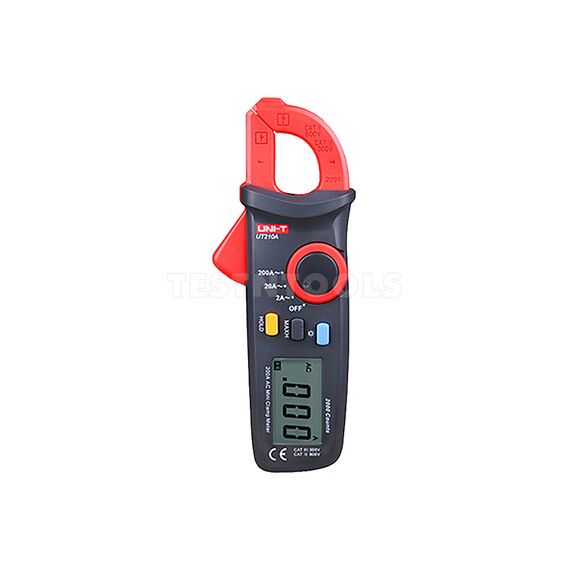

UT210 series Mini Clamp is provided with the features of high reliability, security, auto range, and small-size. It can test the small current signal precisely; the chip itself has VFC start-up model and there is a specific filter circuit inside, which can filter the high frequency interference signal and ensure the accuracy of the measurement.
FEATURES
- CAT II 600V / CAT III 300V rating
- Auto Range
- AC current (A)
- Ergonomic and lightweight
- 2 - 3 times/s sampling rate
- LCD backlight
- Auto power off
- Low battery indication
- Continuity Buzzer
SPECIFICATIONS
Jaw opening 16 mm
AC Current 200A ±(2.5%+20)
Display Count 2,000
Powered by 2 x 1.5V (R03)
Size 158mm x 60mm x 33.5mm
Weight 150g
WHAT YOU GET
1 x UNI-T Mini Clamp Meter 100A AC DC UT210A
2 x Batteries
Manual
Warranty 12 months
