Description

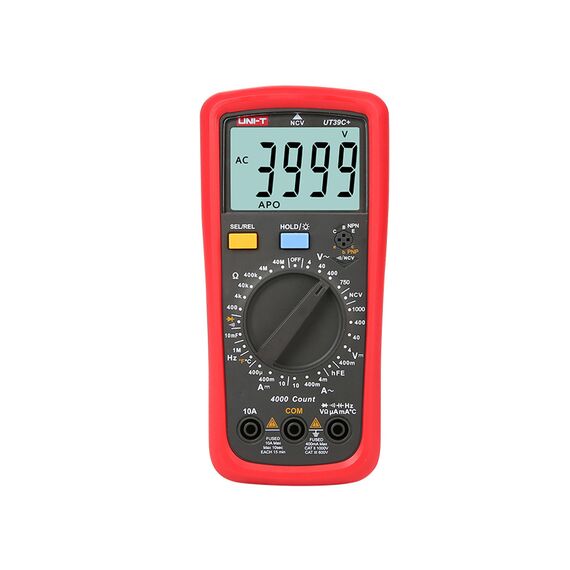

The UT39C+ modern digital multimeter measures AC/DC voltage, AC/DC current, and resistance.
FEATURES
> 1000V DC voltage measurement
> 750V AC voltage measurement
> 10A DC/AC current measurement
> Resistance/Capacitance
> hFE
> Diode/Continuity test
> Designed according to CAT II 1000V, CAT III 600V safety standards
SPECIFICATIONS
DC voltage 400mV/4V/40V/400V/1000V ±(0.05%+5)
AC voltage 4V/40V/400V/750V ±(0.8%+3)
DC current 40mA/400mA/10A ±(0.5%+5)
AC Current 4mA/400mA/10A ±(1%+2)
Resistance 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+2)
Capacitance 10mF ±(4%+5)
Frequency 10Hz-1MHz ±(0.1%+4)
Display count 4000
Temperature -40C-1000C ±(1%+4)
Powered by 2 x 1.5V AAA battery (R03)
Size 172 x 83 x 53mm
Weight 330g

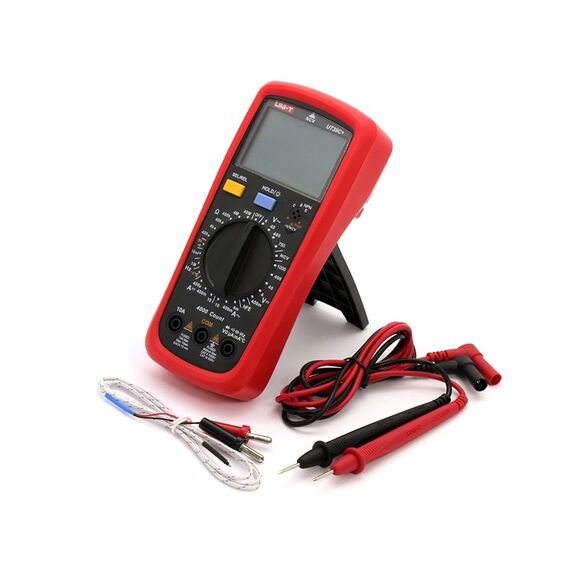

WHAT YOU GET
Digital Multimeter UT39C+
Test Leads
Temperature Probe
Manual
