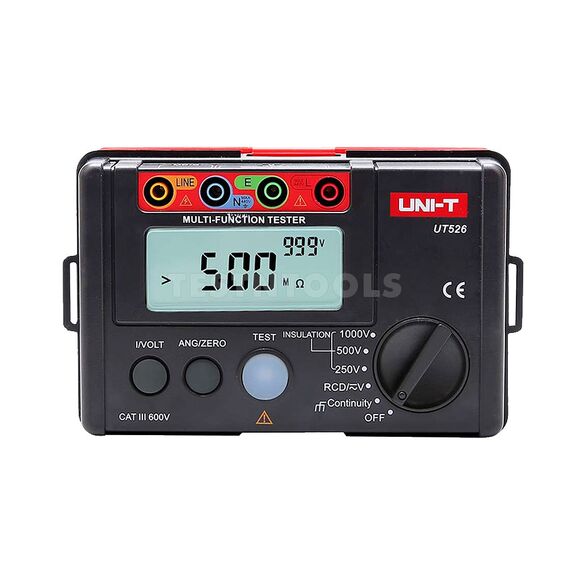

The UT526 is a digital multi-function electrical tester used to test insulation resistance, RCD status, low resistance continuity, and voltage measurements. The Insulation Resistance and RCD testing with the bonus of continuity testing and voltage measurement completing its specifications incorporates the 2 functions in one instrument.
FEATURES
- RCD testing at 10mA, 30mA, 100mA, and 300mA
- Insulation testing can be performed at 250V, 500V, and 1000V
- Measure insulation and continuity tests for RCD
- Large quality LCD display
- Auto range function
- CATIII 300V
- 10000 display count
- Low battery indication
- Auto AC/DC voltage identification
- Red warning lights
SPECIFICATIONS
Insulation resistance Test voltages: 250V/500V/1000V ±10%
250V 0.05MΩ~200MΩ ±(5%+5)
500V 0.05MΩ~300MΩ ±(5%+5)
1000V 0.05MΩ~500MΩ ±(5%+5)
250V (R=250kΩ) 1mA ±10%
Insulation resistance Load current:
250V (R=250kΩ) 1mA ±10%
500V (R=500kΩ) 1mA ±10%
1000V (R=1MΩ) 1mA ±10%
Short circuit current <2mA
RCD Operating voltage 220V (45Hz~65Hz) ±10%
RCD Test current 10mA/30mA/100mA/300mA 0~20%
RCD Trip time:
0ms~2000ms, 1Δn general (10mA)
0ms~500ms, 1Δn general ±(5%+2)
0ms~300ms, 1Δn general (100mA, 300mA)
Low resistance continuity:
Range 0Ω~2000Ω ±(2%+5)
Test voltage Around 5V
Test current >200mA (R<2Ω)
Voltage measurement AC/DC 0~440V ±(5%+2)
Phase switch (RCD) 0°and 180°
Powered by 6 x 1.5V battery ((LR6)
Size 160mm x 100mm x 71mm
Weight 380g
WHAT YOU GET
1 x UT526 Multifunction Insulation and RCD Tester
6 x Batteries
Test leads
Alligator clips
Test line
Gallus
Carrying bag
User manual
Warranty 12 months
