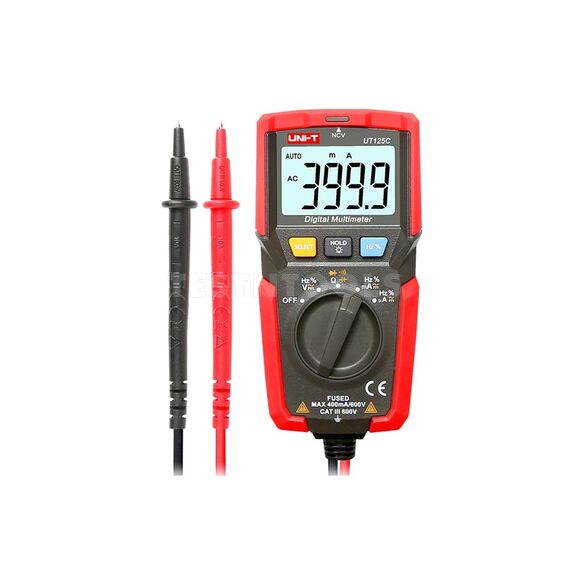

UT125C is a pocket-size reliable multimeter for electronics DIYers working with low currents (< 0.4A). It is CE/cETLus certified and complies with CAT III 600V.
FEATURES
- Small size, easy to carry and operate
- 600V DC/AC voltage measurement
- 400mA DC/AC current measurement
- Resistance/Capacitance/Diode/Continuity test
- Frequency/Duty cycle measurement
- CE (EMC, LVD, RoHS), cETLus certified
- CAT III 600V
- 1m drop proof
SPECIFICATIONS
DC voltage 600V ±(0.5%+5)
AC voltage 600V ±(1.2%+5)
DC current 400mA ±(1.8%+5)
AC current 400mA ±(2%+8)
Resistance 40M? ±(1%+5)
Capacitance 100?F ±(4%+10)
Frequency 10Hz to 60kHz ±(0.1%+5)
Duty cycle 20% to 80% Reference
Operating temperature 0°C to 50°C
Display 38mm x 23mm
Powered by 2 x 1.5V (R03)
Size 112mm x 58mm x 35mm
Weight 180g
WHAT YOU GET
1 x UT125C Pocket Size Digital Multimeter
Batteries
User Manual
Warranty 12 months
