Description

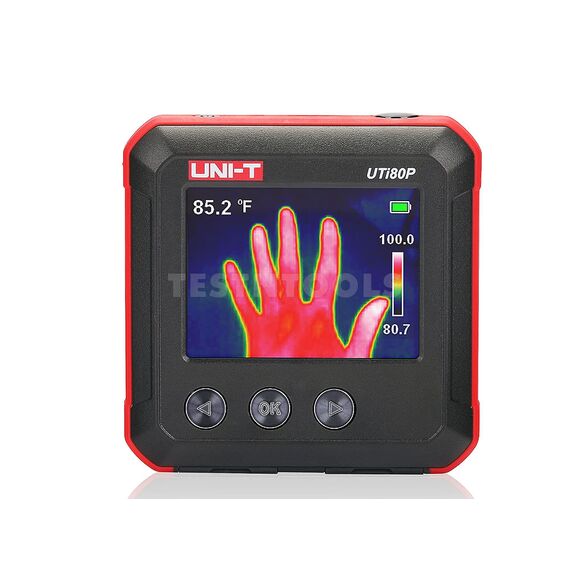

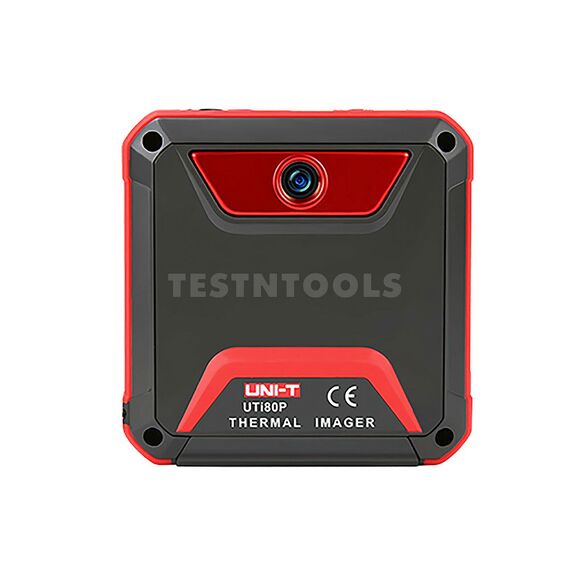

The UTi80P is a portable infrared thermal imager with high-resolution 80×60 pixels that users can observe the target object clearly at night and measure the temperature. It is designed with high and low-temperature alarm/dynamic tracking and adjustable emissivity. The UTi80 Cube has multiple palettes for different scenes and an ideal tool for on-site temperature detection.
FEATURES
- Pocket-sized infrared thermal imager
- PC software for temperature analysis and reporting
- 2.4" TFT LCD
- Stores photos in SD card
- thermal display modes
- Adjustable emissivity
- High/low-temperature tracking
- Rechargeable lithium battery (not included)
- Used in power/HVAC equipment maintenance, electronic power/automotive manufacturing, construction, energy, chemical and smelting industries.
SPECIFICATIONS
Temperature range -10~400ºC
IR resolution 80×60 pixels
Resolution 0.1ºC
Field of view (FOV) 51° horizontal
Thermal sensitivity (NETD) ≤150mk (0.15ºC)
Spatial resolution (IFOV) 11mrad
Frame rate ≤9Hz
Measurement accuracy ±2℃ or ±2% whichever is greater
Display modes Thermal
Powered by 3.7V 1300mAh Li-ion battery (not included)
Size 76mm x 76 mm x 22mm
Weight 125g

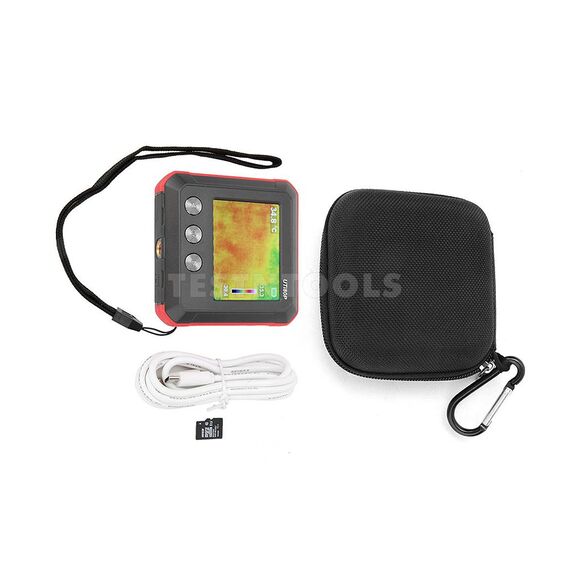

WHAT YOU GET
1 x UTi80P Pocket Thermal Imager
1 x 16gb Micro SD Card
1 x Micro USB Cable
Carrying Bag
User Manual
Warranty 12 months
