UNI-T TDR Cable Tester UT685B-KIT

UT685B-KIT
$37000
In stock
Shipping Information
Find similar
Description

The UT685B KIT is the ultimate cable testing solution, supporting twisted pair, coaxial, and POE cables. It quickly identifies cable type, length, line sequence, and POE standards. With built-in RJ11, RJ45, and coax ports, there's no need for adapters. Ideal for telecom, power, and industrial applications, it boosts efficiency and simplifies troubleshooting


FEATURES
> 2.8 inch backlit LCD display
> Graphical interface
> Cable length test

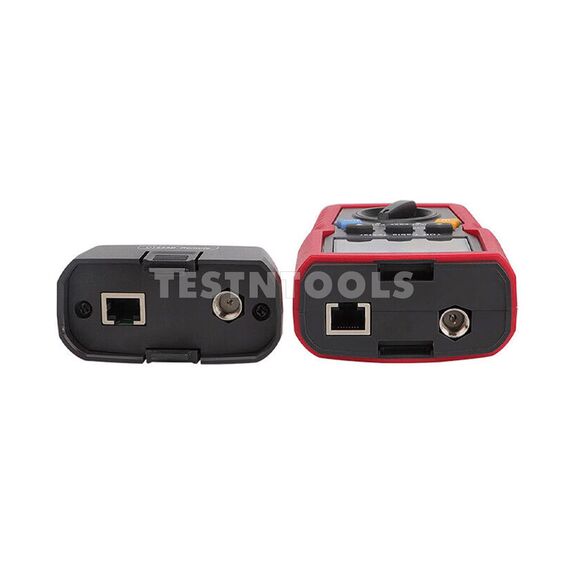

> Tests RJ11, RJ45 and coaxial cable types
> Identify POE standards
> Digital hunt
> Range 500m
> Resolution 0.33m
> 70V DC input protection
> TDR technology: no blind area testing


SPECIFICATIONS
Tested cable type: Twisted pair cable:
  1. UTP (unshielded cable),
  2. FTP (aluminium foil shielded cable);
  3. SSTP (double shielded network cable);
  Coaxial cable: 50Ω, 75Ω, 93Ω
Cable length test
  Range: 500 m
  Resolution: 0.33 m
  Accuracy:  ± 4% or 0.6 m
POE detection
  POE power detection
  POE standard: 802.3AF
  POE standard: 802.3AT
Ethernet port test
Cable location
Port blinks
Input protection 70VDC
Screen 2.8" LCD
Auto power off    Around 10 minutes

Powered by 4 x AAA alkaline batteries
Size 180mm x 84mm x 37.8mm

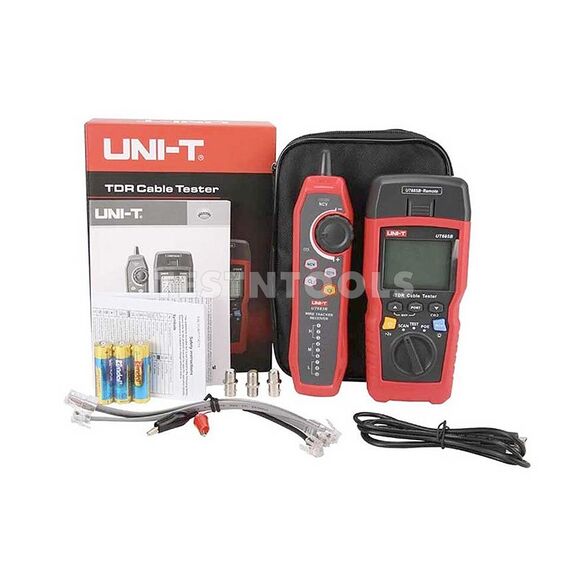

WHAT YOU GET
1 x TDR Cable Tester UT685B-KIT
1 x RJ45 adapting cable
1 x RJ11 adapting cable
1 x RJ11 adapting cable (adapted to alligator clip)
1 x Plug
1 x F-connector to F-connector
User manual


Warranty 12 months
