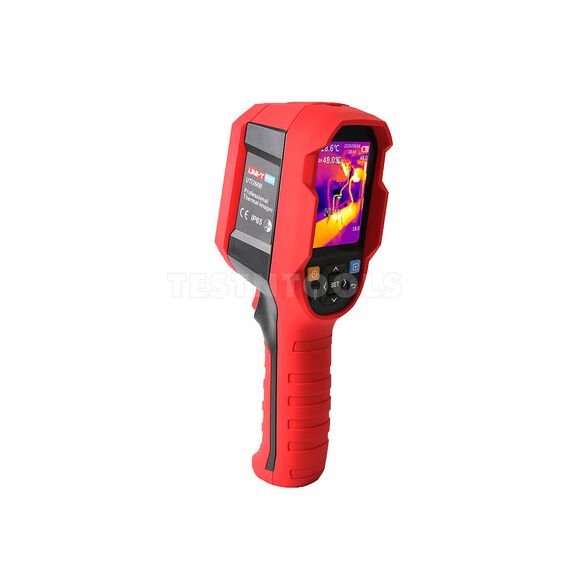

The UTi260B is an infrared thermal imager designed to detect abnormal temperature points and combines surface temperature measurements with real-time thermal images. It adopts a UFPA detector to ensure excellent infrared resolution with 7 varieties of palette mode.
FEATURES
- Real-time image transmission
- Infrared resolution 80 x 60 to 256 x 192 pixels
- Thermal, blending, visible, PIP display mode
- Auto capture of Hi/Low temperature
- 2.8" TFT LCD Display screen
- Rechargeable lithium battery (not included)
- IP65 rating, 2m drop-proof test
- PC software for data analysis and report output
- Buzzer/flashlight alarm
- 1/4" tripod mounting hole
- Focus free
- CE / RoHS Certified
SPECIFICATIONS
Temperature range -15ºC to 550ºC
IR resolution 256x192 pixels
Field of view (FOV) 56°×42°
Thermal sensitivity (NETD) 50mk
Spatial resolution (IFOV) 3.8mrad
Frame rate 25Hz
Measurement accuracy ±2ºC or ±2% whichever is greater
Palettes 7
Emissivity Adjustable (0.01-1)
Display 2.8" LCD
Powered by 3.6V 5000mAh Li-ion battery (not included)
Size 236mm x 75.5 mm x 86mm
Weight 910g
WHAT YOU GET
1 x UTi260B Thermal Imager
1 x Micro SD Card
1 x Micro USB Cable Type C
User Manual
Warranty 12 months
