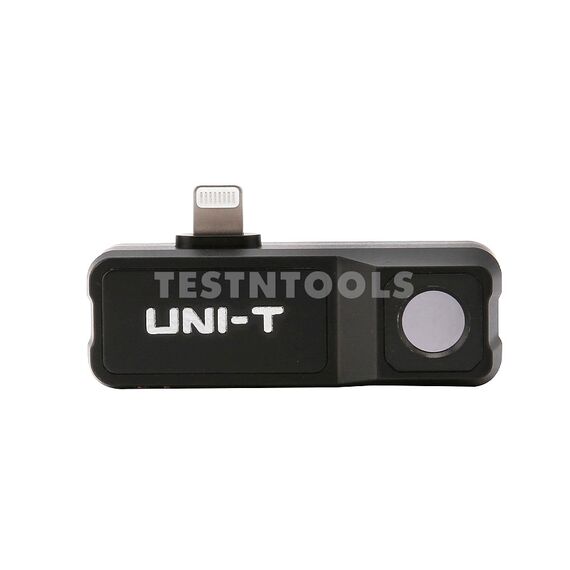

UNI-T Thermal Imaging Camera for iPhone iOS UTI120MS

UTI120MS
$47149
$70600 -33%
In stock
Shipping Information
Description
The UTi120MS is a professional smartphone thermal imaging camera module for iPhone. It provides clear images with a fast response and can detect temperatures up to 400℃. Compact, portable, and easy to operate through connecting with mobile phones, this is the perfect tool for DIY homeowners, manufacturers, engineers, contractors, and builders.

FEATURES
> Image capture
> Video recording
> Auto alarm for high/low temperature
> Auto tracking for hot spot/cold spot
> On-screen analyzer: Point 6/ Line 6/Rectangle 6/Circle 6
> Image modes: Thermal, Fusion, PIP
> Color palettes: 7 (White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
> Phone: iPhone (USB LightningType-C interface)
> Image/Video storage format: JPEG, MP4
> 1m extension cable
> 2m drop proof
> Certificates: CE,UKCA, FCC,RoHS, MFi

SPECIFICATIONS
IR resolution 120×90 pixels
Field of view (FOV) 50°×38°
Thermal sensitivity (NETD) ≤60mK @25℃
Spatial resolution (IFOV) 7.3mrad
Frame rate ≤25Hz
Spectral range 8-14µm
Focus Focus free
Lens focal length 2.28mm
Temperature measurement range -20℃ - 400℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01 - 1.00 adjustable (0.95 default)
Dimensions 53mm × 18.2mm × 18.5mm
Weight 25g


Warranty 12 months
