UNI-T True RMS Datalogging Multimeter With PC Interface UT181A

UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.

FEATURES
- Auto/Manual range
- Trend capture
- Data comparison
- MAX/MIN/AVG
- Dual temperature measurement
- Input protection
- Low pass filter
- AC+DC/Continuity buzzer
- Real time and date
- Data hold/Peak hold

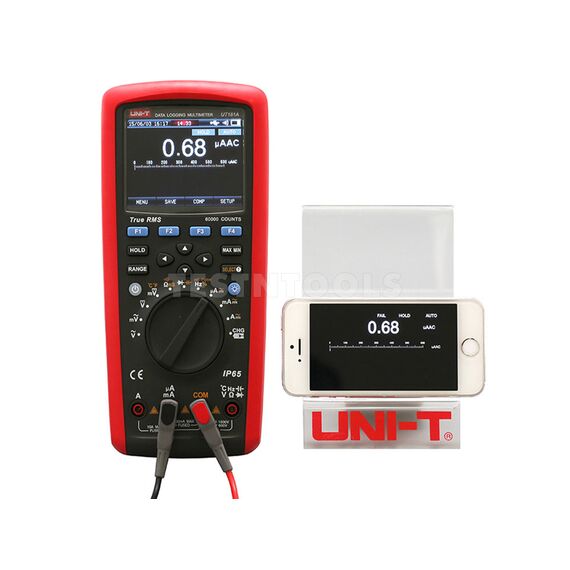

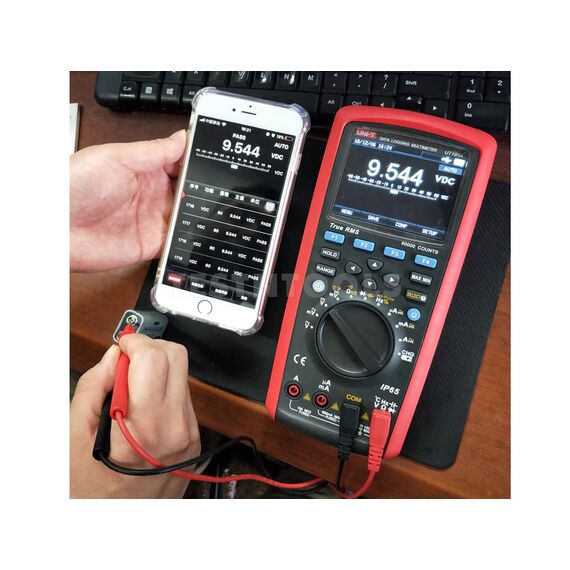

- Bluetooth/APP
- USB interface cable /PC software CD
- Analog bar graph
- IP65
- Mis-plug alarm
- Rechargeable battery

SPECIFICATIONS
Data logging 20000
DC voltage 1000V
Accuracy ±(0.025%+5)
AC voltage 1000V
Accuracy ±(0.3%+30)
DC current 10A
Accuracy ±(0.08%+10)
AC Current 10A
Accuracy ±(0.6%+20)
Resistance 60M?
Accuracy ±(0.05%+2)
Capacitance 60mF
Accuracy ±(2%+5)
Admittance 60nS
Accuracy ±(2%+10)
Frequency 10Hz~60MHz
Temperature -40°C~1000°C
Display count 60,000
Bandwidth 100kHz
Duty cycle 10%~90%
Display 3.5-inch 64K color TFT LCD

Powered by 7.4V 2200mAh Li-ion
Size 225mm x 103mm x 59mm
Weight 638.6g

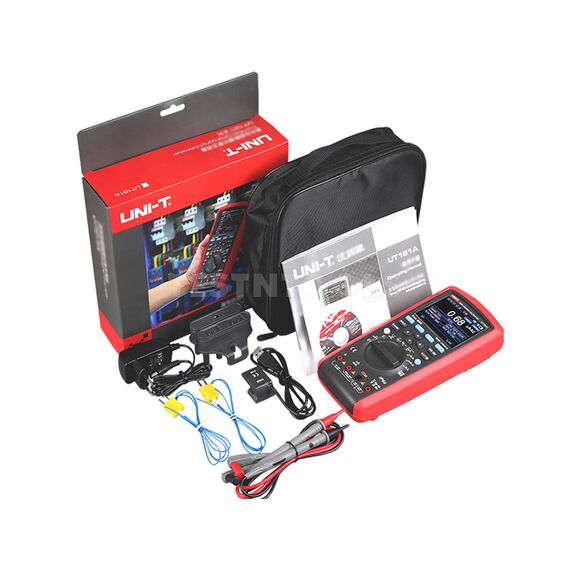

WHAT YOU GET
1 x UNI-T True RMS Datalogging Multimeter With PC Interface UT181A
1 x Test Leads
1 x Point Contact Temperature Probes
1 x Temperature Adaptor Socket
1 x Power Adaptor Socket
1 x Power Adaptor
1 x Battery
USB interface cable
PC software CD
Carrying Bag
Manual


Warranty 12 months
