Description

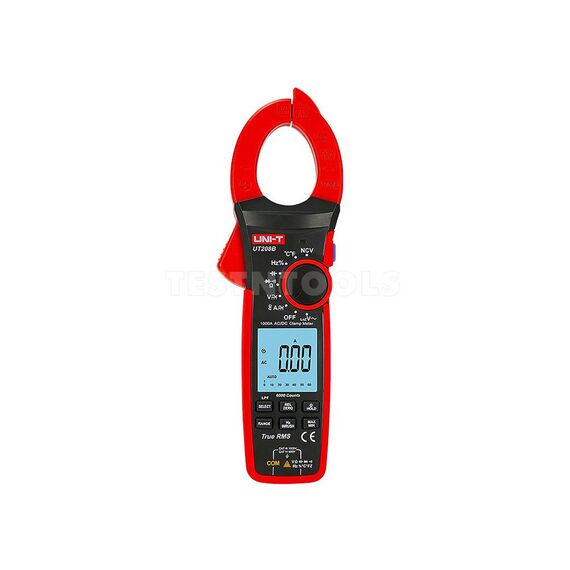

The UT208B is a true RMS digital clamp meter with auto range, autoscale memory, NCV functions and LoZ mode for eliminating ‘ghost’ voltage. It features high-precision temperature measurement with 0.1 °C resolution with LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current.
FEATURES
- CAT II 600V / CAT III 300V rating
- AC/DC readings
- True RMS
- Auto / Manual Range
- NCV Multi-Segment Display
- Continuity test and frequency
- Data hold, Zeroing function, Flashlight button
- Sleep mode, Auto power off and low battery indication
- Low battery display, Display backlight
- Measurement update speed 3 times/second
- Audio/visual alarm
- Inrush current (A)
- 6000 display count
- Flexible current probe (optional) to extend the AC current measurement range to 3000A
SPECIFICATIONS
AC current 1000A ±(2%+5)
DC current 1000A ±(2%+5)
AC current frequency response 40Hz~400Hz
Inrush current 1000A ±(10%+10)
AC voltage 6V ±(1.2%+3), 60V/600V/1000V ±(1%+8)
DC voltage 600mV ±(0.8%+3), 6V/60V ±(0.5%+5), 600V ±(0.5%+5), 1000V ±(0.5%+5)
Low pas filter (LPF ACV) 600V/1000V ±(2%+5)
AC voltage frequency response 40Hz~400Hz
LoZ ACV 600V/1000V ±(2%+5)
Resistance 600Ω ±(1%+3), 6KΩ/60KΩ/600KΩ ±(1%+2), 6MΩ/60MΩ ±(2%+8)
Capacitance 60nF ±(4%+25), 600nF/6μF/60μF/600μF ±(4%+5), 6mF/60mF ±(10%+9)
Temperature -40°C~300°C ±(1%+20), 300°C~1000°C ±(1%+2)
Low voltage frequency 10Hz~1MHz ±(0.1%+3)
Display count 6000
Jaw opening 42mm
Current frequency 50Hz~60Hz
High voltage frequency 40Hz~400Hz
Analog bar 31
Powered by 3 x 1.5V (R03)
Size 272mm x 81mm x 43.5mm
Weight 420g
WHAT YOU GET
1 x UT208B Digital Clamp Meter
1 x Point Contact Temperature Probe
1 x Test Leads
3 x Batteries
Carrying Bag
User Manual
Warranty 12 months
