Description

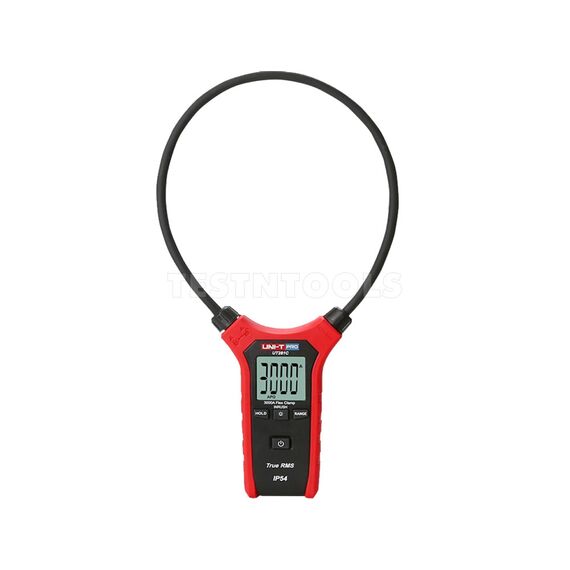

The UT281A True RMS Flex Clamp can measure large current in various harsh and hard to reach environment. It is designed with Rogowski flex coil and can test up to 3000A AC current. Due to the ease in operation, accurate readings, stable performance, and reliable quality, this flex clamp is an ideal tool for electricians.
FEATURES
- True RMS
- ETL/Intertek certified 3rd edition CE
- Coil diameter: 0.75cm, bending length: 45.7cm

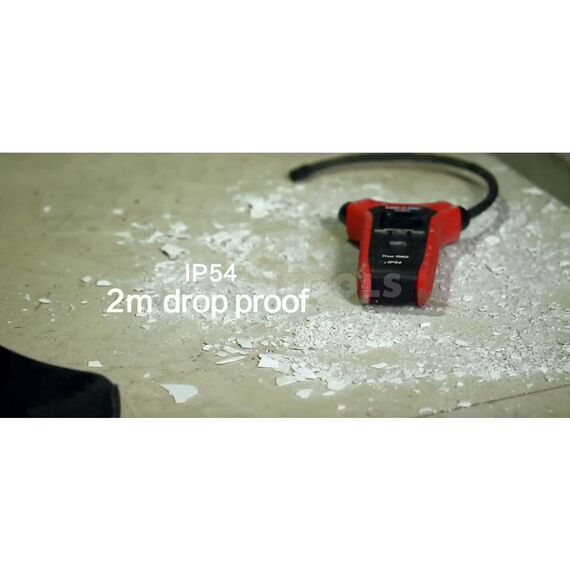

- 2 metre drop proof
- Large LCD display for clear reading
- Long press INRUSH key for 2s to measure inrush current
- 3000 display count
- Manual range selection
- LCD display
- Auto power off
- Flashlight and LCD backlight
- Data hold
- Continuity buzzer, low battery indication
- IP54 rated
SPECIFICATIONS
AC Current 30A/300A/3000A ±(3%+5)
Frequency response 45Hz~500Hz (sine wave)
Inrush current 0.5A~3000A (for reference)
Flex coil size 10" (254mm) radius: 1.5" (3.8mm)
Refresh rate 3 times/s
Powered by 3 x 1.5V (R03)
Size 300mm x 150mm x 55mm
Weight 221.7g

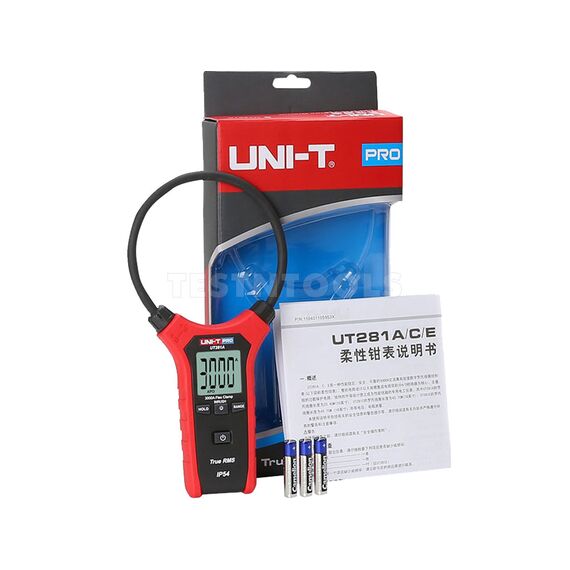

WHAT YOU GET
1 x UT281A True RMS Flex Clamp
1 x PC Software CD
3 x Batteries
User Manual
Warranty 12 months
