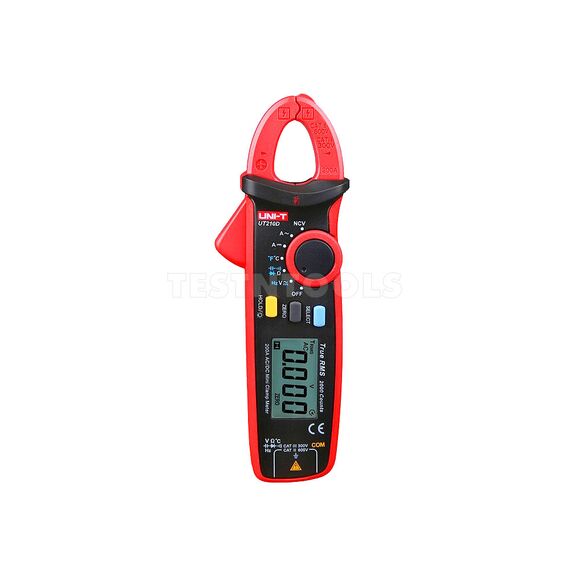

UNI-T True RMS Mini Clamp Meter UT210D

UT210 series Mini Clamp is provided with the features of high reliability, security, auto range, and small-size. It can test the small current signal precisely; the chip itself has VFC start-up model and there is a specific filter circuit inside, which can filter the high frequency interference signal and ensure the accuracy of the measurement. It can be applied in variable frequency voltage and current with VFC.

FEATURES
- True RMS
- CAT II 600V / CAT III 300V rating
- Auto Range
- NCV
- Ergonomic and lightweight
- MAX/MIN mode, Zero mode
- 2 - 3 times/s sampling rate
- LCD backlight
- Data hold
- Auto power off
- Low battery indication
- Low pass filter
- Continuity Buzzer
- Input Protection

SPECIFICATIONS
Jaw opening 17 mm
AC Current 200A ±(2.5%+8)
DC Current 200A ±(2%+3)
AC voltage 600V ±(1%+3)
DC voltage 600V ±(0.7%+3)
Resistance 20MΩ ±(1%+2)
Frequency 60kHz ±(0.1%+4)
Capacitance 20mF ±(4%+5)
Temperature -40~1000C (9-40~1832F)
Diode test 3V
Display Count 2,000

Powered by 2 x 1.5V (R03)
Size 175mm x 60mm x 33.5mm
Weight 170g

WHAT YOU GET

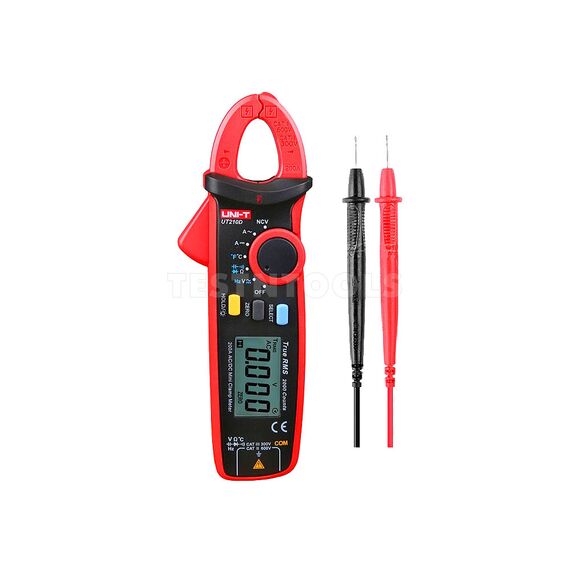

1 x UNI-T True RMS Mini Clamp Meter UT210D
1 x Test Leads
2 x Batteries
Carrying Bag
Manual

Warranty 12 months
