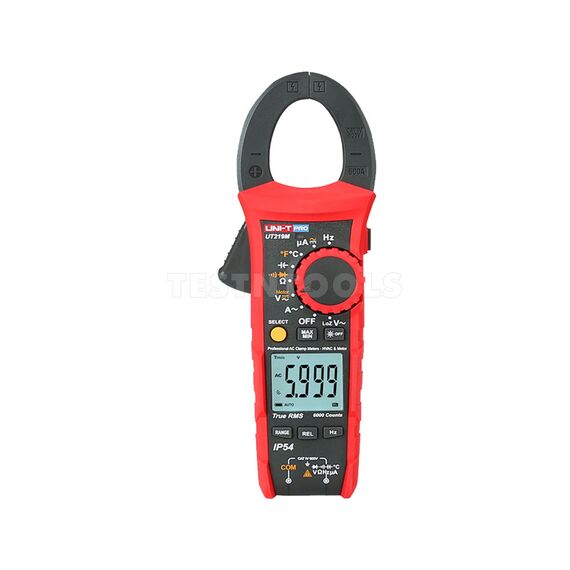

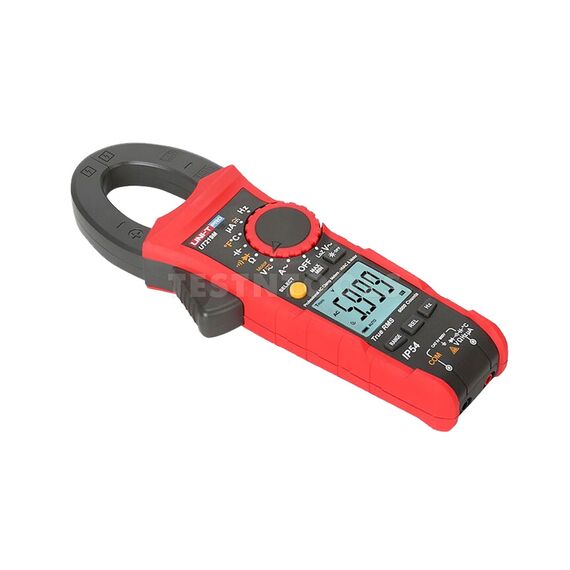

The UT219M is 600A True RMS Professional Clamp Meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.
FEATURES
- True RMS
- LoZ input for ghost voltage measurement
- Flashlight and auto backlight
- 2 metre drop test
- 3-phase motor sequence test
- Temperature and μA measurements (flame sensor)
- Auto/Manual range, 3 times/s sampling rate
- Data hold, max/min, relative modes
- Auto power off
- ZERO mode
- Low battery indication
SPECIFICATIONS
Jaw opening 33 mm
AC Current 600A ±(1.8%+6)
AC voltage 1000V ±(1%+6)
DC voltage 1000V ±(0.6%+3)
LoZ ACV 600V ±(2.5%+6)
Resistance 60M? ±(1%+3)
Capacitance 60mF ±(4%+7)
Frequency 600Hz~40MHz ±(0.1%+5)
Temperature -40C ~ 1000C ±(2%+5C)
AC current/voltage frequency response 40Hz~400Hz
Diode test 3V
IP rating IP54
Powered by 3 x 1.5V (R03)
Size 234.6mm x 82mm x 47mm
Weight 310g

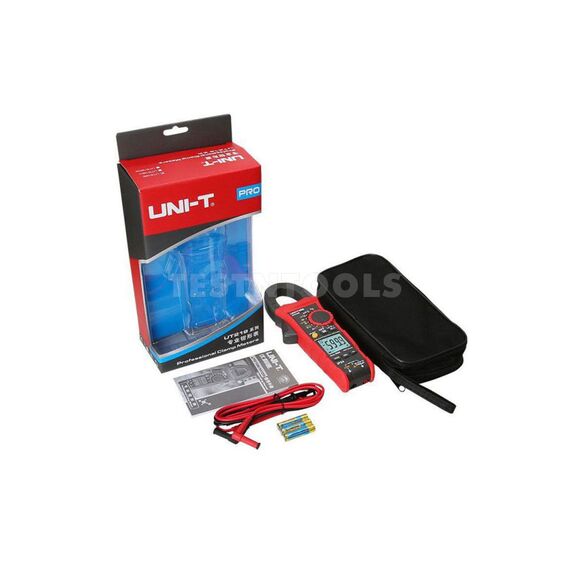

WHAT YOU GET
1 x UT219M Digital Clamp Meter
1 x Point Contact Temperature Probe
1 x Test Leads
3 x Batteries
PC Software CD
Carrying Bag
User Manual
Warranty 12 months
