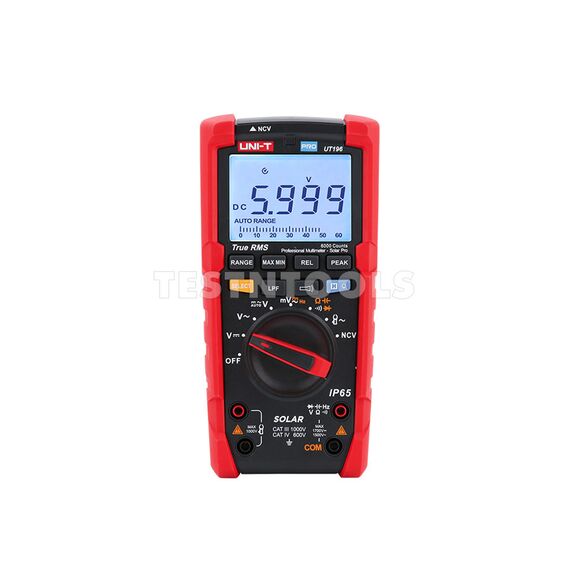

UNI-T True RMS Professional Multimeter Solar Pro UT196

UT196
$39330
Out of stock
Shipping Information
Find similar
Description

The UT196 True RMS Solar Digital Multimeter is a rugged, reliable tool for solar power system maintenance. With capabilities like measuring up to 1700V DC, 1500V AC, and 3000A AC (via clamp), it’s built for tough outdoor work. IP65 protection, drop resistance, and a flashlight ensure peak performance in any environment.


FEATURES
> True RMS
> CAT III 1000V, CAT IV 600V rating
> Measure up to 1700V DC and 1500V AC for high voltage applications
> IP65 protection
> Analog bar, auto range, dual display
> Drop Proof up to 2 meters
> Frequency response:45Hz~1kHz
> Low-pass filter function
> Low impedance mode
> Built-in flashlight, bright backlight and visual alarm
> NCV, Diode test, continuity, relative mode, peak hold, Max/Min
> Low pass filter(LPF), Audible visual indication, data hold, Analog bar graph


SPECIFICATIONS
DC voltage 1700V ±(0.2%+5)
AC voltage 1500V ±(0.8%+3)
Frequency 1MHz ±(0.08%+4)
Resistance 60MΩ ±(0.8%+2)
Capacitance 60mF ±(1.9%+5)
Display count 6000

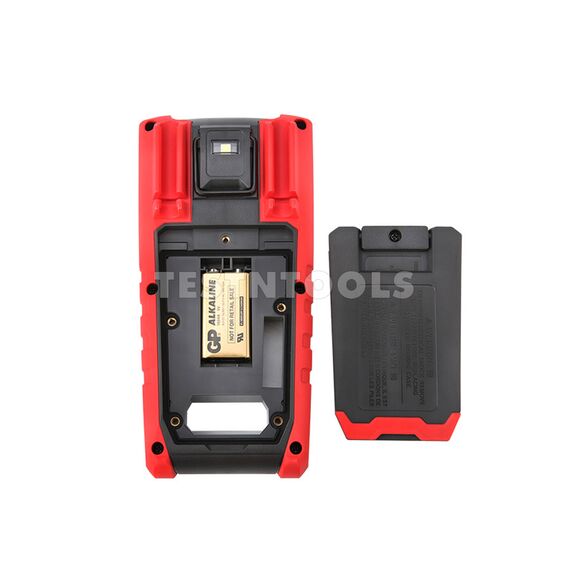

Powered by 9V
Size 195mm x 95mm x 58mm
Weight 485g


WHAT YOU GET
1 x UT196
1 x Test leads
1 x Battery
Carrying Bag
Manual


Warranty 12 months
