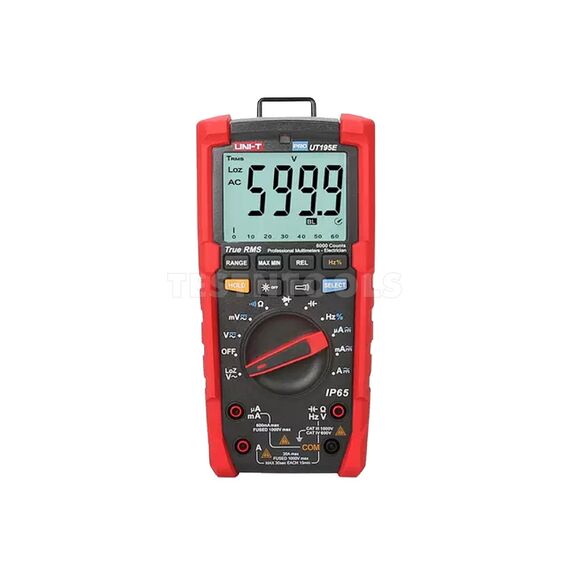

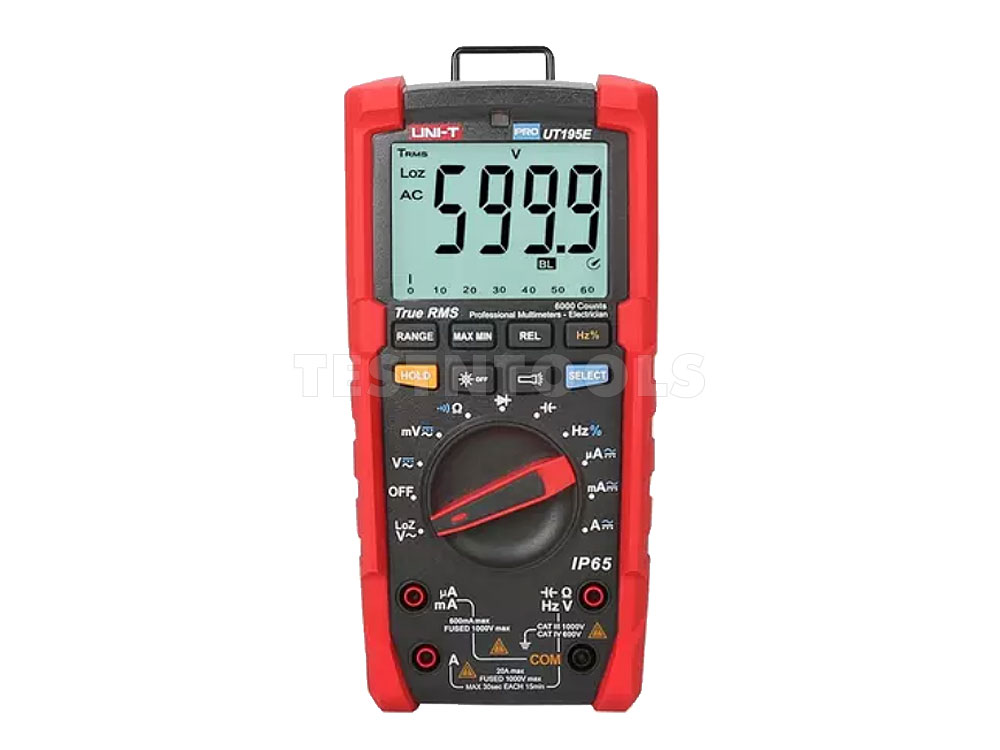

The UT195E is handheld industrial digital multimeter with IP65 and 2 meter drop proof. It can be applied in mines, oilfields and other harsh environments. Compared to traditional multimeters, the UT195 series troubleshooting capability, resolution and precision are improved to find issues related to motor drive, factory equipment, maintenance, electrical distribution, and more. It is exquisitely designed and easy to operate.
FEATURES
- True RMS
- CAT III 1000V/IV 600V rating
- ACV 750V 5kHz bandwidth
- IP65 Water Proof / GS Certified 3rd edition CE
- 2 metre drop proof
- Flashlight, Auto backlight
- Large 6000-count LCD screen
- LoZ voltage test, for ghost voltage measurement
- Motor Phase Sequence Measurement by 2 test lead
- 31 sections analog bar
- 20A current measurement (max 30 seconds)
- Diode/Continuity test
SPECIFICATIONS
DC voltage 1000V ±(0.5%+3
AC voltage 1000V ±(1.%+3)
LoZ ACV 600V ±(2%+3
DC current 20A ±(0.8%+3
AC Current 20A ±(1%+3)
Resistance 60MΩ ±(0.8%+2)
Capacitance 60mF ±(3%+5)
Frequency 60Hz~10MHz ±(0.1%+4)
Temperature -40°C~1000°C
Duty cycle 0.1%~99.9% ±(2%+5)
Display count 6,000
Analog bar sampling rate 10
AC voltage/current frequency response 45~400Hz
Bandwidth 400Hz
Powered by 9V
Size 195mm x 95mm x 58mm
Weight 437g
WHAT YOU GET
1 x UNI-T True RMS Professional Multimeter UT195E
1 x Test probes
1 x Battery
Carrying Bag
Manual
Warranty 12 months
