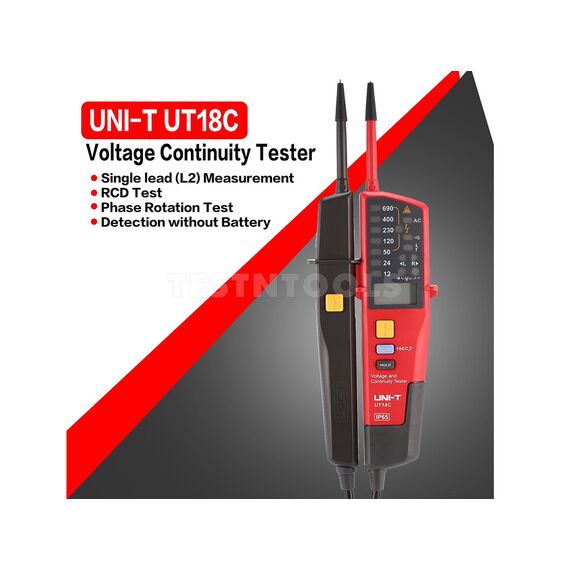

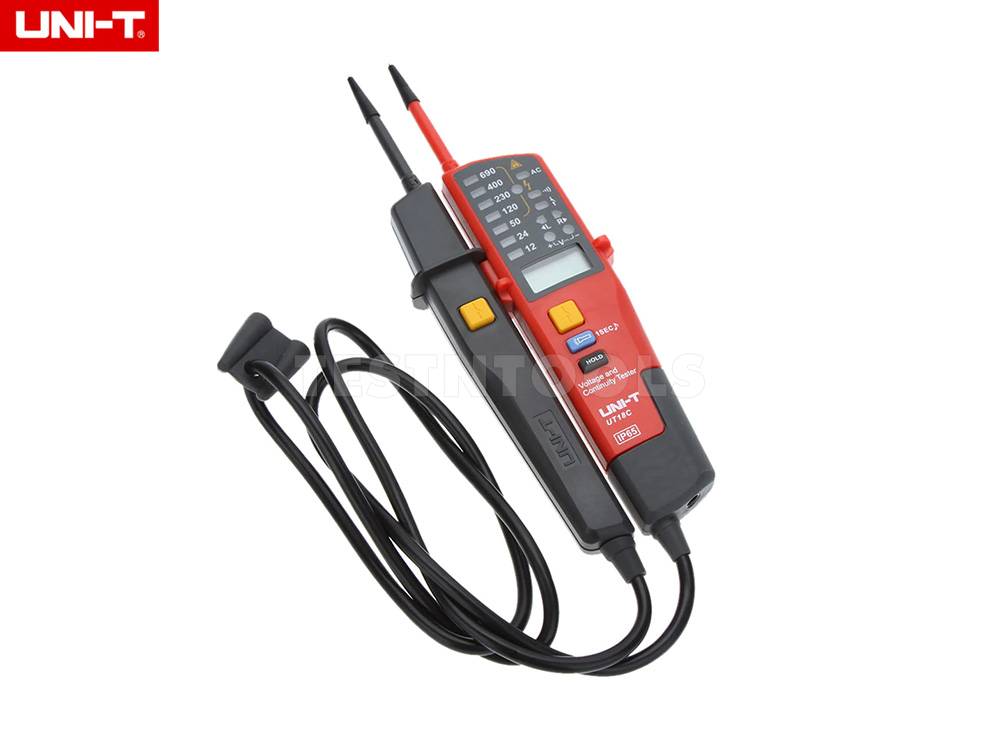

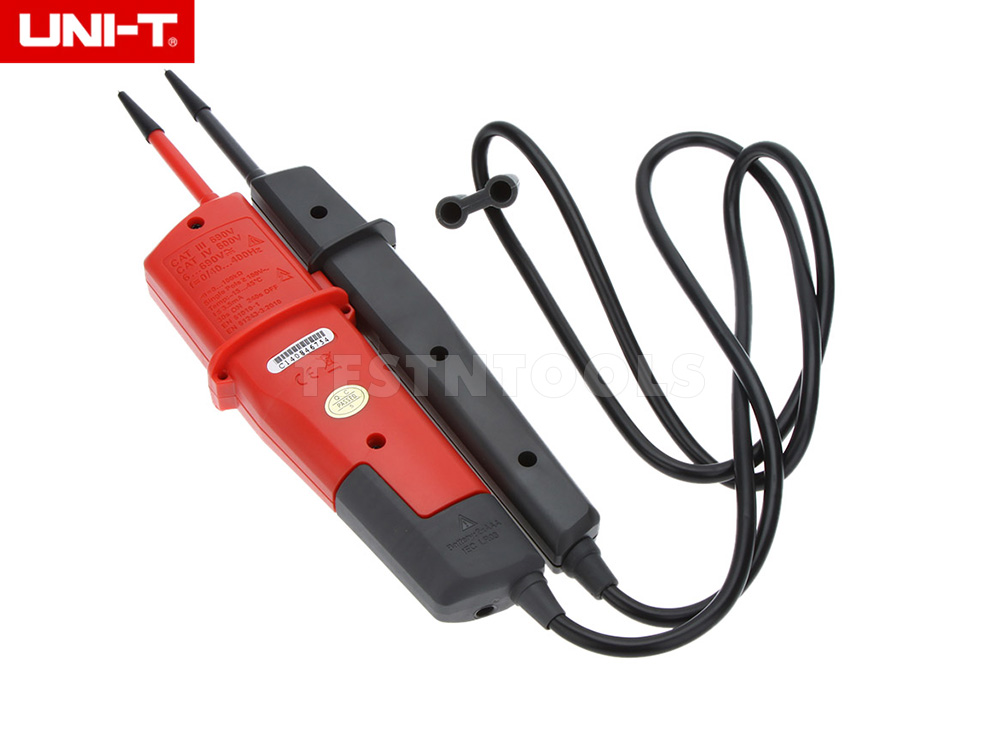

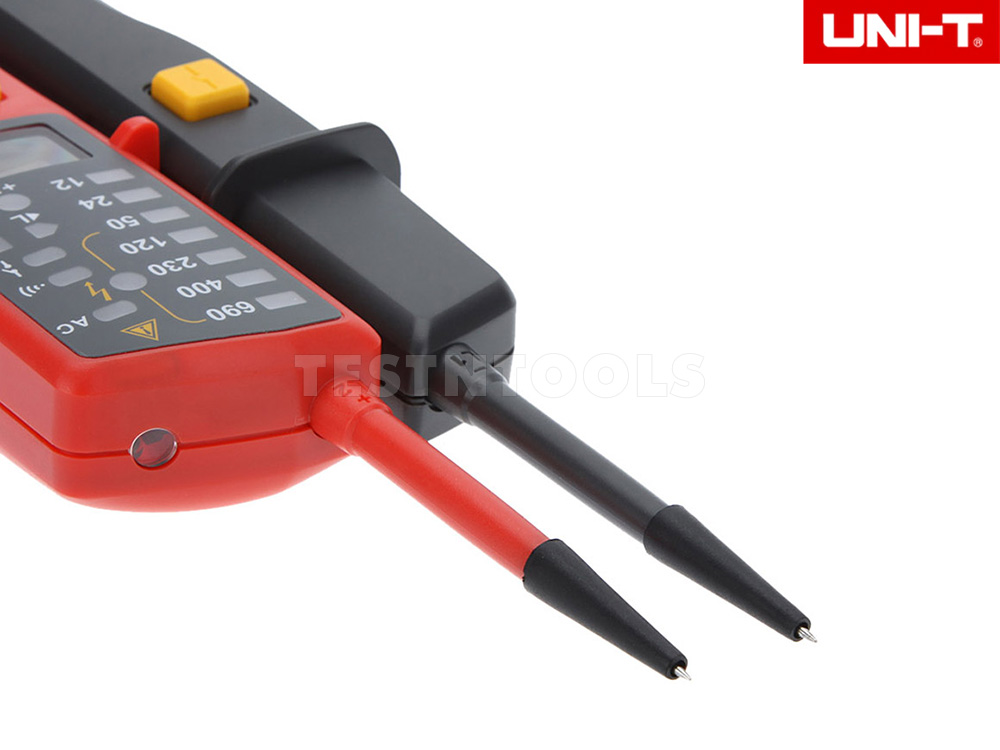

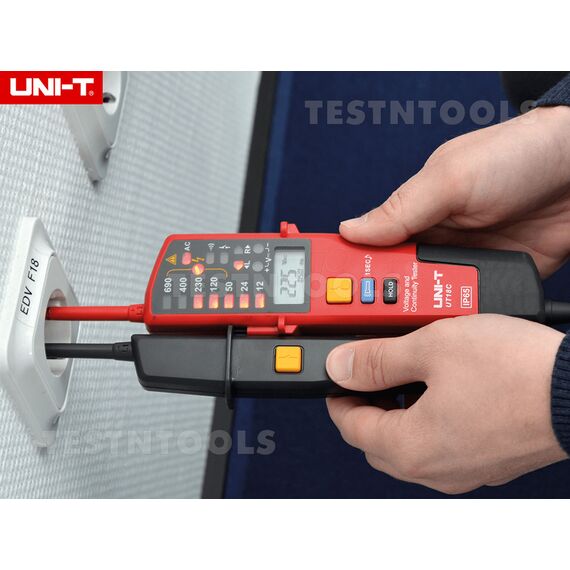

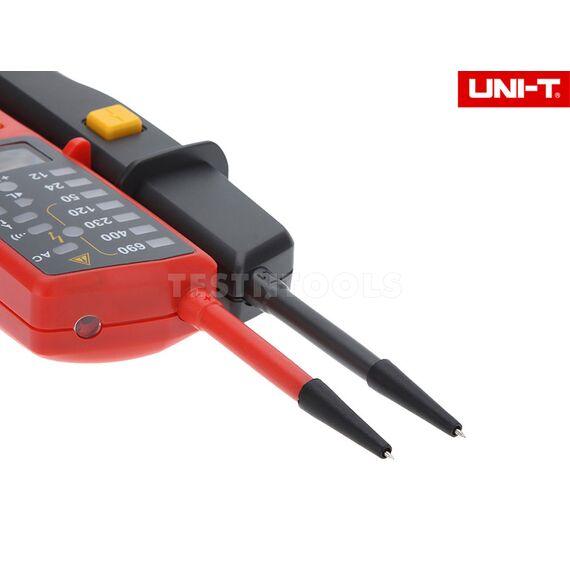

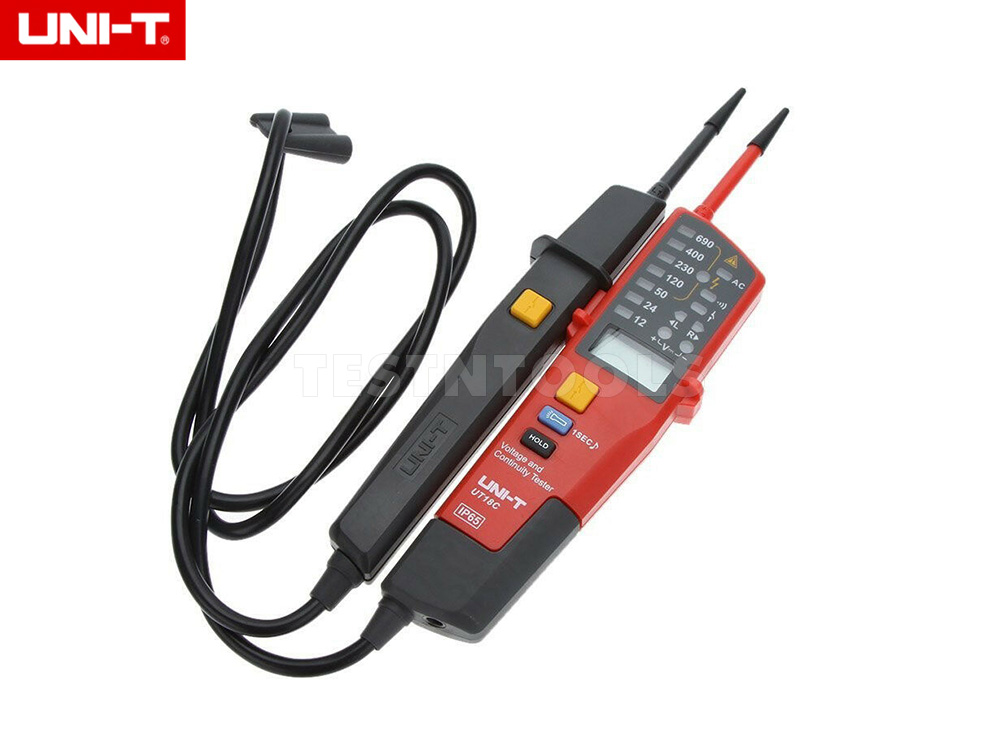

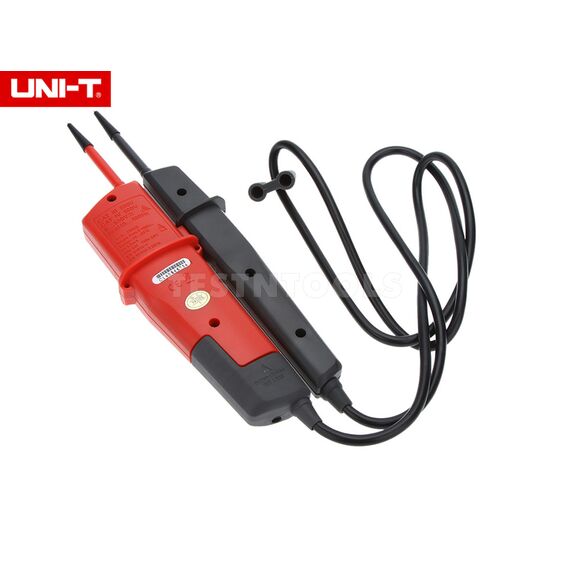

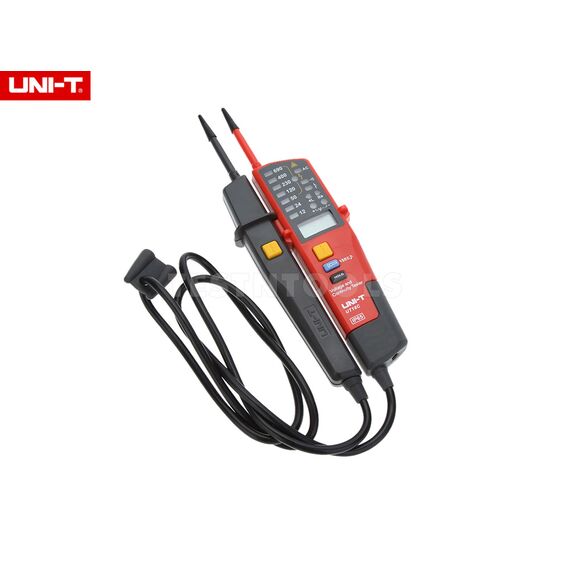

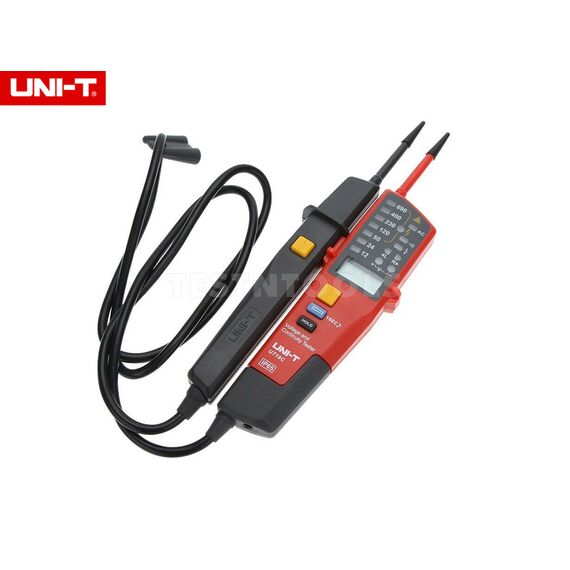

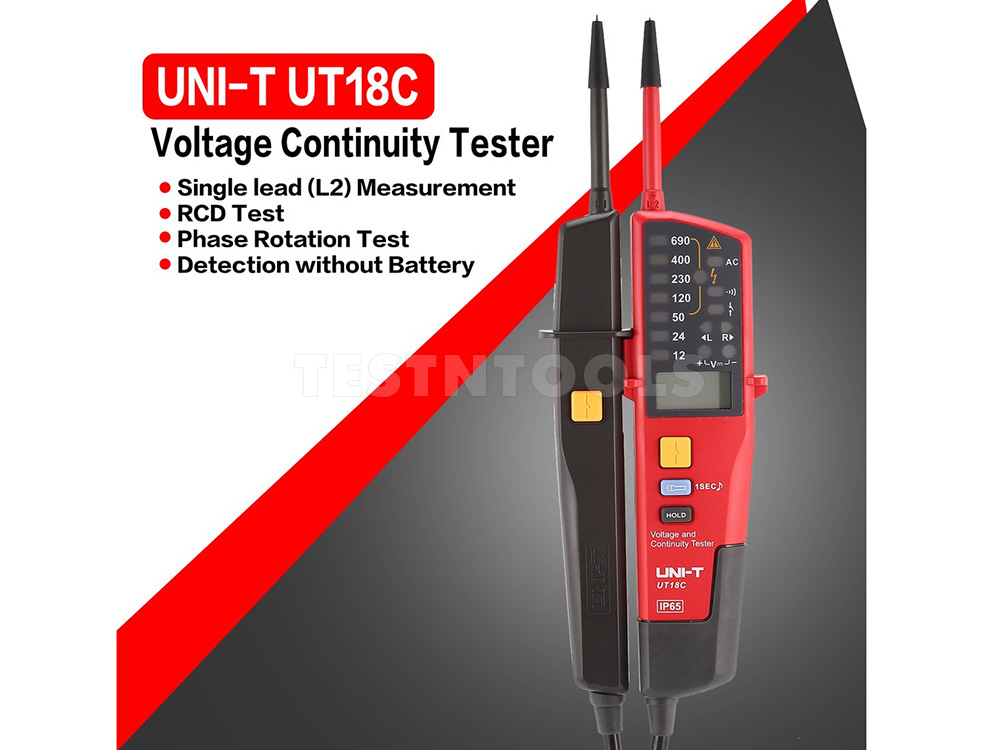

UNI-T Voltage And Continuity Tester UT18C

The Uni-T UT18C provides AC and DC voltage (including three-phase AC) measurement, phase of three-phase AC power indicator, on-off test, RCD Test, NCV (Non-Contact Voltage) test, self-checking, no battery detection and other functions.

FEATURES
- Auto range
- LED and LCD display
- Continuity buzzer
- Data hold
- RCD test
- Phase rotation test
- Single lead (L2) voltage detection
- Self-inspection
- On-off test
- Integrated LED light
- No battery detection
- Polarity detection
- Over voltage indication
- Low battery indication
- Auto standby
- Silent mode
- IP65 protection

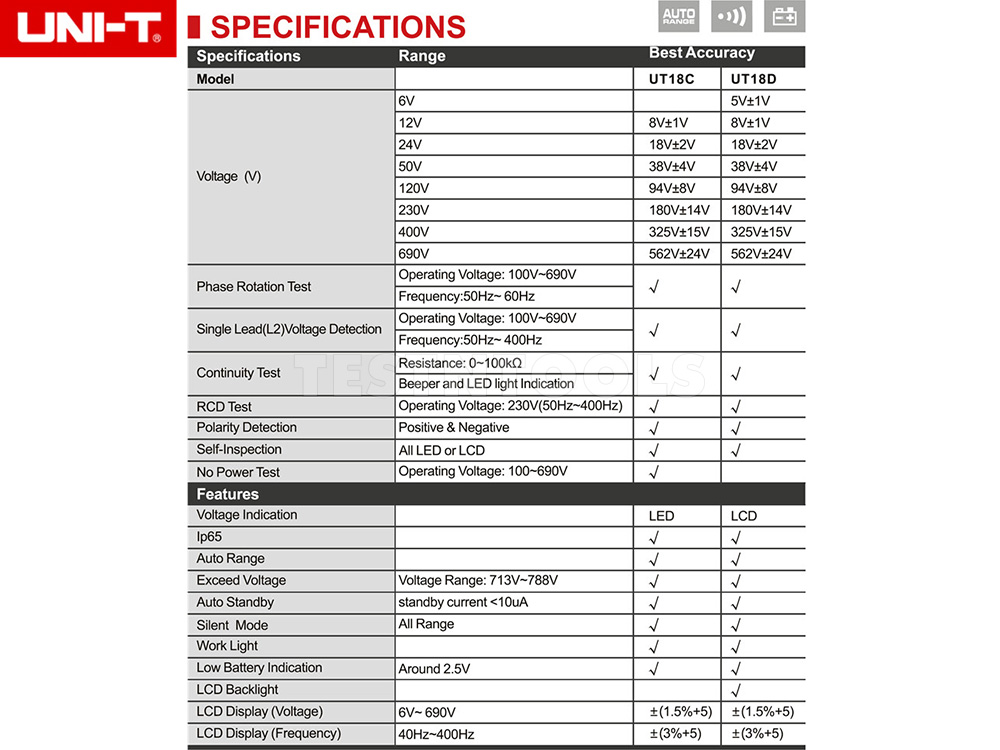

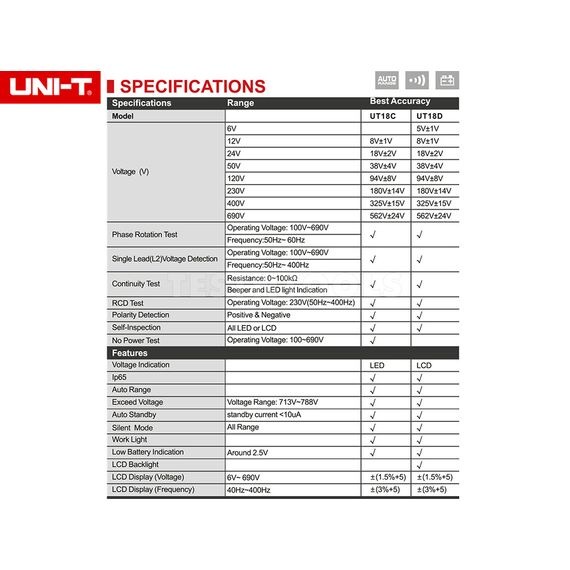

SPECIFICATIONS
LCD displays voltage 6-690VAC +/-(1.5%+5)
LCD displays frequency 40-400Hz +/-(3%+5)
LED voltage indication
12V min 8V±1V
24V min 18V±2V
50V min 38V±4V
120V min 94V±8V
230V min 180V±14V
400V min 325V±15V
690V min 562V±24V
Phase rotation test 100V~690V, 50Hz~60Hz
Single pole test 100V~690V, 50Hz~60Hz
No power test 100V~690V
Polarity detection
RCD test
Self-test

Powered by 2 x 1.5V AAA batteries (included)
Size 272L x 85W x 31D mm
Weight 280g

WHAT YOU GET
UNI-T Voltage And Continuity Tester UT18C
Batteries
Manual


Warranty 12 months
