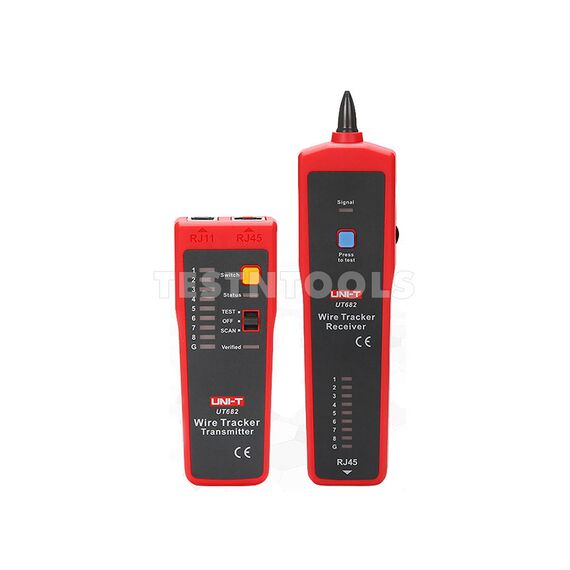

UNI-T Wire Tracker UT682

UT682
$11590
In stock
Shipping Information
Find similar
Description
Unveiling the UT682 Wire Tracker: Your ultimate solution for tracing ethernet, telephone, and power cables without insulation disruption. This dynamic duo swiftly troubleshoots ethernet cables, making it a must-have for debugging communication and audio/video cables. Get seamless tracking and debugging in one compact toolset!


FEATURES
> Telephone/ethernet/power cable tracking
> DC level test can check voltage level and polarity
> Ethernet cable wiring sequence verification
> Indication light for signal strength
> Live switchboard wire tracing
> Broken wire tracking
> Fast open/short circuit test
> Volume adjustment
> Polarity indication for telephone lines
> Telephone lines and LAN cable jacks distinction
> Line sequence measuring speed
> Headset connection for noisy environment
> Dual measurement cycle mode
> Low battery indication

SPECIFICATIONS
Switchboard wire tracing distance ≥100m
Telephone lines tracking distance ≥3000m
Unshielded cables tracking distance ≥320m
Shielded cables tracking distance ≥320m
Wire types LAN cable, telephone line, coaxial cable, electric wire
Polarity indication for telephone lines DCV function range: ±(5V~52V)
Transmitter output voltage ≥12V peak-peak
Transmitter low battery indication 6.6V±0.5V
Max transmitter working current 25mA
Max receiver standby current ~10mA
Max receiver operating current <40mA (AC, RMS)
Line sequence measurement 9 LEDs (LED1~LED8, LED_G)
Transmitter input voltage protection 52V DC

Powered by
  Transmitter power supply 9V battery
  Receiver power supply 9V battery
Transmitter size 125mm x 48mm x 28mm
Receiver size 195mm x 48mm x 30mm
Weight 300g

WHAT YOU GET
UT682 Wire Tracker
2 x Battery 9V
RJ11 cable
RJ45 cable
RJ11 cable with alligator clips
Carying bag
User manual


Warranty 12 months
