UNI-T Wireless High Voltage Clamp Ammeter 69kV UT255B

UT255B
$2,77810
Out of stock
Shipping Information
Find similar
Description

THIS ITEM IS AVAILABLE ON SPECIAL ORDER. PLEASE CONTACT US TO CONFIRM AVAILABILITY

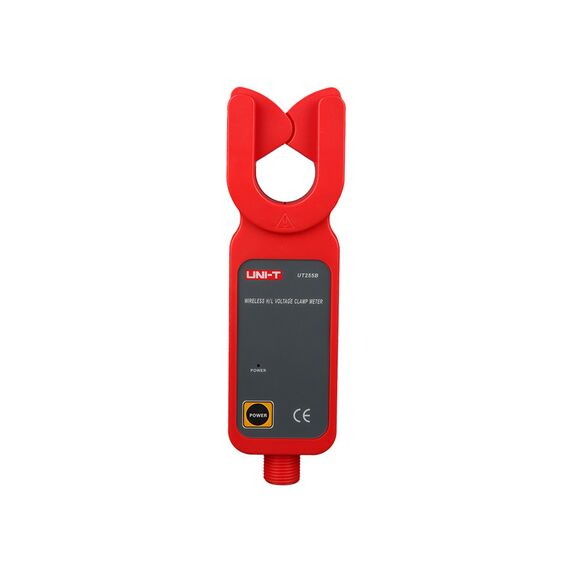

The UT255B wireless high-voltage clamp ammeter is capable of measuring both high-voltage line current and leakage current, with a maximum capacity of 69kV. The UT255B wirelessly transmits data in real-time up to 30m range. The clamp can be effortlessly detached from the wire by either pressing or pulling back the insulation rod.


FEATURES
> Capacitance measurement
> Resistance measurement
> Auto range, 2 times/s sampling rate
> Peak hold
> Automatic plug clamp
> RS-232 interface
> Data hold
> Auto power off
> LCD backlight
> Manual range/stores 99 sets of data
> Overload protection, low battery indication

SPECIFICATIONS
Leakage current 0.01mA-100A ±(1%+5); 100A-600A ±(2%+5)
Voltage (Freq.) 0V~69kV (50Hz/60Hz)
Display mode 4 digits LCD
Jaw opening 33mm
Wireless transmission ≤30m
Over-range display OL
Test mode Clamp CT, integration
Display 47mm x 28.5mm
Product colour Red and grey

Powered by 4 x 1.5V (LR03) batteries (included)
Size 68mm x 245mm x 40mm
Weight 335g

WHAT YOU GET

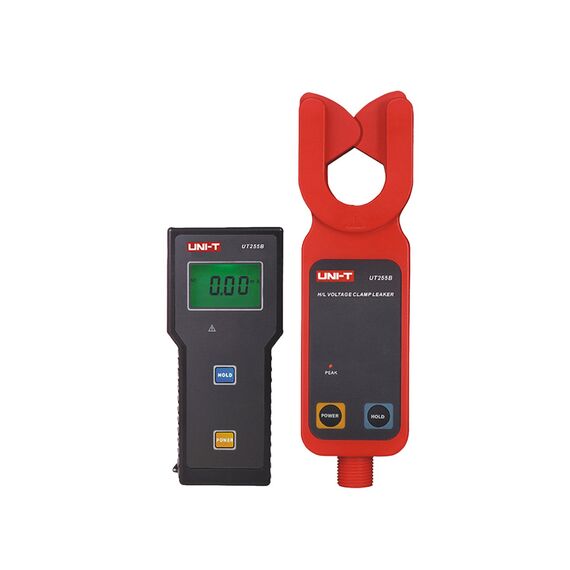

1 x Wireless High Voltage Clamp Ammeter UT255B
1 x Receiver
4 x Batteries
Insulation rod
Manual

Warranty 12 months
