Leica Disto D5 Laser Distance Meter Dust/Water Proof IP54

FEATURES
> Range up to 200 m
> ± 1.0 mm accuracy, 0.1 mm resolution
> Measuring slopes
> Smart Horizontal mode
> Fast Start-up time – ready in under 1 second

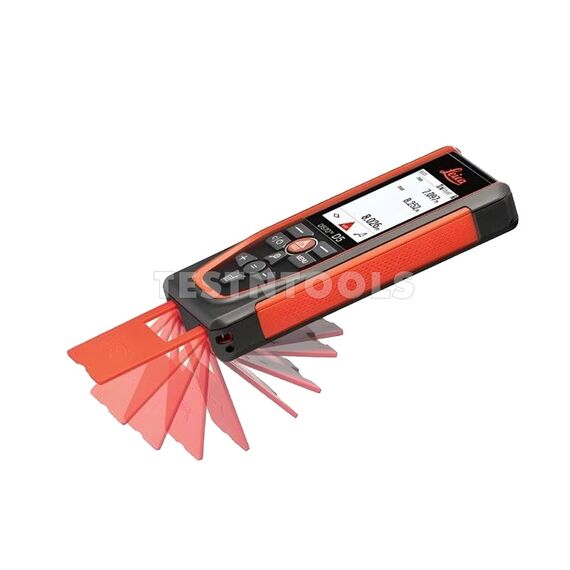

> Foldable end-piece with automatic detection
> Bright and clear 2.4” IPS display with scratch-proof lens

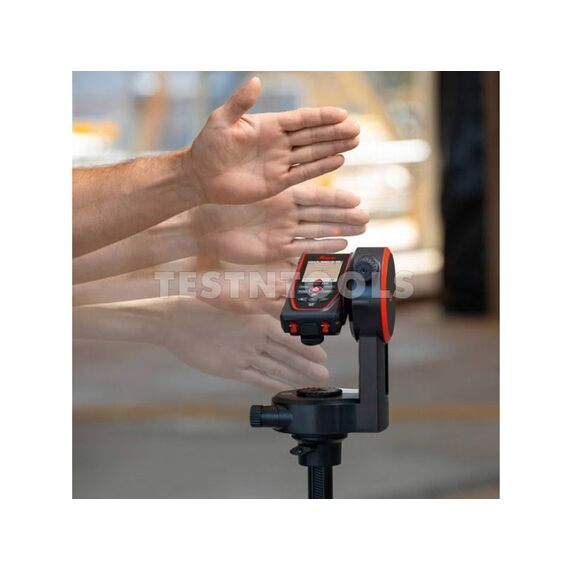

> Trigger measurements with gestures
> Memory for 50 measurements
> Li-Ion rechargeable battery
> USB-C charging
> X-Range Power Technology

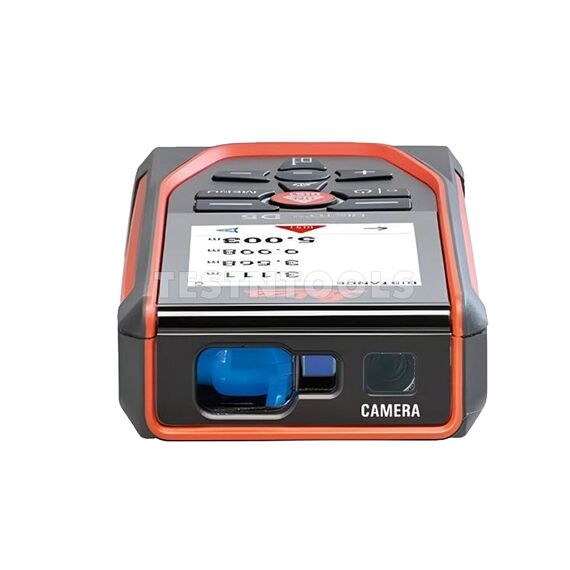

> Digital Pointfinder with 4-fold zoom
> Keyboard simulating data-transfer via Bluetooth®
> Bluetooth® 5.0 Technology for error-free data transfer
> Works with DISTO™ Plan App (iOS and Android) and DISTO™ transfer (Windows)

FUNCTIONS AVAILABLE
Distance measuring
Min/Max measuring
Permanent measuring
Stake out
Addition / subtraction
Area
Triangle area / room angle
Volume
Painter function (area with partial meas.)
Pythagoras (3-point)
Smart Horizontal Mode / Indirect height tracking
Profile measuring
Sloped objects
Level
Gesture Control
Memory
Display content rotating
Bluetooth® Smart
Personalized favourites
Timer
Beep
Illuminated colour display
Automatic multifunctional endpiece
Smart Room *

SPECIFICATIONS
Accuracy with favourable conditions * 1.0 mm / 1/16" ***
Accuracy with unfavourable conditions ** 2.0 mm / 1/8" ***
Range with favourable conditions * 0.05 – 200 m / 0.07 – 660 ft ***
Range with unfavourable conditions ** 0.05 – 120 m / 0.07 – 400 ft ***
Accuracy and Range according to ISO 16331-1 yes
Smallest unit displayed 0.1 mm / 1/32"
Laser Class 2, 635 nm, <1 mW
Tilt measuring range **** 360°
Tilt measuring tolerance ± 0.2°
ø laser point | at distances 6 / 30 / 60 mm | 10 / 50 / 100 m
Protection class IP54 (dust- and splash water protected)
Auto laser switch off after 90 s
Auto power switch off after 180 s
Bluetooth® Smart Bluetooth® v5.0
Range of Bluetooth® Smart up to 10 m
Battery durability (Li-Ion 2 000 mAh) up to 5’000 measurements /up to 10 hours operation time
Temperature range storage -25 to 70°C / -13 to 158°F | -10 to 50°C / 14 to 122°F
Dimension (L x W x H) 144 x 60 x 24mm / 5.7" x 2.4" x 0.9"
Weight 180g / 6.35 oz

WHAT YOU GET
Leica Disto D5 Laser Distance Meter
Pouch
USB-C to USB-A Cable
Hand Loop
Quick Start Guide
Warranty Card
Safety Manual
Calibration Certificate Silver

2 YEAR WARRANTY
Go to www.disto.com within 8 weeks of purchase to extend warranty to 3 years at no extra charge

Swiss Technology by Leica Geosystems
