FEATURES
> Range up to 200 m
> ± 1.0 mm accuracy, 0.1 mm resolution
> Measuring slopes
> Smart Horizontal mode
> Fast Start-up time – ready in under 1 second
> Foldable end-piece with automatic detection
> Bright and clear 2.4” IPS display with scratch-proof lens

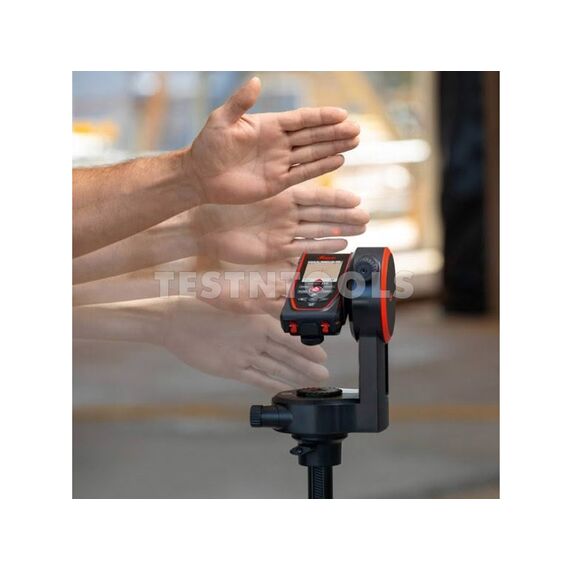

> Trigger measurements with gestures
> Memory for 50 measurements
> Li-Ion rechargeable battery
> USB-C charging
> X-Range Power Technology
> Digital Pointfinder with 4-fold zoom
> Keyboard simulating data-transfer via Bluetooth®
> Bluetooth® 5.0 Technology for error-free data transfer
> Works with DISTO™ Plan App (iOS and Android) and DISTO™ transfer (Windows)
FUNCTIONS AVAILABLE
Distance measuring
Min/Max measuring
Permanent measuring
Stake out
Addition / subtraction
Area
Triangle area / room angle
Volume
Painter function (area with partial meas.)
Pythagoras (3-point)
Smart Horizontal Mode / Indirect height tracking
Profile measuring
Sloped objects
Level
Gesture Control
Memory
Display content rotating
Bluetooth® Smart
Personalized favourites
Timer
Beep
Illuminated colour display
Automatic multifunctional endpiece
Smart Room *
SPECIFICATIONS
Accuracy with favourable conditions * 1.0 mm / 1/16" ***
Accuracy with unfavourable conditions ** 2.0 mm / 1/8" ***
Range with favourable conditions * 0.05 – 200 m / 0.07 – 660 ft ***
Range with unfavourable conditions ** 0.05 – 120 m / 0.07 – 400 ft ***
Accuracy and Range according to ISO 16331-1 yes
Smallest unit displayed 0.1 mm / 1/32"
Laser Class 2, 635 nm, <1 mW
Tilt measuring range **** 360°
Tilt measuring tolerance ± 0.2°
ø laser point | at distances 6 / 30 / 60 mm | 10 / 50 / 100 m
Protection class IP54 (dust- and splash water protected)
Auto laser switch off after 90 s
Auto power switch off after 180 s
Bluetooth® Smart Bluetooth® v5.0
Range of Bluetooth® Smart up to 10 m
Battery durability (Li-Ion 2 000 mAh) up to 5’000 measurements /up to 10 hours operation time
Temperature range storage -25 to 70°C / -13 to 158°F | -10 to 50°C / 14 to 122°F
Dimension (L x W x H) 144 x 60 x 24mm / 5.7" x 2.4" x 0.9"
Weight 180g / 6.35 oz

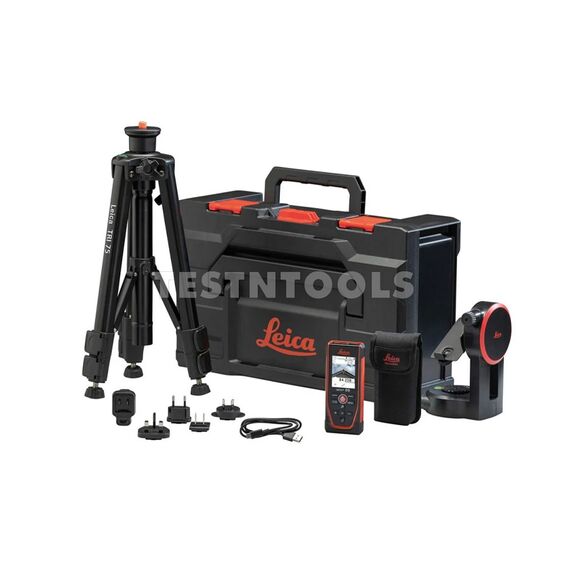

WHAT YOU GET
Leica DISTO D5 Laser Distance Meter
FTA 360 Adapter
TRI 75 Tripod
Pouch
Charger with Cable
Hand Loop
Quick Start Guide
Warranty card
Safety Manual
Calibration Certificate Silver
2 YEAR WARRANTY
Go to www.disto.com within 8 weeks of purchase to extend warranty to 3 years at no extra charge
Swiss Technology by Leica Geosystems
