Description
FEATURES
- Rugged design for tough conditions
- Drop-tested up to 2m in height, water jet and dust protected to IP 65 standards.
- Automatically rotates in line with the measurement direction.
- Designed to make indoor laser measurements an easy task.
FUNCTIONS AVAILABLE

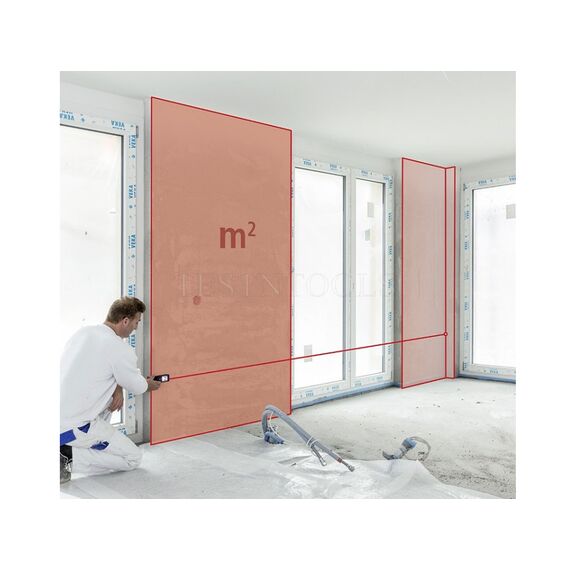

Minimum/maximum, Area/volume, Triangle/room angle, Painter function, Trapezium, Pythagoras (2 and 3 points), Inclination tracking, Sloped object measurement, Height tracking, Height profile measurements, Stake out function, Additon/subtraction
SPECIFICATIONS
Accuracy ±1.0mm
Range 0.05 up to 150m
Measuring units m, ft, in
Tilt sensor accuracy to the housing ±0.2°
Smart Base measuring range:
Horizontal 360° for use with Leica DST 360
Vertical -64° to >90° for use with Leica DST 360
Tolerance of P2P function ± 2mm at 2m, 5mm at 5m, 10mm at 10m
Levelling range 5° for use with Leica DST 360
Measurements per set of batteries up to 4'000
Service life of batteries up to 8h
Memory of last measurement 20
Protection class IP65
Batteries 2x AA Alkaline
Dimensions 132 x 56 x 29mm
Weight batteries 184g
WHAT YOU GET

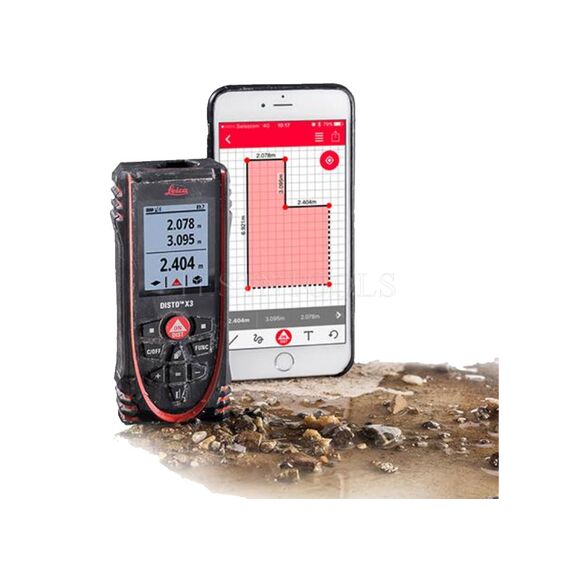

Leica Disto X3 Laser Distance Meter Dust/Water/Drop Proof IP65
Holster
Holster
Hand loop
Batteries
2 YEAR WARRANTY
Go to www.disto.com within 8 weeks of purchase to extend warranty to 3 years at no extra charge
Swiss Technology by Leica Geosystems
