FEATURES
> Package for outdoors
> Specially designed for outdoor Point-to-Point measurements, due to the digital Pointfinder camera of the DISTO™ X4
> Comes with the DST 360 adapter and the compact but sturdy tripod TRI 120
> Robust case protected to IP67 standards
> Drop-tested up to 2 m in height, water jet and dust protected.
> The Pointfinder camera allows you to precisely target and measure distant objects in bright sunlight.
> Automatically rotates in line with the orientation of the device.
> Designed to make high-precision outdoor measurements an easy task.
> Functions Available: Minimum/maximum, Area/volume, Triangle/room angle, Painter function, Trapezium, Pythagoras (2 and 3 points), Inclination tracking, Sloped object measurement, Height tracking, Height profile measurements, Stake out function, Additon/subtraction, Timer
SPECIFICATIONS
Leica DISTO X4-1 Package
Range: 0.05m to 150m
±1mm accuracy
Measuring units m, ft, in
Digital Pointfinder
360° tilt sensor
Smart Base measuring range:
Horizontal 360° for use with Leica DST 360
Vertical -64° to >90° for use with Leica DST 360
Tolerance of P2P function ± 2mm at 2m, 5mm at 5m, 10mm at 10m
Levelling range 5° for use with DST360
Measurements per set of batteries up to 4'000
Service life of batteries up to 8h
Protection class IP65
Batteries 2x AA Alkaline
Dimensions 132 x 56 x 29 mm
Weight batteries 188g

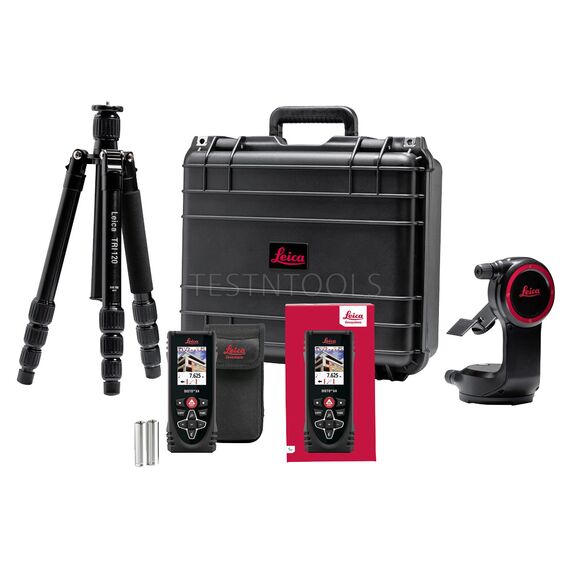

WHAT YOU GET
DISTO™ X4-1
Pouch
2 x AA Batteries
Handloop
Adapter DST 360
Tripod TRI120
Quickstart guides
Warranty cards
Safety manual
Calibration certificate silver
2 YEAR WARRANTY
Go to www.disto.com within 8 weeks of purchase to extend warranty to 3 years at no extra charge
Swiss Technology by Leica Geosystems
